IMPORTANT CHANGE FOR 330LD Reel
Change to clicker system, housing and some other parts.
Was revised in the newer models manufactured since 6/13/08.
These changes can be applied to the older reels if wished.
| 2008 Revisions NEW PARTS: | 2004 SYSTEM OLD Parts | |
|---|---|---|

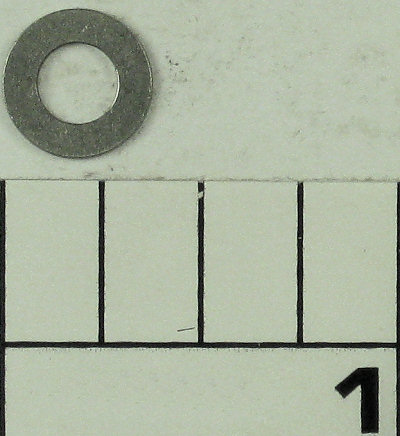

| ---- | ** 20-320LD THRUST WASHER | |
| 18-975LD CLUTCH SPRING (4) | 18-320LD CLUTCH DISC SPRING (4) | |
| 28N-330 LEFT SIDE RING | 28-330 LEFT SIDE RING | |
| 35-310N CLICK TONGUE | 35-320 CLICK TONGUE | |
| 36-330 CLICK BUTTON | 36-320 CLICK BUTTON | |
| 62A-310 CLICK SPRING (2) | 62-209 CLICK SPRING | |
| 62C-321LH CLICK SPRING COVER (2) | ---- | |
| 62S-310 CLICK PIN (2) | ---- | |
98-330LD MAIN GEAR RATCHET [discontinued no longer available] | 98-25 MAIN GEAR RATCHET | |
| 117W-330LD DRIVE PLATE WASHER | 117W-225 DRIVE PLATE WASHER | |
| 154-117 CLICK SHIM | ---- | |
| 183N-330LD FRAME All above items in 2008 column Are needed to convert to the newer system | 183-330LD FRAME | |
| OPTIONAL: 24-330LD HANDLE | 24-113HN HANDLE | |
KEY
** part removed in newer system setup
-- part did not exist in older system
How do you tell which version you have?
The quickest way to tell if you have an original run reel or one made after the design changes is to look at the housing and the left side ring. The original ring is completely flat. The newer 28N-330 ring is concave.
Once you open the reel up the design change in the clicker is more obvious. See the schematic for parts comparison.Converting
Converting to the new design is completely optional. The older system will work. You might have to make the conversion only if we run out of older parts and you need one that's missing for repairs.
You can use this page as a reference to order the parts from either system via the links above in the 2008 or 2004 columns, once you have identified which version you are working on.
