The 20-6000CV ball bearing has the same dimensions
as the 20-5000CV ball bearing and therefore, the bearings are interchangeable..
CV6000 bearing notes
This applies only to the CV6000 reel at this timePenn's original schematic had key #20 for all 3 bearings, part number 20-6000CV.
There ARE 3 different ball bearings with slightly different measurements, relevant to where in the reel they sit. Width/thickness was the most obvious difference, though one had diff id/od as well.

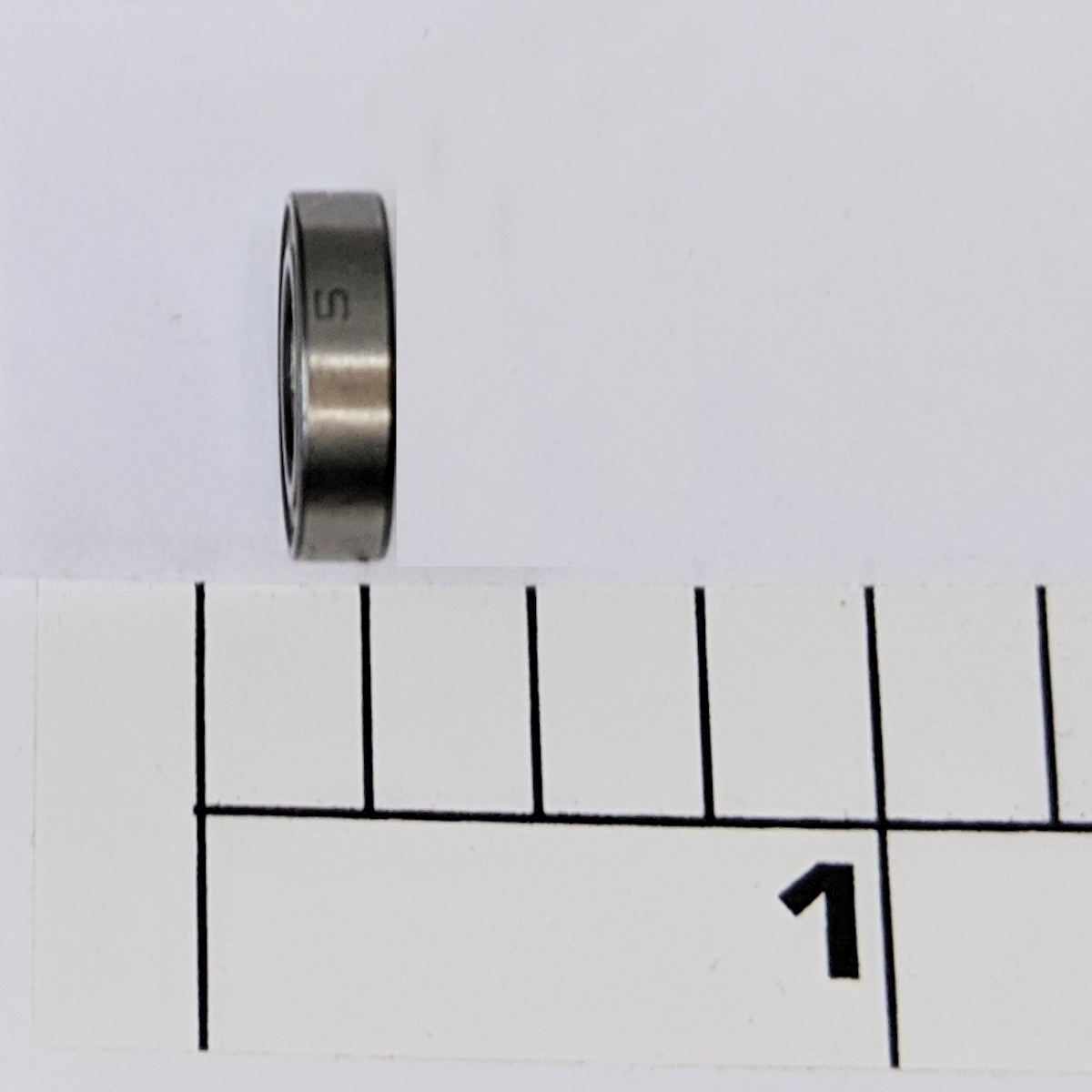

| 20-6000CV Housing ball bearing (under main gear) | |||
|---|---|---|---|
| ID | x OD | x W | |
| inches | .312 | .547 | .133 |
| mm | 7.93 | 13.92 | 3.38 |

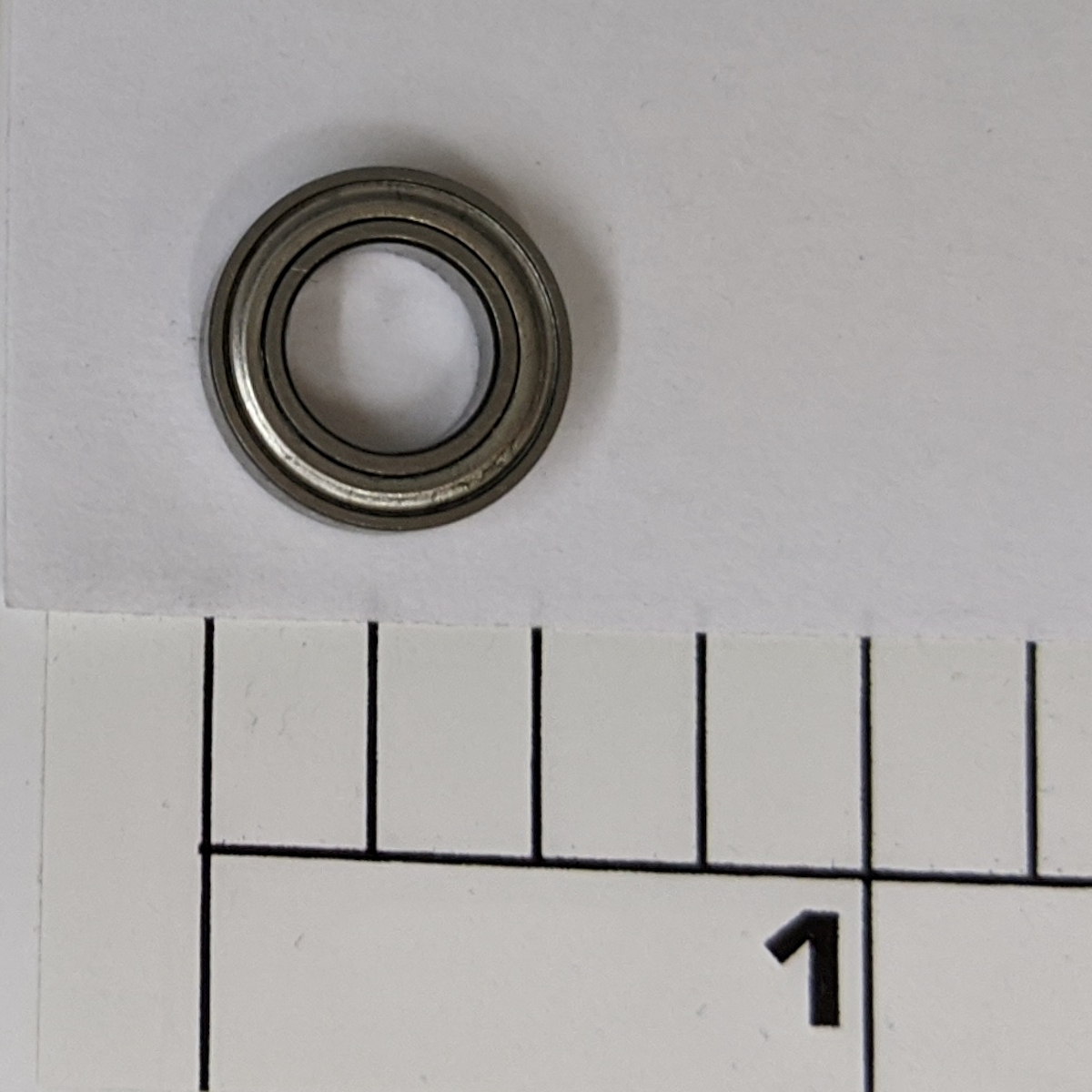

| 20A-6000CV Housing Cover ball bearing | |||
| ID | x OD | x W | |
| inches | .309 | .544 | .152 |
| mm | 7.86 | 13.86 | 3.87 |

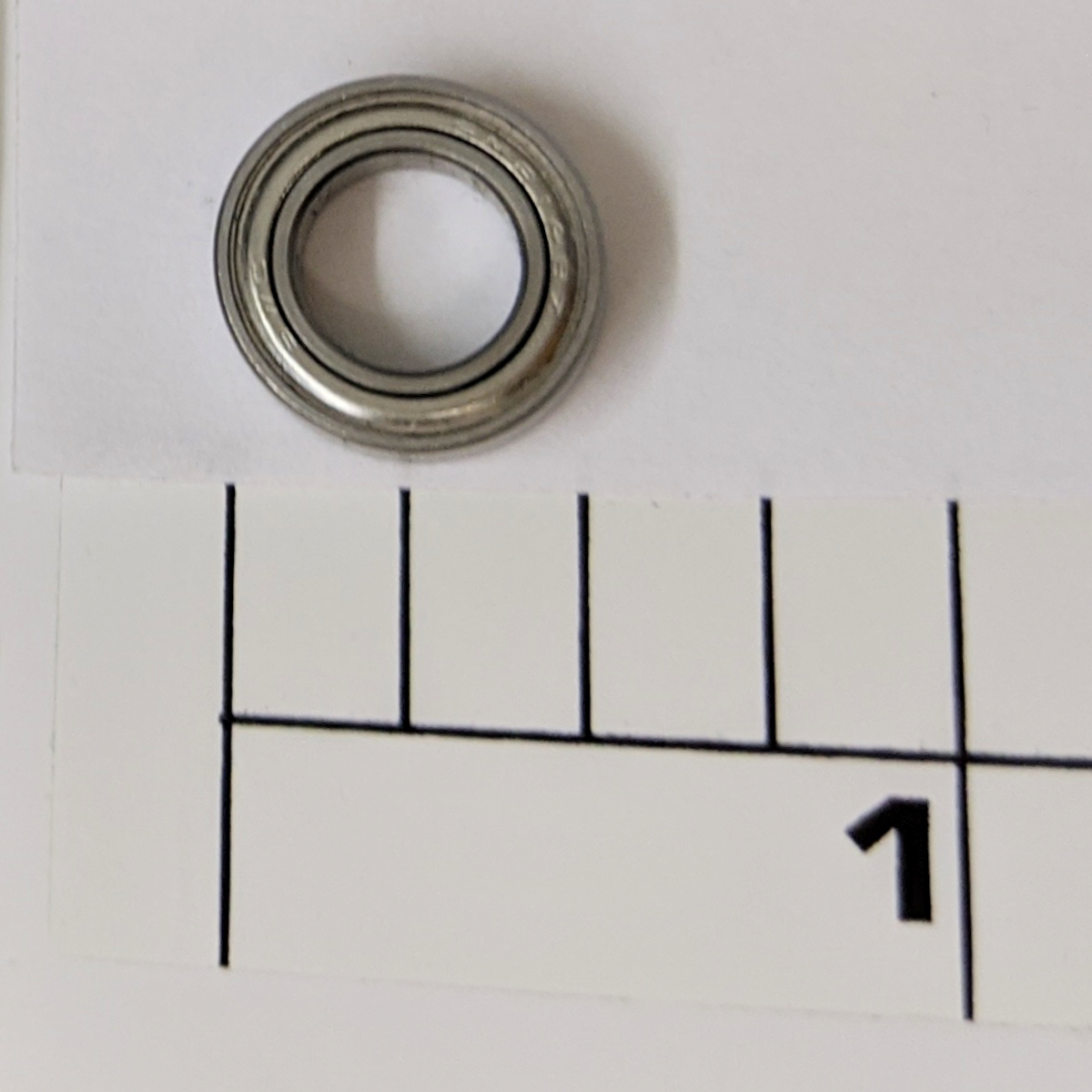

| 20B-6000CV Pinion ball bearing | |||
| ID | x OD | x W | |
| inches | .312 | .547 | .152 |
| mm | 7.93 | 13.92 | 3.88 |
