MULTI-USE IN DIFFERENT CAPACITIES
(Uses 1) Pinion Bearing
104, 104CS (Sub for 20-104 ~ 1181761)
(Uses 1) Upper Pinion Bearing:
FRCiii5000, FRCiii6000, FRCiii6000LL, FRCiii8000, FRCiii8000LL (Sub for 20-CFT5000 ~ 1308090)
FRCiV5000, FRCiV6000, FRCiV6000LL, FRCiV8000, FRCiV8000LL (Sub for 20-CFT5000 ~ 1308090)
(Uses 2) Upper & Lower Pinion Bearing:
BTL7000, BTL8000 (Sub for 20-5000SG ~ 1192613 )
BTLii8000 (Sub for 20-CFT5000 ~ 1308090)
CFT8000 (Sub for 20-CFT5000 ~ 1308090)
PURiV8000 (Sub for 20-CFT5000 ~ 1308090)
SG7000, SG8000 (Sub for 20-5000SG ~ 1192613 )
(Uses 2) Housing Bearings:
BTLii7000LC (Sub for 20-CFT5000 ~ 1308090)
CFTii4000LC, CFTii7000LC, CFTii8000LC (Sub for 20-CFT5000 ~ 1308090)
SSV7500LC
SSVi7500LC (Sub for 20-CFT5000 ~ 1308090)
(Uses 3) (1) Lower Pinion Bearing & (2) Housing Bearings:
CLAii5000 (Sub for 20-CFT5000 ~ 1308090)
(Uses 3) (1) Upper Pinion Bearing & (2) Housing Bearings:
CFTii5000LC, CFTii6000LC (Sub for 20-CFT5000 ~ 1308090)
SSVi5500LC, SSVi6500LC (Sub for 20-CFT5000 ~ 1308090)
(Uses 4) (2) Upper & Lower Pinion Bearings & (2) Housing Bearings:
BTL5000, BTL6000 (Sub for 20-5000SG ~ 1192613)
BTLii5000, BTLii6000 (Sub for 20-CFT5000 ~ 1308090)
BTLiii5000, BTLiii5000DX, BTLiii6000, BTLiii6000DX, BTLiii6000HS (Sub for 20-CFT5000 ~ 1308090)
CFT5000, CFT6000 (Sub for 20-CFT5000 ~ 1308090)
CFTii5000 (Sub for 20-CFT5000 ~ 1308090)
CLA5000, CLA6000 (Sub for 20-CFT5000 ~ 1308090)
PAS5000 (Sub for 20-CFT5000 ~ 1308090)
PURiV5000, PURiV6000 (Sub for 20-CFT5000 ~ 1308090)
SG5000, SG6000 (Sub for 20-5000SG ~ 1192613 )
SLA5500, SLA6500, SLA6500HS (Sub for 20-CFT5000 ~ 1308090)
SLAiV5500, SLAiV5500BLS, SLAiV5500DX, SLAiV6500, SLAiV6500DX, SLAiV6500HS (Sub for 20-CFT5000 ~ 1308090)
SSV5500, SSV6500, SSV6500BLS, SSV6500LL
SSVi5500, SSVi6500, SSVi6500BLS, SSVi6500LL (Sub for 20-CFT5000 ~ 1308090)
COMPATABILITY
These bearings are the same size and completely interchangeable:
20-CFT5000 ~ 1308090 (Blue Plastic Seal)
20A-SSV5500 ~ 1277042 (Full Metal Shielding)
20-5000SG ~ 1192613 (Black Plastic Seal)

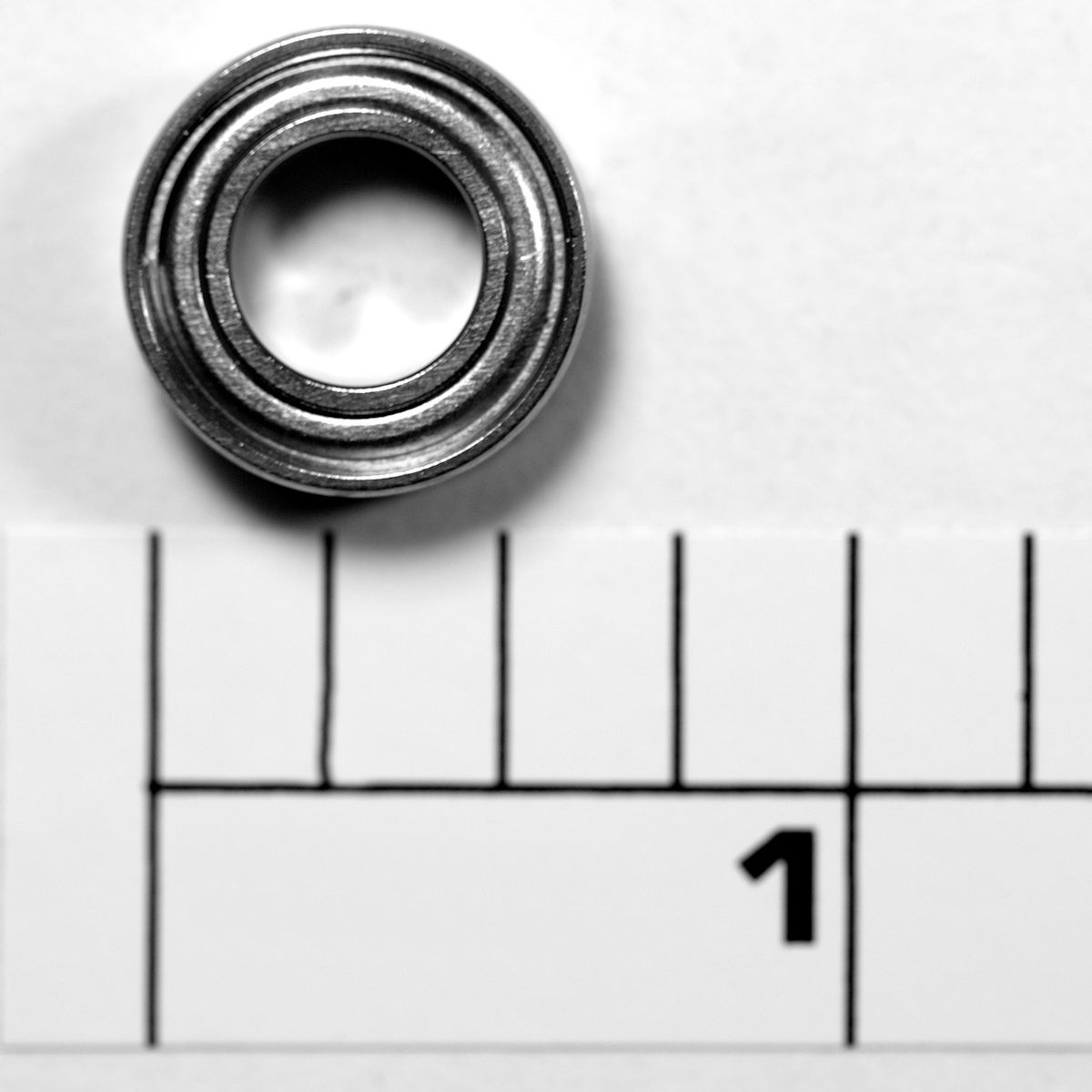

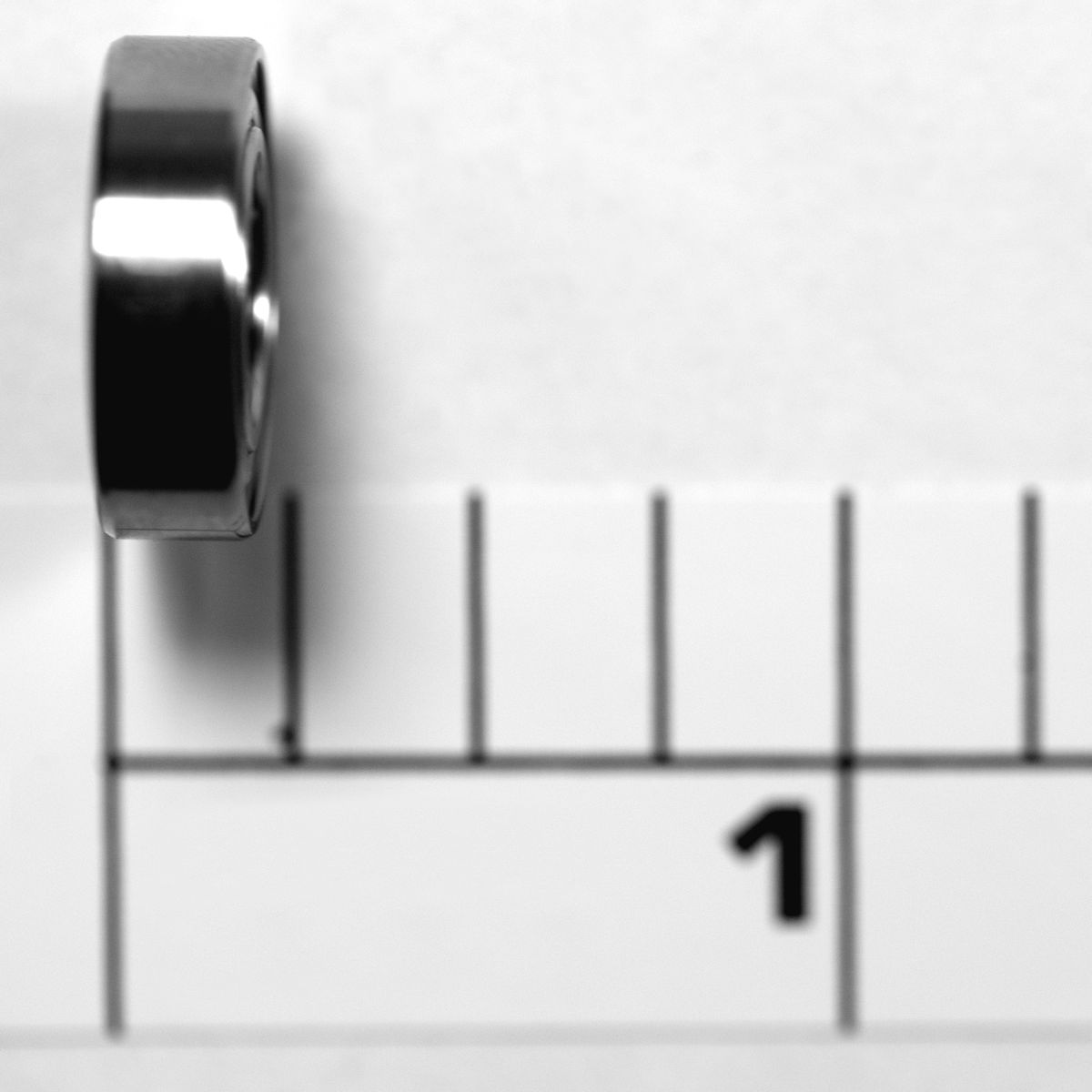

MEASUREMENT
ID: |
OD: |
THK: |
|---|---|---|
0.355" |
0.669" |
0.195" |
