NOTES:
This bridge is used in a LEFT HAND reel.
The gear stud has LEFT HAND threads and uses the LEFT HAND star part number 10-60LH
98-60 Coarse Thread using 10-60 Star on 500
98-505 Fine Thread using 10-505 Star on 500S
98-60LH Coarse Left Hand Thread using 10-60LH Star on both LH reels.
NOTE:
The fine threaded sleeve and star from the 505 series reels can be used on the 500 reels.
Thread must ALWAYS match the star used.
The gear stud has LEFT HAND threads and uses the LEFT HAND star part number 10-60LH

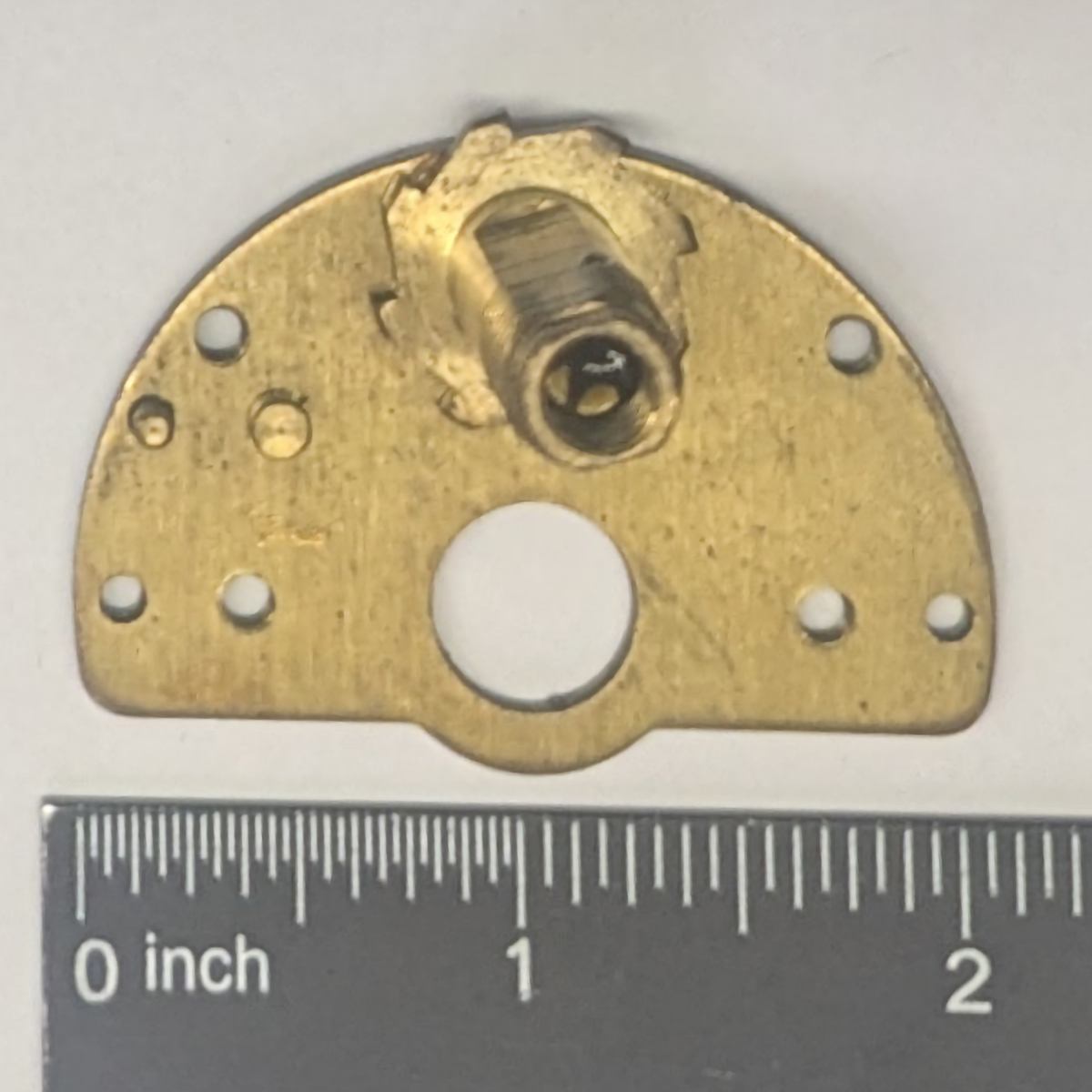

Jigmaster 500 size reels BRIDGE PLATE

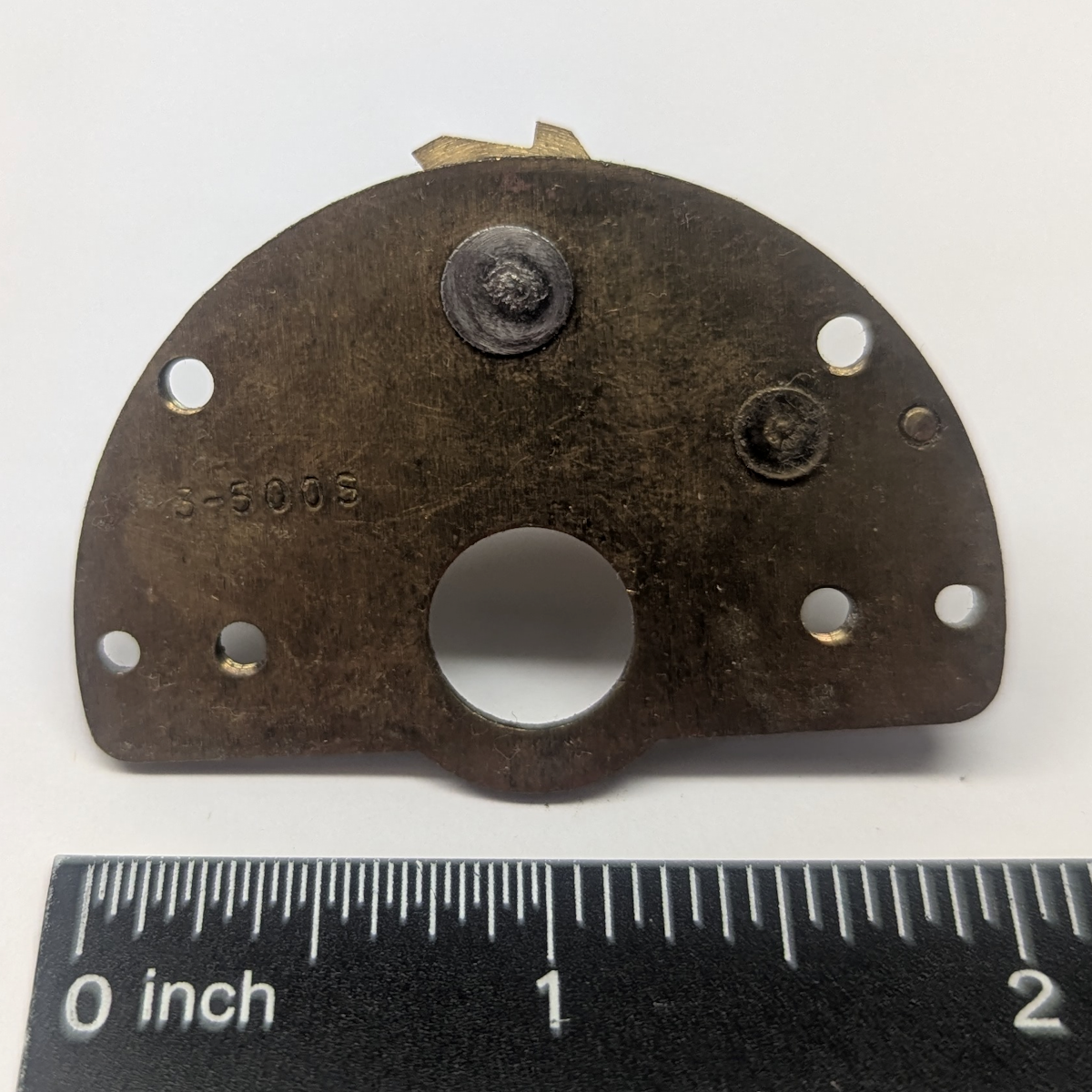

All use the SAME bridge plate stamped "3-500S"
The difference between 500, 500S, 500-LH, 500S-LH Was all determined by the 98 sleeve installed on the bridge:
The fine threaded sleeve and star from the 505 series reels can be used on the 500 reels.
Thread must ALWAYS match the star used.
