IMPORTANT!
Not all of the reels use the same stud/nut sets with this clamp
so be careful when matching up individual pieces.
For larger reels we recommend using the iron or aluminum clamps
as they are stronger under torque/pressure than the graphite, therefore we are not linking the GRAPHITE clamps to any of the international reels larger than a 300LD or 975 baitcast.
Reels list below for studs/nuts updated 10/8/2018
Not all of the reels use the same stud/nut sets with this clamp
so be careful when matching up individual pieces.

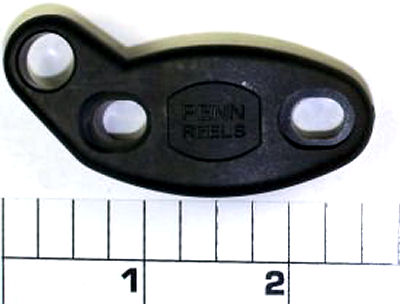

Interchangeable Thick Clamps
In this size:33-113 Graphite
33N-113 Graphite with side ring
33-16S ??? Did this ever exist?
33-16VS Cast Iron alloy with side ring
33-TRQ Aluminum
Black
33-TRQS Aluminum
Silver
See schematics of each reel to find the default clamp info.
RECOMMENDATION:
For larger reels we recommend using the iron or aluminum clampsas they are stronger under torque/pressure than the graphite, therefore we are not linking the GRAPHITE clamps to any of the international reels larger than a 300LD or 975 baitcast.
Reels list below for studs/nuts updated 10/8/2018
| Using 34C-45 Stud/Nut Set Qty (2) FITS REELS: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 25GLS 45GLS 66 67 68 111 112 112H 113 113-LH | 113H 113H-LH 113HL 113HLW 113HSP 140L 140L-LH 145 146L 209LC 209M | 209M-LH 210M 225LD 245LD 246LD 267 268 309M 310GT 310GT2 | 310GT2LC 320GT 320GT2 320GT2LC 320LD 321GT-LH 321GT2-LH 330GT 330GT2 330LD 500 500L-LH | 500S 505HS 525GS 515MAG2 525MAG 525MAG-T 525MAG2 535GS 535MAG 545GS 545MAG 555GS 555MAG 895LC | FTH15LW FTH15LD2 FTH15NLD FTH20LW FTH20LW-LH FTH25LW FTH25LW-LH FTH25NLD FTH25NLD2 FTH25NLD2LH FTH30LD FTH30LDLH FTH30LD2 FTH30LD2LH FTHII30LWLH FTH40NLD FTH40NLDHS FTH40NLD2 FTH60LDHS FTH60LD2 FTHSD12 FTHSD15 FTHSD25N FTHSD30 FTHSD40 FTHII15LW FTHII15LWLH FTHII15LWLC FTHII15LWLCLH FTHII20LW FTHII20LWLH FTHII20LWLC FTHII20LWLCLH FTHII30LW FTHII30LWLH FTHII30LWLC FTHII30LWLCLH FTHII50LW | RVL15LW RVL15LWLH RVL15LWLC RVL15LWLCLH RVL20LW RVL20LWLH RVL20LWLC RVL20LWLCLH RVL30LW RVL30LWLH RVL30LWLC RVL30LWLCLH | SQL12 SQL15 SQL25N SQL30 SQL30LD SQL40 SQL40LD SQL15LW SQL20LW SQL20LWLC SQL20LWLH SQL30LW SQL30LWLH | TRQ25B TRQ25BEU TRQ25G TRQ25NB TRQ25NG TRQ25NEU TRQ30B TRQ30BEU TRQ30G TRQ40B TRQ40BEU TRQ40G TRQ15LD2G TRQ25NLD2G TRQ30LD2G TRQ40NLD2G |
WAR15LW WAR15LWLC WAR15LWLCLH WAR15LWLH WAR20LW WAR20LWLC WAR20LWLCLH WAR20LWLH WAR20N WAR30 WAR30LW |
| FITS REELS: | |||||||
|---|---|---|---|---|---|---|---|
| Uses 34-975 Studs (2) with 149-45 Long Nuts (2) | Uses QTY (2) 34C-114HLW Stud/Nut Sets | Uses QTY (2) 34C-16VS Stud/Nut Sets | Uses 34-10KG Studs (2) with 149-45 Long Nuts (2) | Uses TWO KINDS 34-45 (2) AND 34-TRQ15 Studs (2) with 149-TRQ15 Long Nuts (2) AND 149-200 Hex Nuts | Uses TWO KINDS of Studs 34-975 regular (2) AND 34-113HN longer (Optional) (2) with TWO KINDS of long nuts: 149-45 regular (2) AND 149-113HN longer Optional (2) | Uses 34-FTHiiLD2 Studs (2) with 149-45 Long Nuts (2) | Uses 34-TRQ15XNLD2 Studs (2) with 149-TRQ15 Long Nuts (2) |
| 10KG 10LD 975 975CS 975CSLD 975LD | 12LT12V 12VS 16S | 12VI 12VIS 12VISX 12VISXS 16VIS 16VISS 16VISX 16VISXS 12VSX 16VS 16VSX 113MTL TRQ100 TRQ200 TRQ300 TRQ300LD | GLD20 GLD20ii | TRQ12B TRQ12BEU TRQ12G TRQ15B TRQ15BEU TRQ15G | US113 US113N US113W | FTHii15LD FTHii25NLD FTHii30LD FTHii40NLD FTHii40NLDHS FTHii60NLDHS FTHii15LD2 FTHii25NLD2 FTHii25NLD2LH FTHii30LD2 FTHii30LD2LH FTHii40NLD2 FTHii40NLD2LH FTHii60NLD2 FTHii80LD2 | FTHII15XNLD2 FTHII15XNLD2LH TRQ15XNLD2G TRQ15XNLD2S |
Related Products
33-16VS Clamp, Rod Clamp with Ring (Thick) (Iron Alloy) (Grey)
REPLACES ORIGINAL NUMBERS 33-16S, 33-TRQS ON SOME REELS
