NOTE::
RARE Early versions of the listed International reels (see dropdown menu) and 12LT use this 7/32" stud.

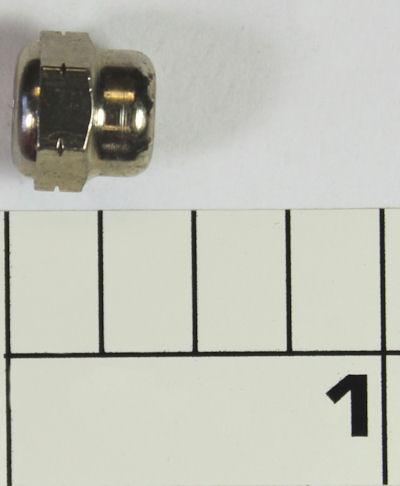

Match with two 152A-30T acorn nuts. Be careful not to order these by mistake!
IF YOU SUSPECT YOU MIGHT HAVE THE OLDER STUDS, MEASURE THE DIAMETER OF YOUR EXISTING STUDS TO CHECK.
Most other internationals use the standard 34-50T stud, 152A-50T nut or 34C-50T stud/nut as shown on the schematic.
Most 12LT's use the standard 34-114HLW stud, or 34C-114HLW stud/nut as shown on the schematic. The 34-114HLW is a shorter, thinner stud is used with the long nut 149-45 and the thicker graphite 33N-113 clamp.
Measurements:
34-30T 7/32" diameter threaded head, 7/32" thinner stud 1 5/8" long (uses 152A-30T nut) (34C-30T stud/nut)
34-50t 1/4" diameter threaded head, thicker stud (uses 152A-50T nut) (34C-50T stud/nut) STANDARD ON MOST 30TW REELS
34-114HLW 8/32" diameter threaded head, 5/32" thinner short stud 1 3/16" long (uses 149-45 long nut) (34C-114HLW stud/nut)
Match with two 152A-30T acorn nuts. Be careful not to order these by mistake!
IF YOU SUSPECT YOU MIGHT HAVE THE OLDER STUDS, MEASURE THE DIAMETER OF YOUR EXISTING STUDS TO CHECK.
Most other internationals use the standard 34-50T stud, 152A-50T nut or 34C-50T stud/nut as shown on the schematic.
Most 12LT's use the standard 34-114HLW stud, or 34C-114HLW stud/nut as shown on the schematic. The 34-114HLW is a shorter, thinner stud is used with the long nut 149-45 and the thicker graphite 33N-113 clamp.
Measurements:
34-30T 7/32" diameter threaded head, 7/32" thinner stud 1 5/8" long (uses 152A-30T nut) (34C-30T stud/nut)
34-50t 1/4" diameter threaded head, thicker stud (uses 152A-50T nut) (34C-50T stud/nut) STANDARD ON MOST 30TW REELS
34-114HLW 8/32" diameter threaded head, 5/32" thinner short stud 1 3/16" long (uses 149-45 long nut) (34C-114HLW stud/nut)
