REPLACES OLD part # 34-20 on some international reels

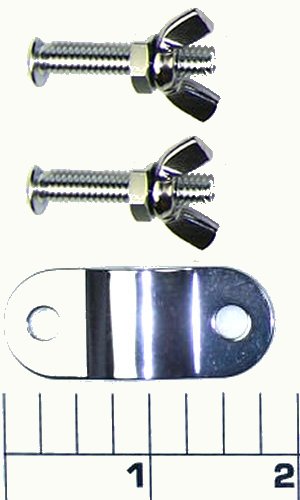

USED WITH 33-49 clamp, 149-200 nut, 152-200 wing nut
On 6, 12, 12W, 20, 49L, 49L-LH, 100M, 110, 130 Sailfisher, 146L, 349, 349H, 349HC, 501, 506HS, 970
USED WITH OPTIONAL THICKER CLAMPS 33-16VS, 33-113, 33N-113 clamp, 149-200 nut, 149-45 long nut (instead of wing nut)
On 6, 12, 12W, 20, 49L, 49L-LH, 100M, 110, 130 Sailfisher, 146L, 349, 349H, 349HC, 501, 506HS, 970
USED WITH 33-114 clamp, 149-200 nut, 152A-40 acorn nut
On 50 International
INSTALLATION NOTES

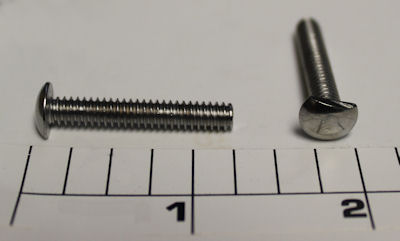

The stud head has a FLAT EDGE. This should be positioned outwards towards the sides of the reels for a solid fit. Turning it any other way will push the stud out of alignment with the clamp. (Applies to studs 34-49, 34-45, 34-200)
