READ ME:
On Older reels originally using 36/1-50 or 36-50 clicker button, the new style button 36N-50 will not fit.

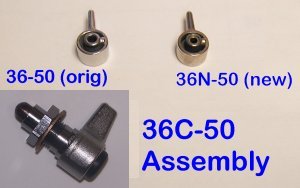

Compare your clicker button to the image.

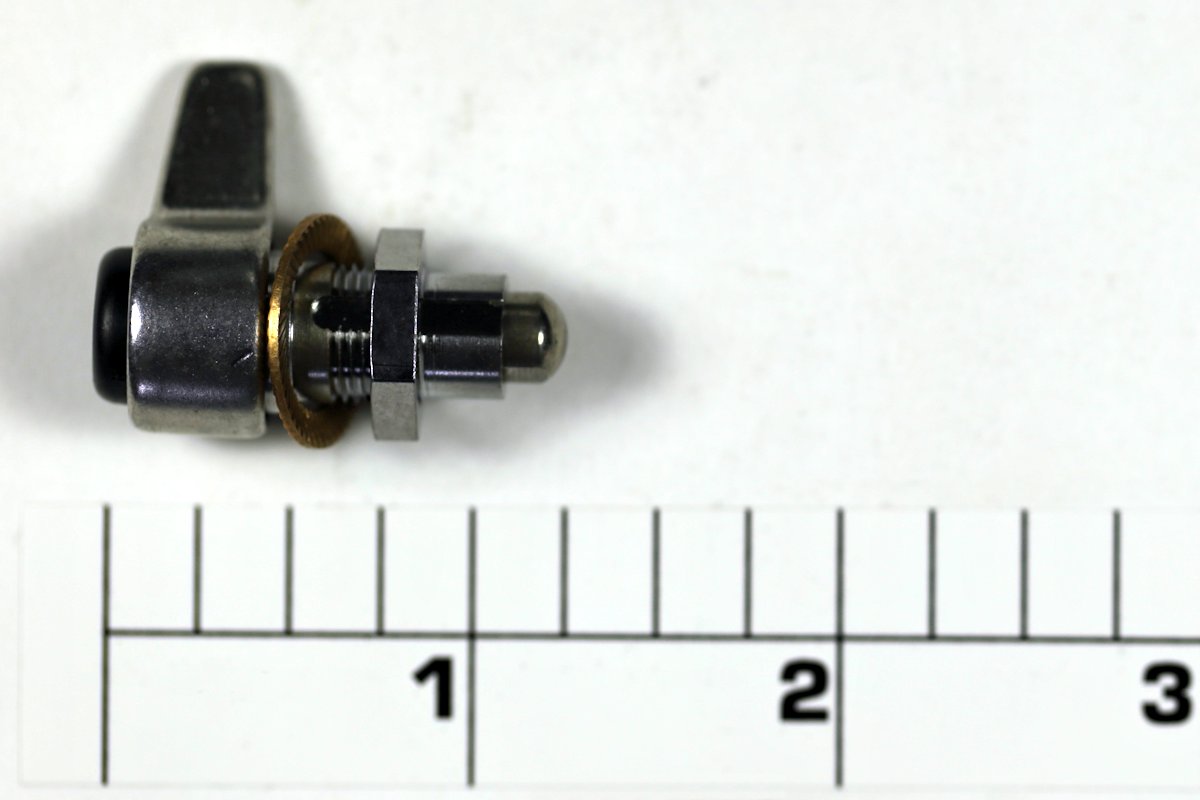

If it is the older style with the wider inside diameter, you will need to use this part number 36C-50 (now in matte finish, not chrome) if you need a new clicker button
Kit Contains:
(In the order as shown on a 50T Schematic) |
Key # | Part # |
36S | 36S-80ST CLICK BUTTON CAP |
36A | 36-700 CLICK BUTTON NUT |
36 | 36N-50 CLICK BUTTON (Newer Design) |
95 | 95-50 CLICK TONGUE BUSHING |
62 | 62-50 CLICK SPRING |
35 | 35-50N CLICK TONGUE (Newer Design) |
95C | 95A-50 CLICK BUSHING WASHER |
95A | 95A-20 CLICK BUSHING WASHER |
38A | 38-710 CLICK BUSHING NUT |
