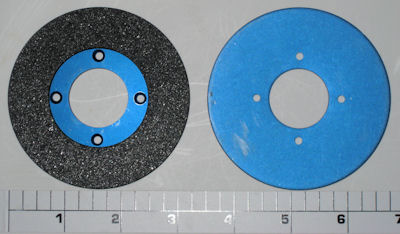

NOTE: Photo is actually a Smoothdrag version of this washer rather than the Penn
Chart
Click to view a .pdf table
showing the changes
in each generation of the
Penn drags for these reels.
IMPORTANT FOR 50, 50W:
PENN replaced this original 6-50 asbestos drag washer with (6/1-50) then (6A-50), both used with drive plates (117-50) for the international series reels, then later on replaced those entirely with a combined drive plate, model #117DN-50.
The 6A-50 replaced the old #6/1-50
IMPORTANT INFO FOR 80, 80W, 80S, 80SW: PENN replaced the drag washer and drive plates for the newer international series reels with a combined drive plate. Penn did not manufacture a combined drive plate specifically for the older 80, 80W, 80S or 80SW reels.
IF YOU NEED THE DRAG WASHER: Our parts dept. at www.mysticparts.com has found that:
The 117DN-50 drive plate works as a substitute for the 117-80 plate with 6A-50 washer used on the 80 and 80W
The 117DN-50 drive plate works as a substitute for the 117-80S plate with 6A-50 washer used on the 80S and 80SW.
The 117AN-80T drive plate works as a substitute for the 117A-80 plate with 6A-50 washer, which is used on the 80, 80W, 80S and 80SW. (The outside diameter is about 1/8" smaller but it will function).
IMPORTANT FOR 80ST, 80STW:
Combined drive plate #117AN-80T replaces the original 117A-80/6A-50 washer
Combined drive plate #117N-80ST replaces 117-80S plate with 6A-60 washer
This screen is for ordering 6/1-50ASB (Asbestos) ONLY, New Old Stock - Never Used
