REPLACES PART NUMBER 8-9500
TECHNICAL ADVISORY for the 9500SS reel ONLY:
If you are changing from original parts on the 9500ss (8-9500, 19-9500) to new series parts (8N-9500, 19N-9500), it is NECESSARY to change BOTH the main gear and the pinion gear.
If one or the other requires replacement due to wear, it is strongly recommended to change both the main gear and the pinion gear, even if both are the newer type. The wear on one part usually equates to equal wear of the other part.

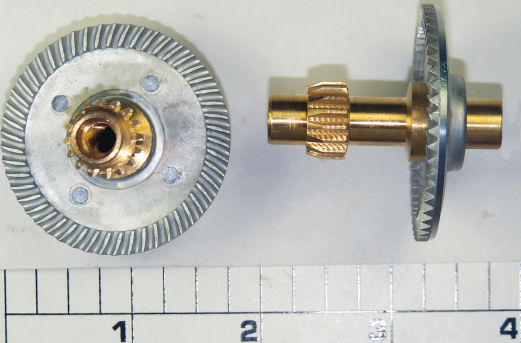

Please match your part to the image above to make sure you are ordering the correct part for your version of the 9500ss reel.
THIS DOES NOT APPLY TO THE 950SSm REEL which uses 8N-9500 with the 19-950M pinion
Grinding Gears:
Sometimes there is too much play on the main gear handle shaft which can result in the gears grinding. Some reels don't need a shim, others may need 1 to 3, it varies by each individual reel. 8A-7000CQ can be used on this gear, as well was optional shims below.
SHIMS INTERCHANGABLE. DIFFERENT THICKNESSES:
Thinnest to thickest:
8A-7000CQ Aluminum MM .08 T x 12.64 OD x 10 ID
8A-7000SG Aluminum MM .08 T x 13.96 OD x 10.10 ID
8A-7000FRC Brass MM .18 T x 13.96 OD x 10.10 ID
8A-7000PUR Brass MM .18 T x 13.92 OD x 10.10 ID
8A-7000BTL Brass MM .47 T x 13.96 OD x 10.10 ID
