Design Change for all Pursuit reels, the Drag Knob & Spool Shaft
There is a difference between what shaft is in the early run reels and what Penn put on the schematic.
You can visibly see the difference in the threads, and the drag knobs ARE ALSO DIFFERENT from what was on the reel originally. Penn made a design change.
There are distinct threads for part type:
SG parts are COARSE threads.
PUR parts are FINE threads. With one exception (some 5000PUR knobs had coarse
Your Pursuit reel could have EITHER type in it, use the sample photos below to compare what you have to the types available.
It is recommended if you cannot tell the difference, to change both shaft and drag knob at the same time.
Sample shown in photo is the drag knobs from the PUR4000/3000.

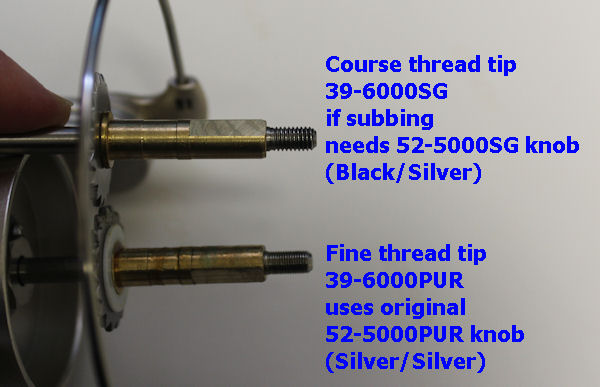

Sample shown in photo comparing the 6000 size shaft threads to show the difference in the threading.
Notes For Ordering The Parts Below:
To Order: Click on LINKED part number(s), to go to their individual ordering pages, then enter the quantity you would like to purchase, then "Add To Cart". This allows you the option of only ordering the parts that you need to replace.
Buy Together (MATCH THE THREADS!)
PUR3000 Buy Together (MATCH THE THREADS!)
NOTE: ONLY FINE THREADING IS AVAILABLE TO ORDER:
39-3000PUR Shaft, Spool Shaft (FINE Thread) (PUR3000)
52-3000PUR Knob, Drag Knob Assembly (TWO Thread Types) (PUR3000, FINE)
39-3000PUR Shaft, Spool Shaft (Coarse Thread) (PUR3000) **NOT AVAILABLE **
52-3000PUR Knob, Drag Knob Assembly (TWO Thread Types) (PUR3000, COARSE) **NOT AVAILABLE **
PUR4000 Buy Together (MATCH THE THREADS!)
39-4000PUR Shaft, Spool Shaft (FINE Thread) (PUR4000)
(If not available, this FINE shaft can also be subbed to 39-4000FRC which is also FINE threaded)
52-3000PUR Knob, Drag Knob Assembly (TWO Thread Types) (PUR4000, FINE)
39-4000SG Shaft, Spool Shaft (COARSE Thread) (PUR4000 )
52-3000SG Knob, Drag Knob (COARSE Thread) (PUR4000) **NOT AVAILABLE **
PUR5000 Buy together (MATCH THE THREADS!)
39-5000PUR Shaft, Spool Shaft (FINE Thread) (PUR5000)
52-5000PUR Knob, Drag Knob Assembly (TWO Thread Types) (PUR5000, FINE)
39-5000SG Shaft, Spool Shaft (COARSE Thread) (SG5000)
52-5000PUR Knob, Drag Knob Assembly (TWO Thread Types) (PUR5000, COARSE) **NOT AVAILABLE **
PUR6000 Buy Together (MATCH THE THREADS!)
39-6000PUR Shaft, Spool Shaft (FINE Thread) (PUR6000) **NOT AVAILABLE **
52-5000PUR Knob, Drag Knob Assembly (TWO Thread Types) (PUR6000, FINE)
39-6000SG Shaft, Spool Shaft (COARSE Thread) (PUR6000)
52-5000SG Knob, Drag Knob Assembly (TWO Thread Types) (PUR6000, COARSE)
PUR7000 and PUR 8000 Buy together (MATCH THE THREADS!)
39-7000PUR Shaft, Spool Shaft (FINE Thread) (PUR7000)
52-7000PUR Knob, Drag Knob Assembly (TWO Thread Types) (PUR7000, FINE)
NOTE THIS SCREEN IS NOT FOR ORDERING, USE THE LINKS
