Penn Slammer IV DX Series

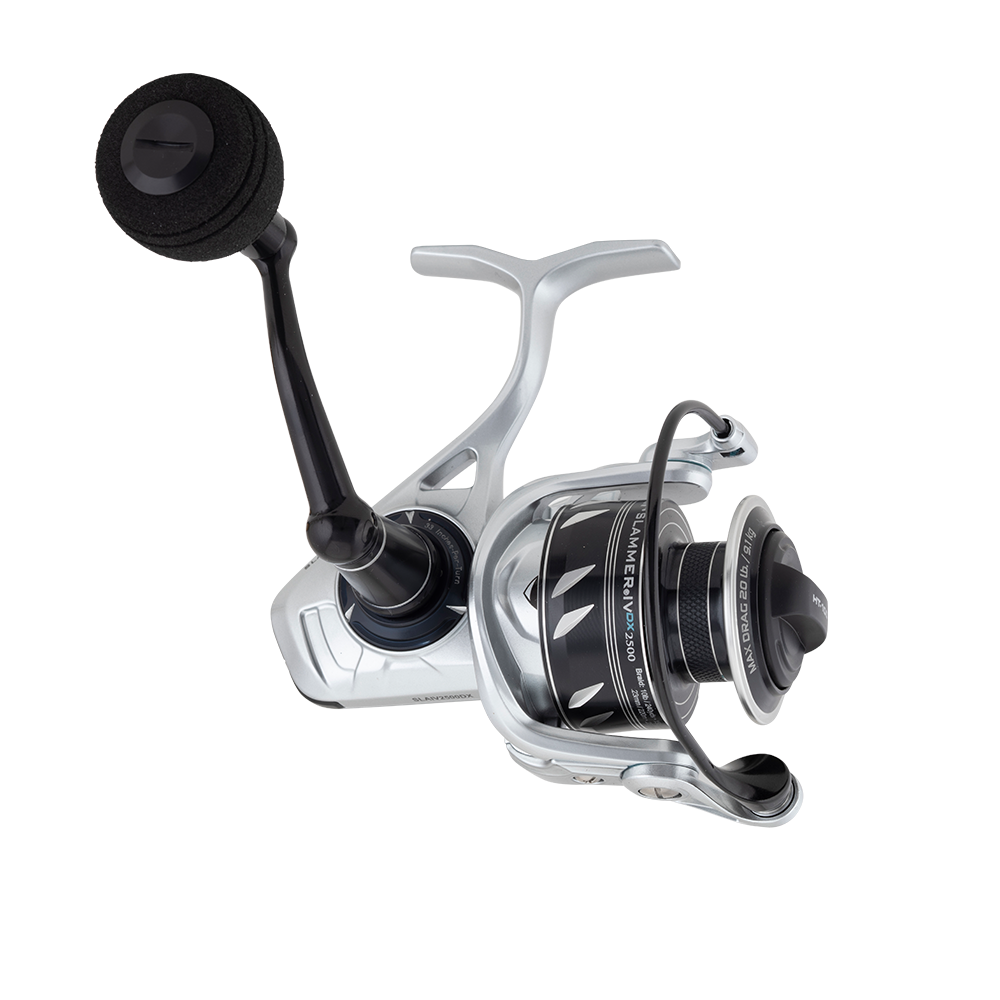

SLAiv2500DX (sku 1545772) (automatic bail trip) (HT-100 Drag) |
Mono Cap (yds/lb) 255/6 175/8 140/10 |
Braid Cap (yds/lb) 240/10 220/15 160/20 |
Bearings 9 |
Max Drag 20lb | 9.0kg |
Gear Ratio 6.2:1 |
Line Retrieve 33" | 84cm |
Weight (oz) 11 |
First Year 2022 |
Year Disc. -- |

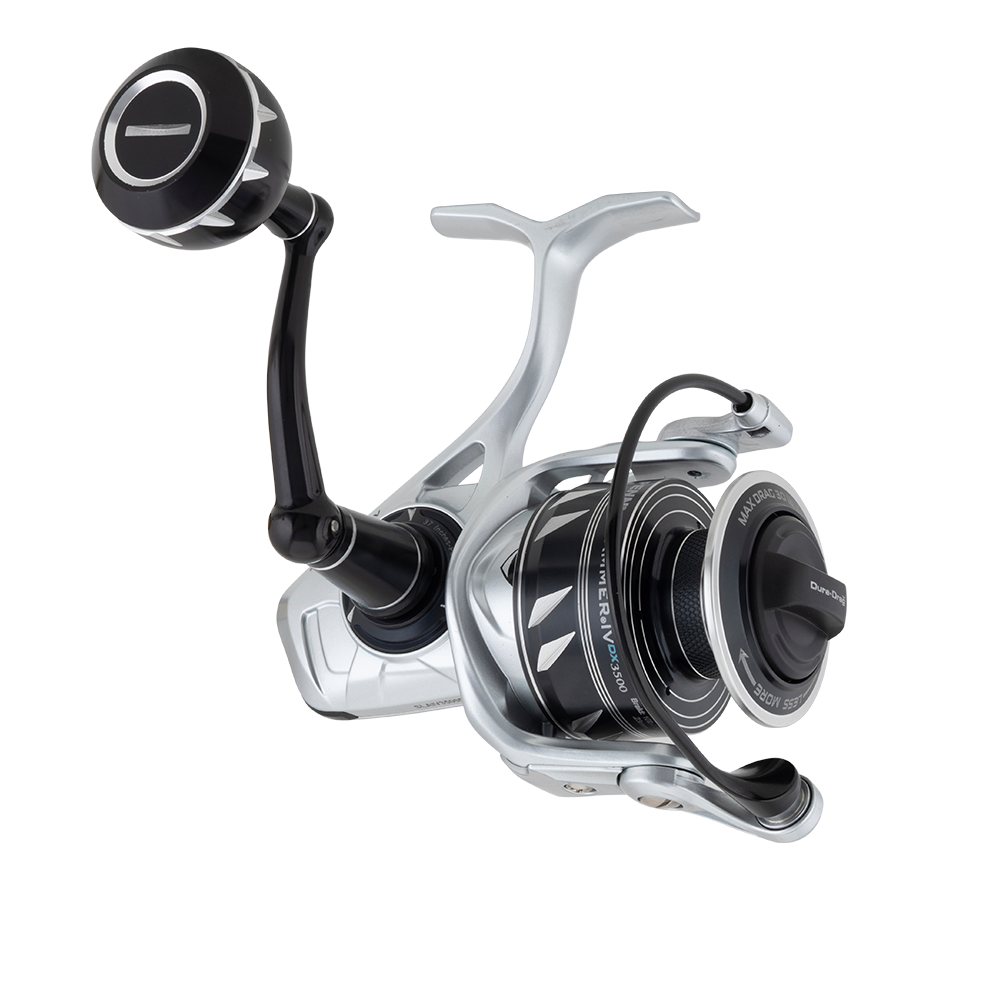

SLAiv3500DX (sku 1545773) (automatic bail trip) (Dura-Drag) |
Mono Cap (yds/lb) 360/6 285/8 220/10 |
Braid Cap (yds/lb) 310/10 270/15 220/20 |
Bearings 9 |
Max Drag 30lb | 13.6kg |
Gear Ratio 6.2:1 |
Line Retrieve 37" | 94cm |
Weight (oz) 13.9 |
First Year 2022 |
Year Disc. -- |

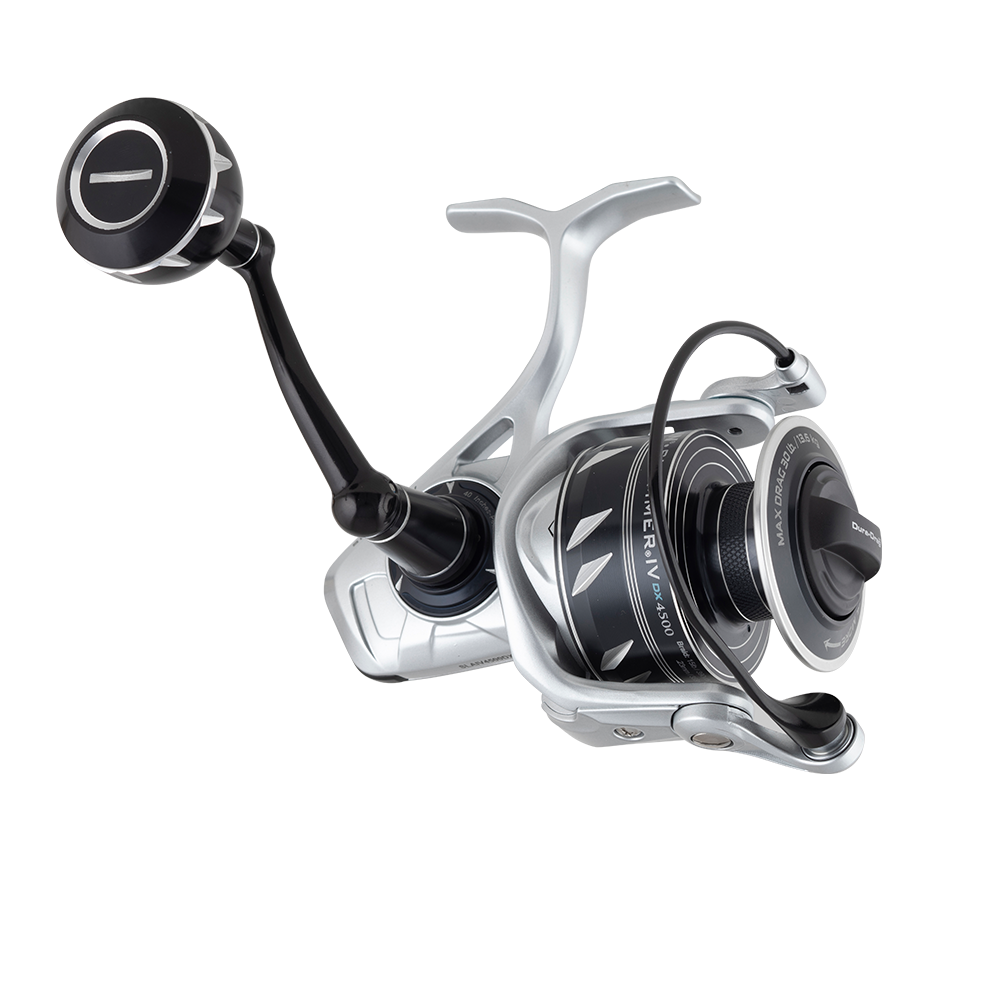

SLAiv4500DX (sku 1545774) (automatic bail trip) (Dura-Drag) |
Mono Cap (yds/lb) 425/8 320/10 235/12 |
Braid Cap (yds/lb) 390/15 320/20 250/30 |
Bearings 9 |
Max Drag 30lb | 13.6kg |
Gear Ratio 6.2:1 |
Line Retrieve 40" | 102cm |
Weight (oz) 15 |
First Year 2022 |
Year Disc. -- |

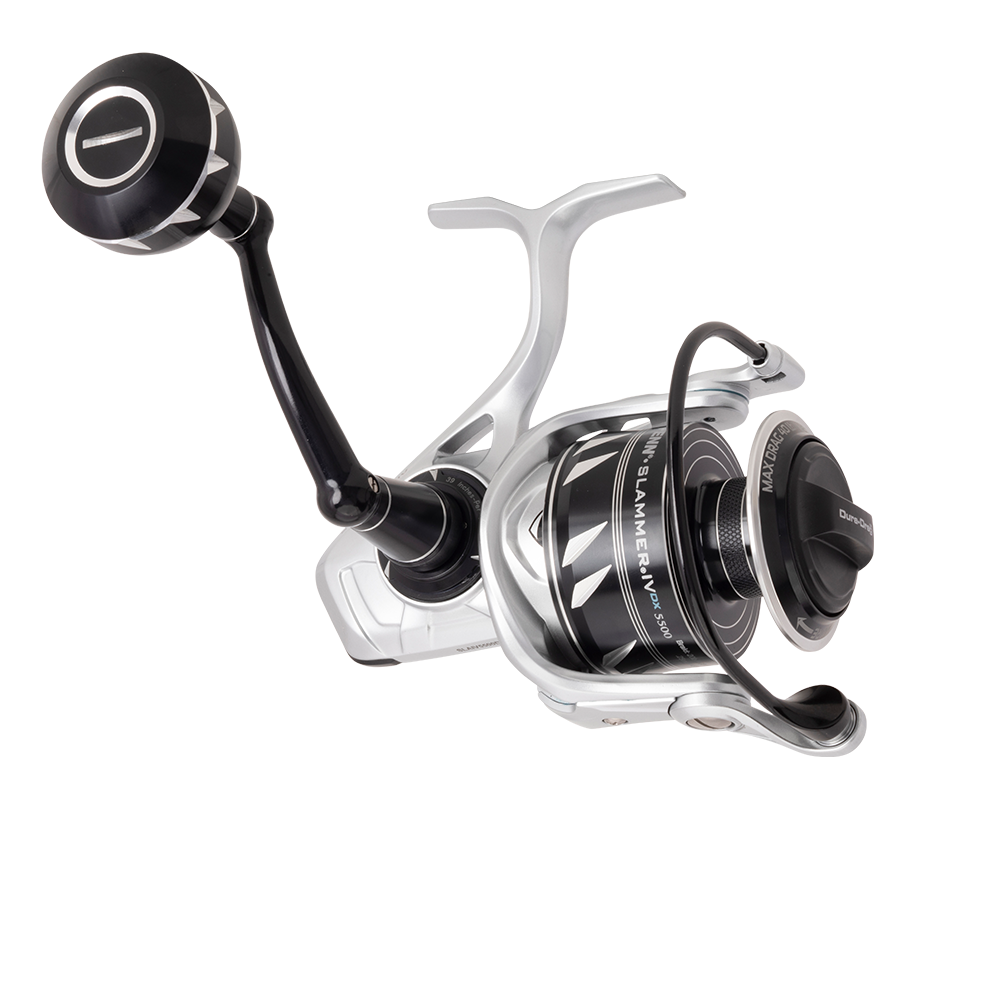

SLAiv5500DX (sku 1545775) (automatic bail trip) (Dura-Drag) |
Mono Cap (yds/lb) 430/10 330/12 230/15 |
Braid Cap (yds/lb) 500/20 380/30 335/40 |
Bearings 9 |
Max Drag 40lb | 18.1kg |
Gear Ratio 5.6:1 |
Line Retrieve 39" | 99cm |
Weight (oz) 22.2 |
First Year 2022 |
Year Disc. -- |

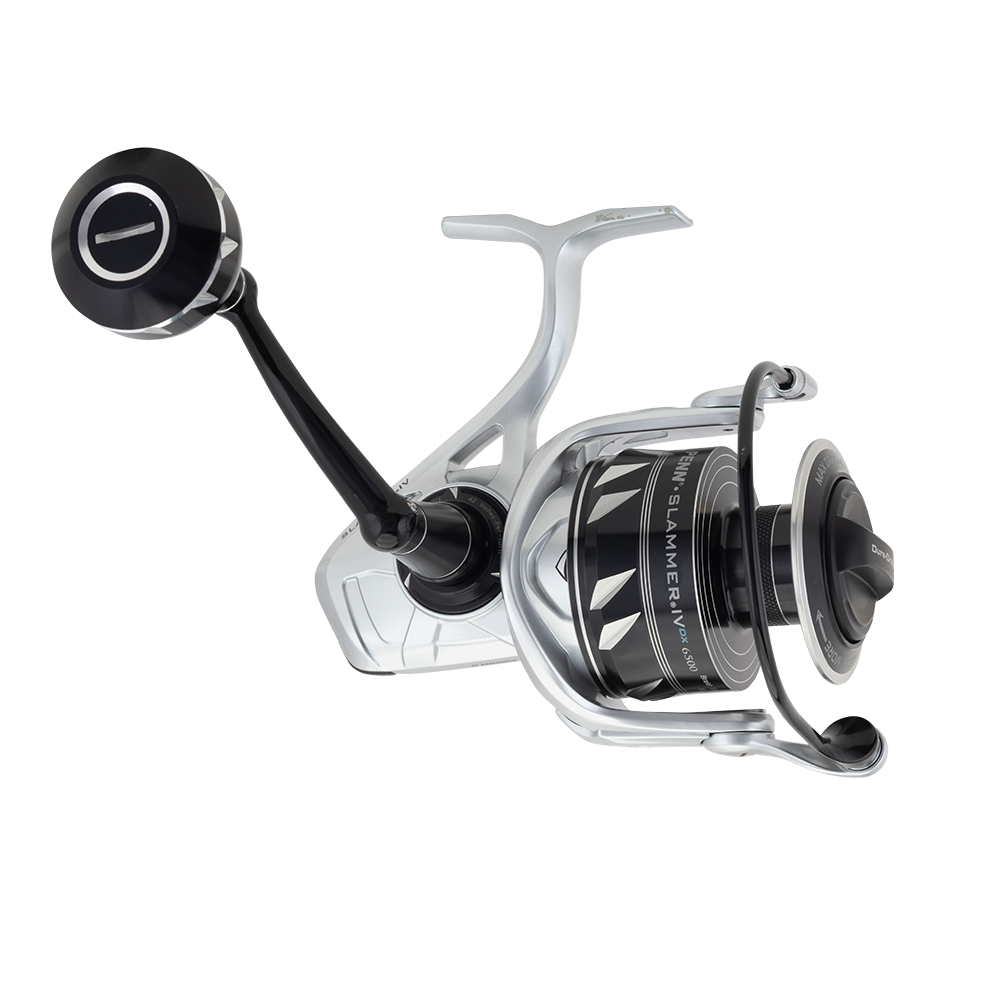

SLAiv6500DX (sku 1545776) (manual bail trip) (Dura-Drag) |
Mono Cap (yds/lb) 390/12 345/15 205/20 |
Braid Cap (yds/lb) 485/30 410/40 335/50 |
Bearings 9 |
Max Drag 40lb | 18.1kg |
Gear Ratio 5.6:1 |
Line Retrieve 42" | 107cm |
Weight (oz) 24.2 |
First Year 2022 |
Year Disc. -- |

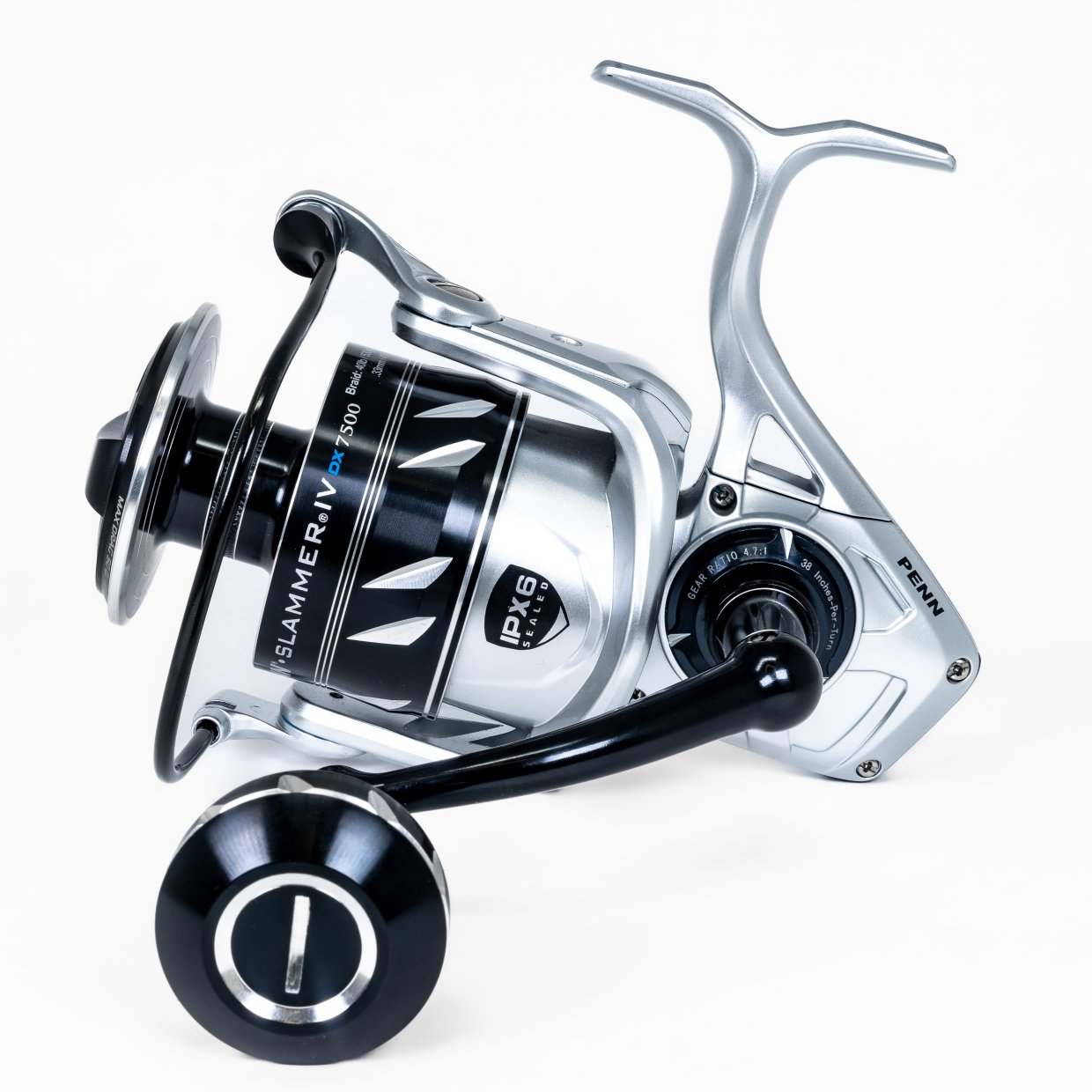

SLAiv7500DX (sku 1545777) (manual bail trip) (Dura-Drag) |
Mono Cap (yds/lb) 490/15 330/20 220/30 |
Braid Cap (yds/lb) 530/40 440/50 400/65 |
Bearings 9 |
Max Drag 50lb | 22.6kg |
Gear Ratio 4.7:1 |
Line Retrieve 38" | 97cm |
Weight (oz) 28.7 |
First Year 2022 |
Year Disc. -- |

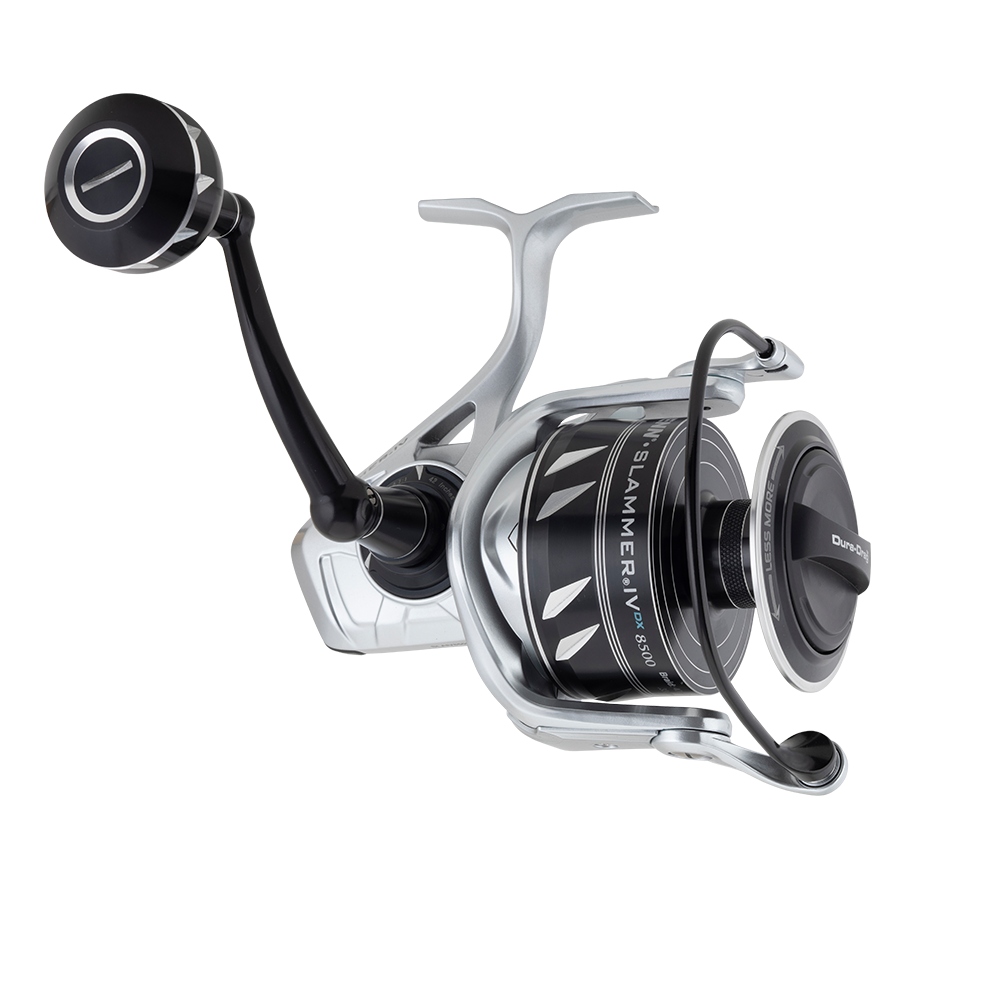

SLAiv8500DX (sku 1545778) (manual bail trip) (Dura-Drag) |
Mono Cap (yds/lb) 455/20 310/30 260/40 |
Braid Cap (yds/lb) 730/40 600/50 555/65 |
Bearings 9 |
Max Drag 50lb | 22.6kg |
Gear Ratio 4.7:1 |
Line Retrieve 42" | 107cm |
Weight (oz) 30.7 |
First Year 2022 |
Year Disc. -- |
Overview:
The Slammer IV DX takes PENN’s class leading Slammer IV up a notch, with enhanced cosmetics and added technology to offer another level of capability in taming the hardest fighting sports fish.
(2022 PennFishing.com.au Advertising)Reel Info:
Penn Slammer IV DX Spinning Reels are available in sizes 2500-8500. Reels are black with silver accents and they look great! Whether you use yours for jigging or casting, you are going to have a lot of fun.
Construction:
- Key differences for the 2500 are listed in the feature bullets.
- Full Metal Body and sideplate
- CNC Gear Technology with ultra-durable stainless steel used for both main gear and pinion gear
- IPX6 Sealed body and spool design
- Dual bearing supported Slammer Drag System with Dura Drag (*Excluding 2500 size which features HT-100 drag) ranging up to 22kg of pressure in largest 8500 size
- HT-100™ carbon fiber drag washers (Size 2500 only)
- 9+1 stainless steel bearing system
- Hydrophobic Line Roller Bearing
- Line capacity rings etched into spool
- Machined aluminium power knob and spare Hypalon knob across the range (excluding 2500 size which has Hypalon knob only)
- Spare Hypalon handle knob (Sizes 3500-10500)
- Sizes 2500-5500 have automatic bail trip
- Sizes 6500-10500 have manual bail trip
Features:
For best-in-class durability, PENN’s renowned CNC Gear technology features upgraded, ultra-strong stainless steel main and pinion gears. The Slammer IV DX’s Dura-Drag is also dually supported with an additional bearing incorporated in the spool compared to the standard Slammer IV. An exclusive silver and black cosmetic has also been incorporated across the range, along with a spare Hypalon handle knob for the ultimate in comfort on the water.
"They improved the sealing on the entire reel so water, salt and sand will not be an issue. This includes the line roller which now houses a hydrophobic bearing. It can be splashed or dunked and you can be confident your Penn Slammer IV DX Spinning Reel is going to keep on going!" ~JandHTackle 2022
Penn has added a 2500 size to this series. This smaller model features an HT-100 drag system. The 3500-8500DX use Penn's top of the line Dura Drag system that puts out a crazy amount of drag and has been refined so that you can access a wider range of drag based on your fishing situation. The reel comes with an aluminum ball handle and a spare EVA knob in the box.
