Torque Lever Drag 2 Speed
REEL SPECS
Torque LD 2 Owners Manual n/a at this time

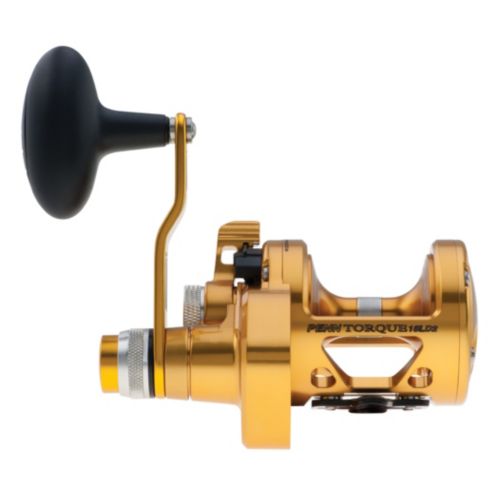

TRQ15LD2G Gold |
Mono Cap (yds/lb) 355/12 • 305/15 • 200/20 |
Braid Cap (yds/lb) 550/20 • 415/30 • 290/50 |
Bearings 6 |
Max Drag @: Strike / Full / Sunset 13lbs. / 16lbs. / 20lbs. |
Gear Ratio High/Low 6.0:1 / 2.8:1 |
Line Retrieve 30in | 14cm |
Weight (oz) 16.7 |
First Year 2014 |
Year Disc. -- |

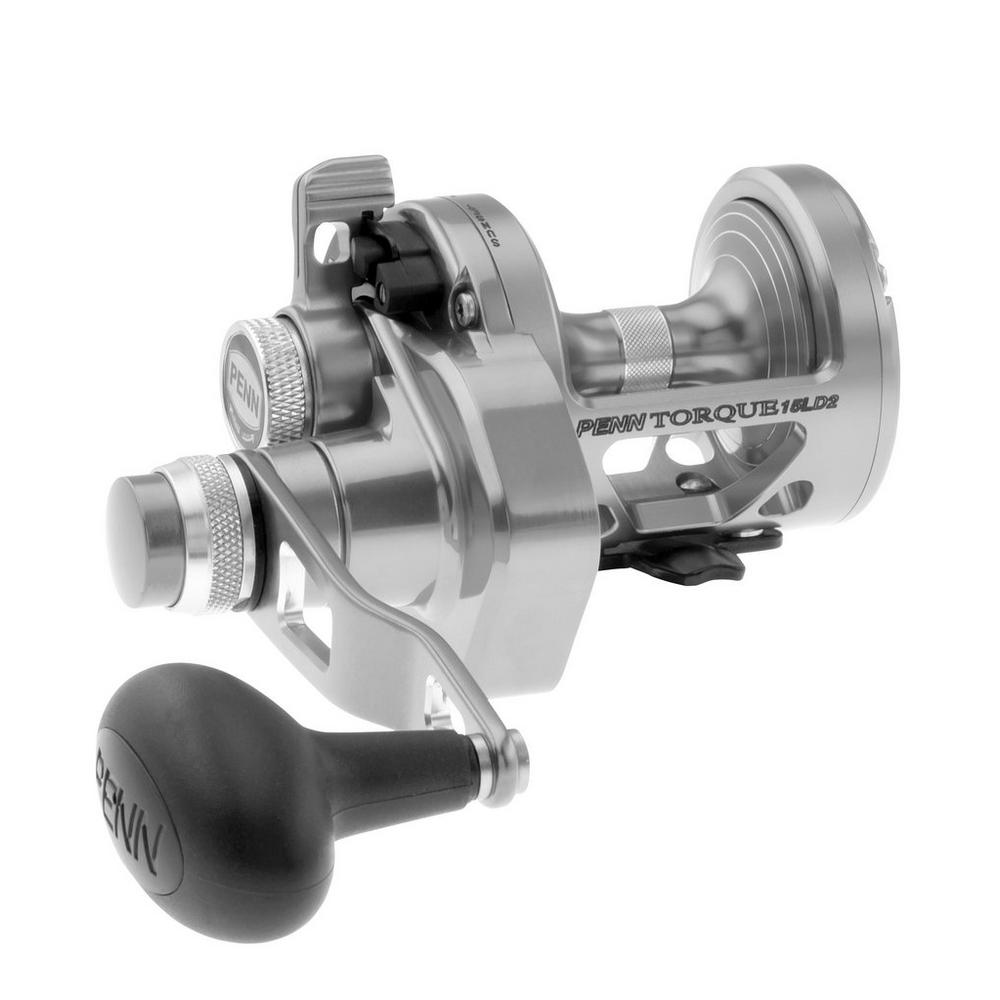

TRQ15LD2S Silver |
Mono Cap (yds/lb) 355/12 • 305/15 • 200/20 |
Braid Cap (yds/lb) 550/20 • 415/30 • 290/50 |
Bearings 6 |
Max Drag @: Strike / Full / Sunset 13lbs. / 16lbs. / 20lbs. |
Gear Ratio High/Low 6.0:1 / 2.8:1 |
Line Retrieve 30in | 14cm |
Weight (oz) 16.7 |
First Year 2014 |
Year Disc. -- |

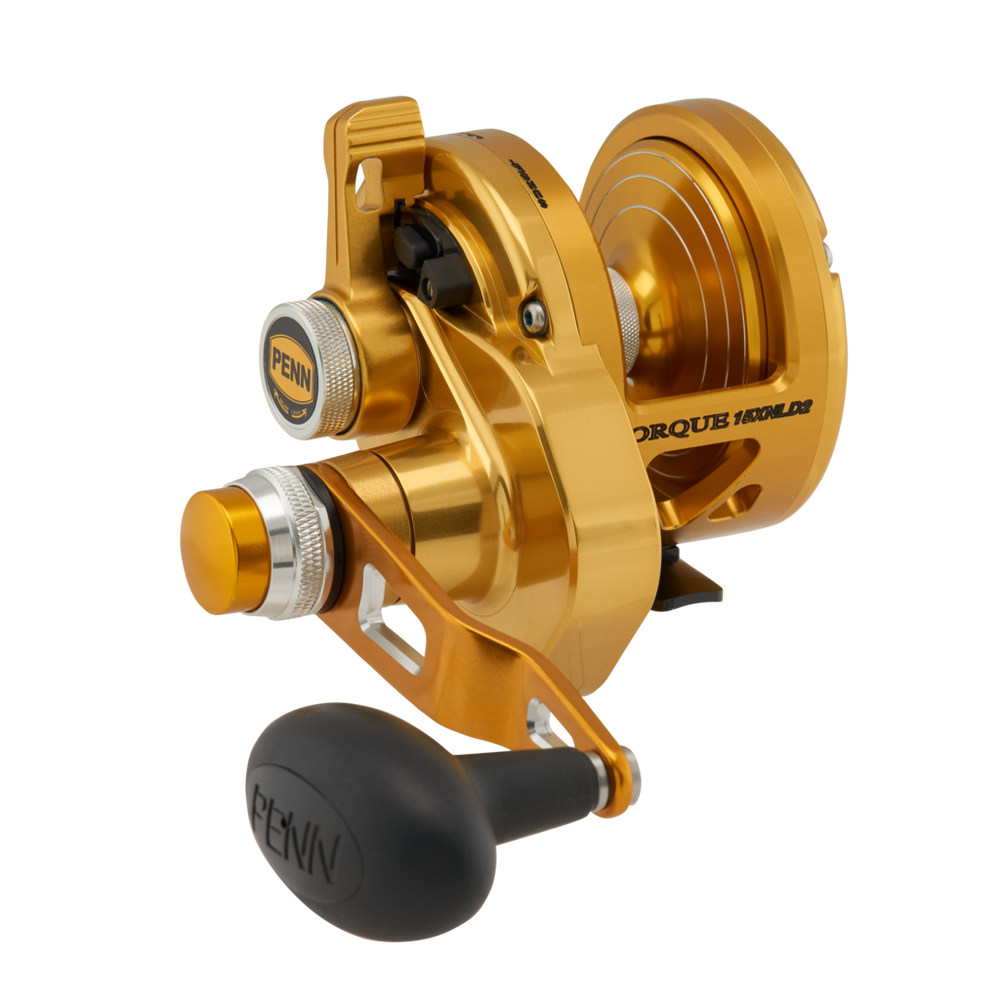

TRQ15XNLD2G Gold |
Mono Cap (yds/lb) 380/12 • 325/15 • 220/20 |
Braid Cap (yds/lb) 595/20 • 450/30 • 310/50 |
Bearings 6 |
Max Drag @: Strike / Full 33LB | 14.9KG |
Gear Ratio High/Low 5.5:1 / 2.8:1 |
Line Retrieve 38in | 19cm |
Weight (oz) 20.4 |
First Year 2014 |
Year Disc. -- |

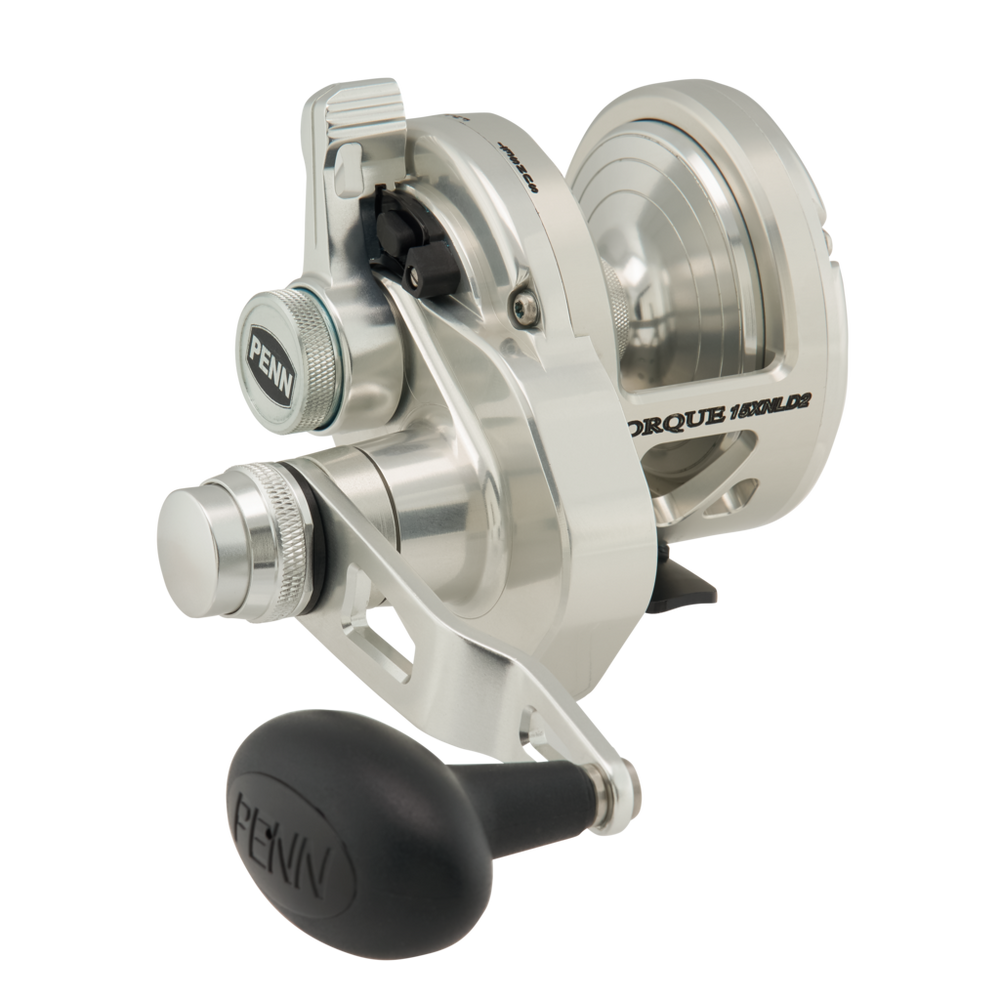

TRQ15XNLD2S Silver |
Mono Cap (yds/lb) 380/12 • 325/15 • 220/20 |
Braid Cap (yds/lb) 595/20 • 450/30 • 310/50 |
Bearings 6 |
Max Drag @: Strike / Full 33LB | 14.9KG |
Gear Ratio High/Low 5.5:1 / 2.8:1 |
Line Retrieve 38in | 19cm |
Weight (oz) 20.4 |
First Year 2014 |
Year Disc. -- |

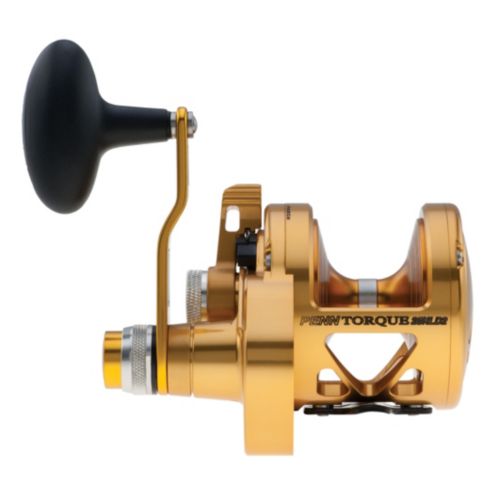

TRQ25NLD2G Gold |
Mono Cap (yds/lb) 330/20 • 305/25 • 245/30 |
Braid Cap (yds/lb) 680/30 • 475/50 • 395/65 |
Bearings 6 |
Max Drag @: Strike / Full / Sunset 23lbs. / 28lbs. / 33lbs. |
Gear Ratio High/Low 5.5:1 / 2.8:1 |
Line Retrieve 38in | 19cm |
Weight (oz) 21.2 |
First Year 2014 |
Year Disc. -- |

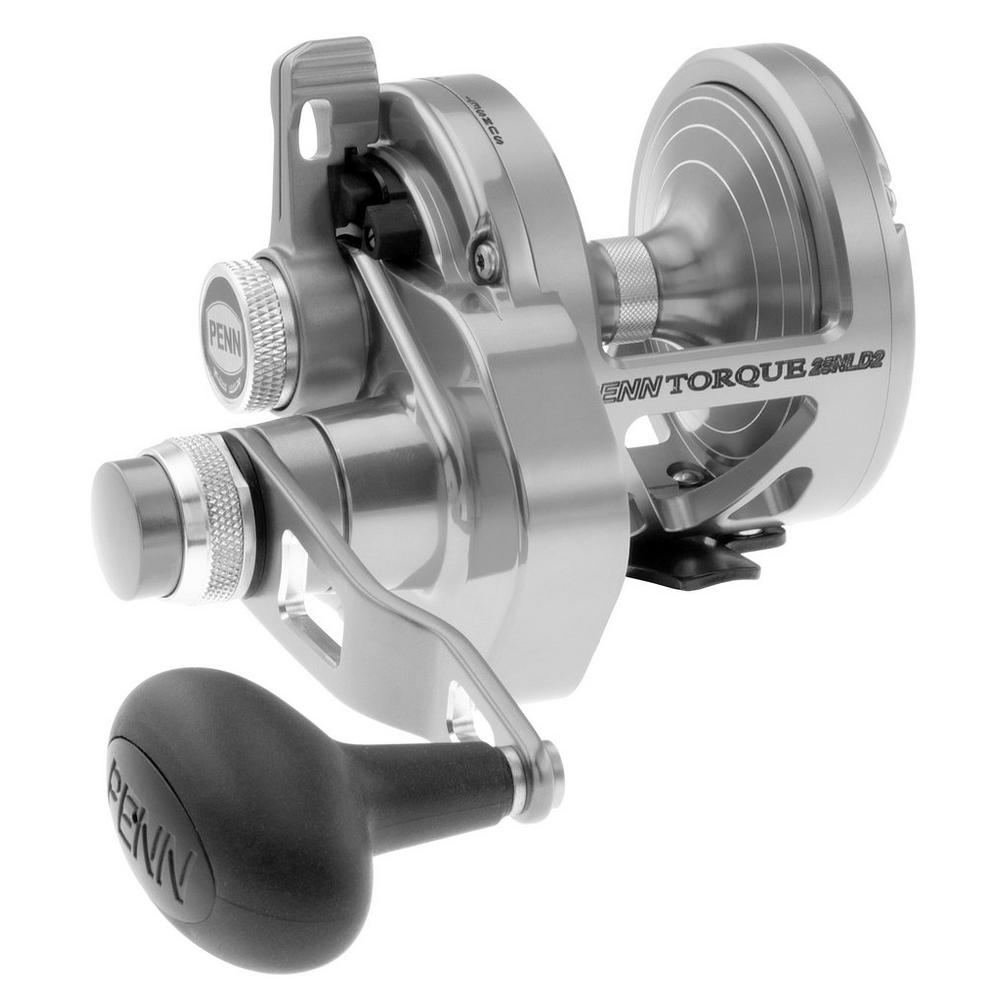

TRQ25NLD2S Silver |
Mono Cap (yds/lb) 330/20 • 305/25 • 245/30 |
Braid Cap (yds/lb) 680/30 • 475/50 • 395/65 |
Bearings 6 |
Max Drag @: Strike / Full / Sunset 23lbs. / 28lbs. / 33lbs. |
Gear Ratio High/Low 5.5:1 / 2.8:1 |
Line Retrieve 38in | 19cm |
Weight (oz) 21.2 |
First Year 2014 |
Year Disc. -- |

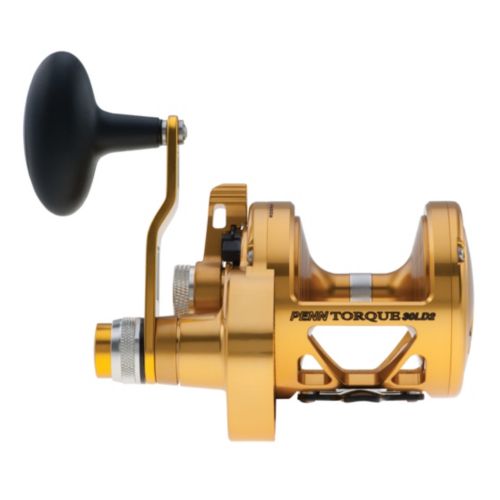

TRQ30LD2G Gold |
Mono Cap (yds/lb) 440/20 • 330/30 • 255/40 |
Braid Cap (yds/lb) 635/50 • 525/65 • 455/80 |
Bearings 6 |
Max Drag @: Strike / Full / Sunset 23lbs. / 28lbs. / 33lbs. |
Gear Ratio High/Low 5.5:1 / 2.8:1 |
Line Retrieve 38in | 19cm |
Weight (oz) 21.5 |
First Year 2014 |
Year Disc. -- |

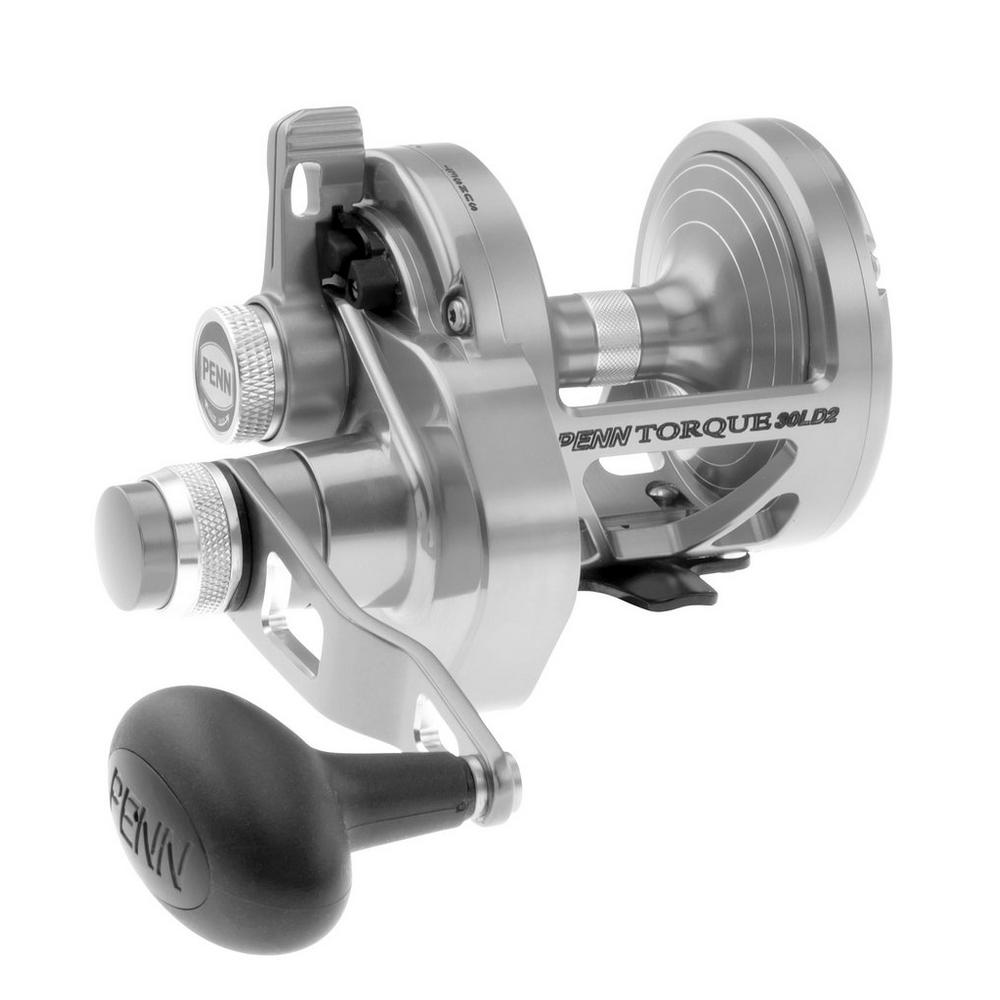

TRQ30LD2S Silver |
Mono Cap (yds/lb) 440/20 • 330/30 • 255/40 |
Braid Cap (yds/lb) 635/50 • 525/65 • 455/80 |
Bearings 6 |
Max Drag @: Strike / Full / Sunset 23lbs. / 28lbs. / 33lbs. |
Gear Ratio High/Low 5.5:1 / 2.8:1 |
Line Retrieve 38in | 19cm |
Weight (oz) 21.5 |
First Year 2014 |
Year Disc. -- |

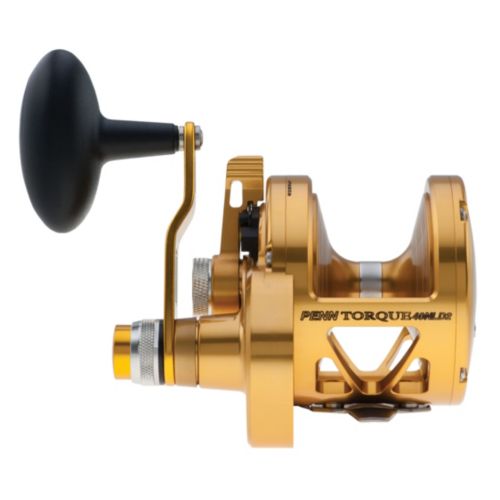

TRQ40NLD2G Gold |
Mono Cap (yds/lb) 410/30 • 315/40 • 235/50 |
Braid Cap (yds/lb) 785/50 • 655/65 • 565/80 |
Bearings 6 |
Max Drag @: Strike / Full / Sunset 23lbs. / 28lbs. / 40lbs. |
Gear Ratio High/Low 5.1:1 / 2.5:1 |
Line Retrieve 42in | 21cm |
Weight (oz) 26.1 |
First Year 2014 |
Year Disc. -- |

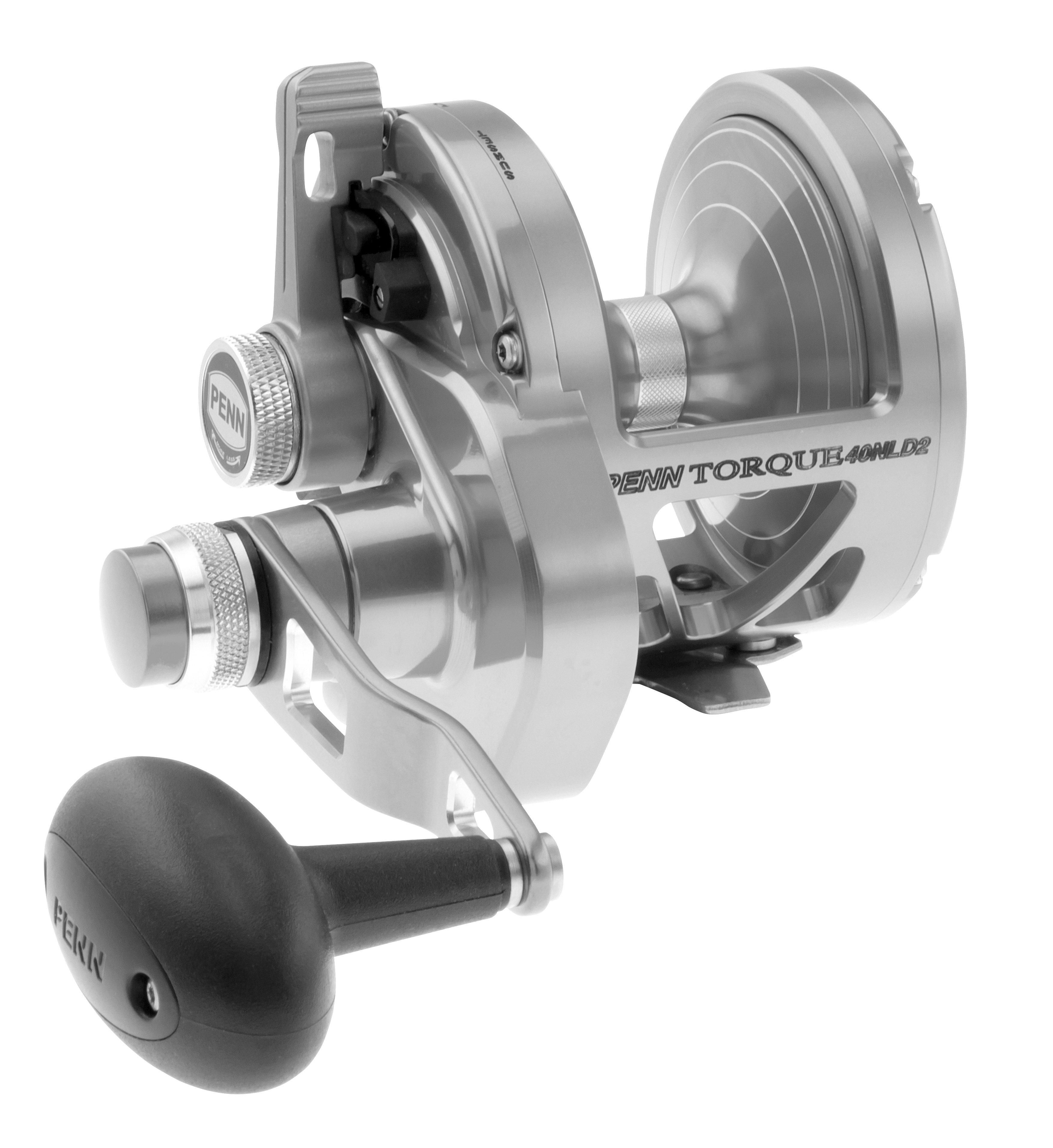

TRQ40NLD2S Silver |
Mono Cap (yds/lb) 410/30 • 315/40 • 235/50 |
Braid Cap (yds/lb) 785/50 • 655/65 • 565/80 |
Bearings 6 |
Max Drag @: Strike / Full / Sunset 23lbs. / 28lbs. / 40lbs. |
Gear Ratio High/Low 5.1:1 / 2.5:1 |
Line Retrieve 42in | 21cm |
Weight (oz) 26.1 |
First Year 2014 |
Year Disc. -- |

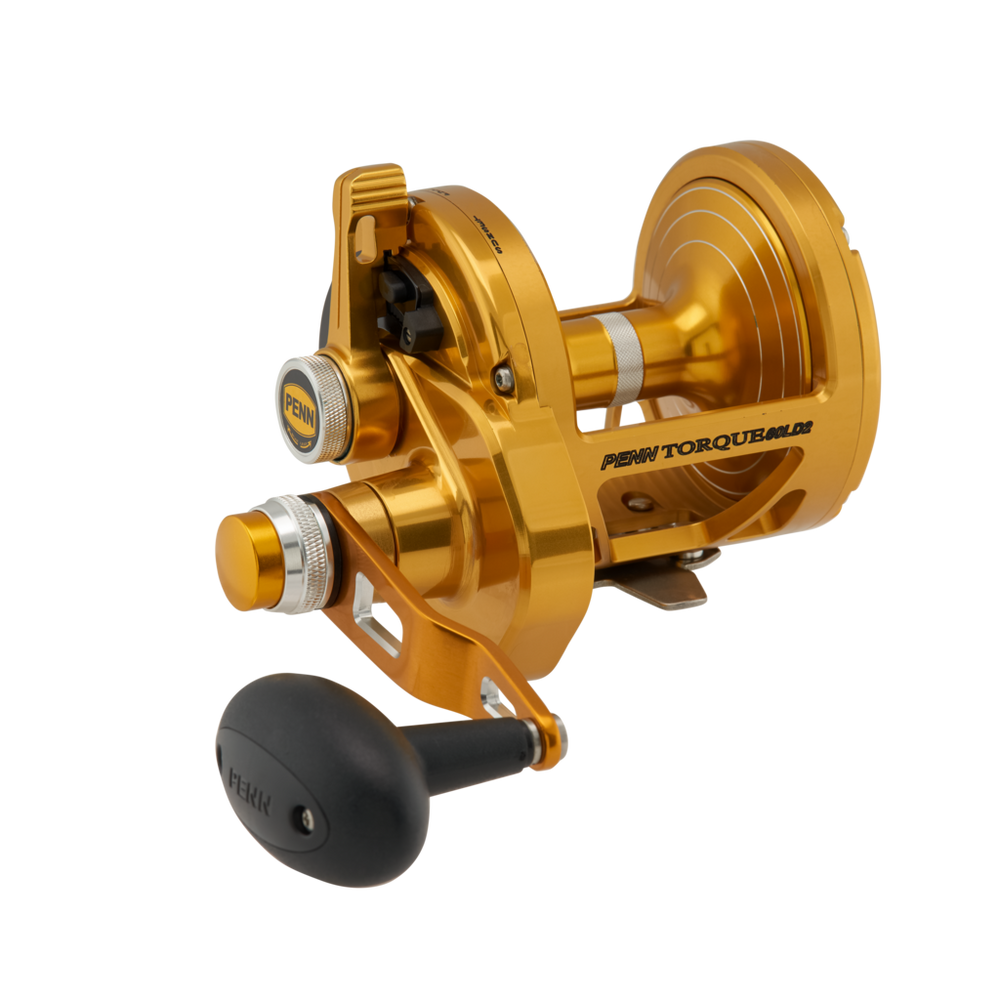

TRQ60LD2G Gold |
Mono Cap (yds/lb) 480/40 • 355/50 • 315/60 |
Braid Cap (yds/lb) 995/95 • 860/80 • 735/100 |
Bearings 6 |
Max Drag @: Strike / Full 23lbs. / 28lbs. / 40lbs. |
Gear Ratio High/Low 5.1:1 / 2.5:1 |
Line Retrieve 41in | 21cm |
Weight (oz) 28.3 |
First Year 2014 |
Year Disc. -- |

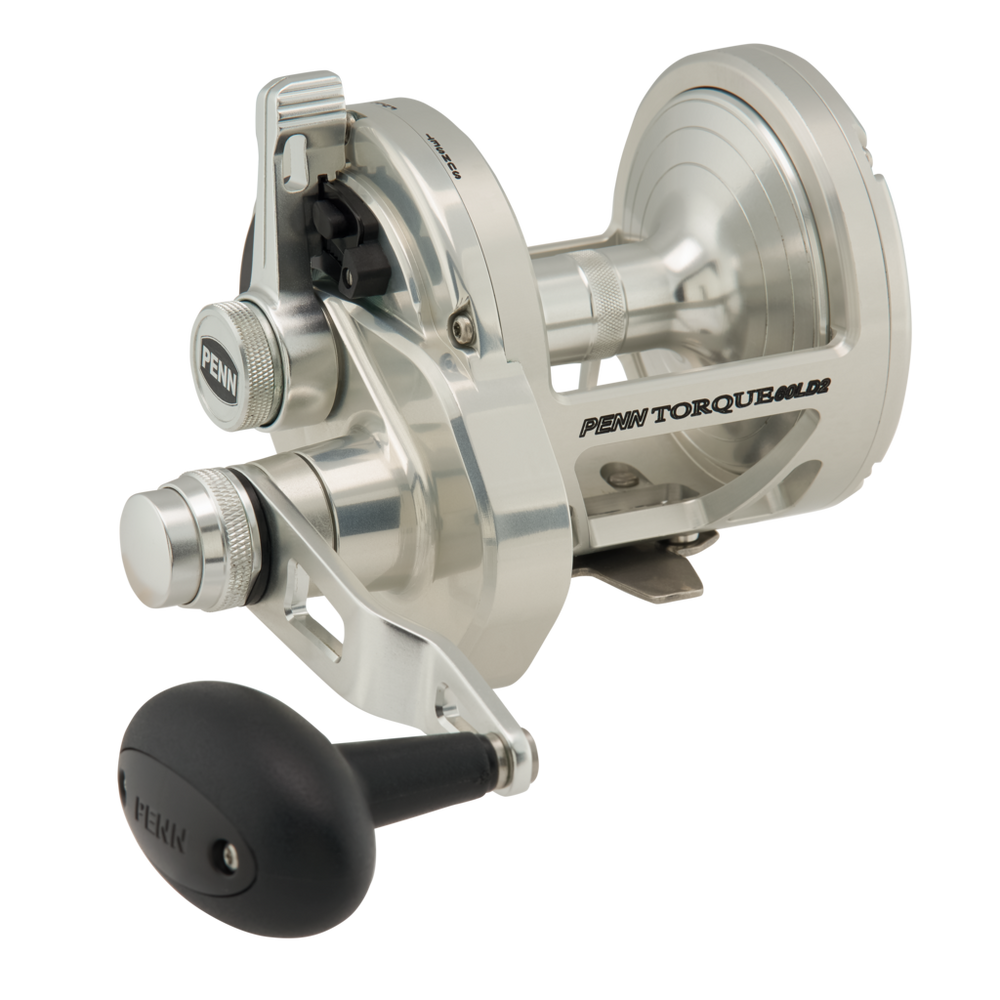

TRQ60LD2S Silver |
Mono Cap (yds/lb) 480/40 • 355/50 • 315/60 |
Braid Cap (yds/lb) 995/95 • 860/80 • 735/100 |
Bearings 6 |
Max Drag @: Strike / Full 23lbs. / 28lbs. / 40lbs. |
Gear Ratio High/Low 5.1:1 / 2.5:1 |
Line Retrieve 41in | 21cm |
Weight (oz) 28.3 |
First Year 2014 |
Year Disc. -- |
Overview:
Manufactured in Philadelphia, the lightweight Torque Lever Drag 2-Speed features an open top design with machined and anodized aluminum body and sideplates, along with a lightweight forged aluminum spool. Quick Shift 2-speed system easily shifts into high or low gear. Engineered to provide long lasting PENN durability, the sealed Dura-Drag washers virtually eliminate hesitation, even under extreme drag settings.
Reel Info:
2011 is the year Penn started renumbering their conventional reels with 40 for 4/0, 50 for 5/0, etc., to make the model numbering more consistent.
Construction:
- Machined and anodized aluminum body and sideplates
- Lightweight forged aluminum spool with line capacity Rings
- Stainless steel main and pinion gears
- Sealed Dura-Drag™ system
- 6 shielded stainless steel ball bearings
- Quiet double-dog anti-reverse
Features:
Line Capacity Rings
Eliminates the question of how much line you have left when fighting a fish. The three lines on the spool flange let you know when you have 1/3rd, 2/3rd, or a full spool of line. Also if you respool often these lines give you a benchmark for backing your superlines with monofilament which will help eliminate wasted time and line.
Dura Drag™

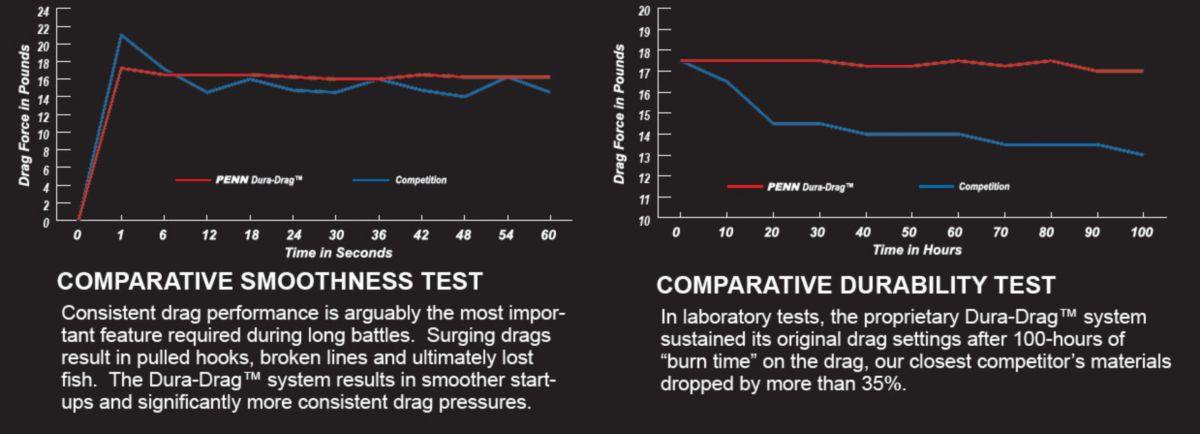

The Dura-Drag system results in smoother start ups and virtually eliminates hesitation, even under extreme drag settings. Unlike other products that advertise their high-potential drag settings but fail to inform you that these drag settings result in drag curves that are anything but angler friendly, and have a high potential to pop lines, pull hooks, and result in lost fish. Click here to take a look at a side by side comparison next to the competition.
Full Metal Body
Constructed with full metal body and side plates to keep precise gear alignment under heavy loads. This is just one of the reasons PENN reels are considered The Gold Standard in high quality, big game reels. We hold ourselves to a higher standard. So when building the most respected big game reels on the market, we take extra steps to ensure our reels perform better and last longer.
