[BACKORDERED] NO DUE DATE
| Aftermarket Part - Not Manufactured by Penn

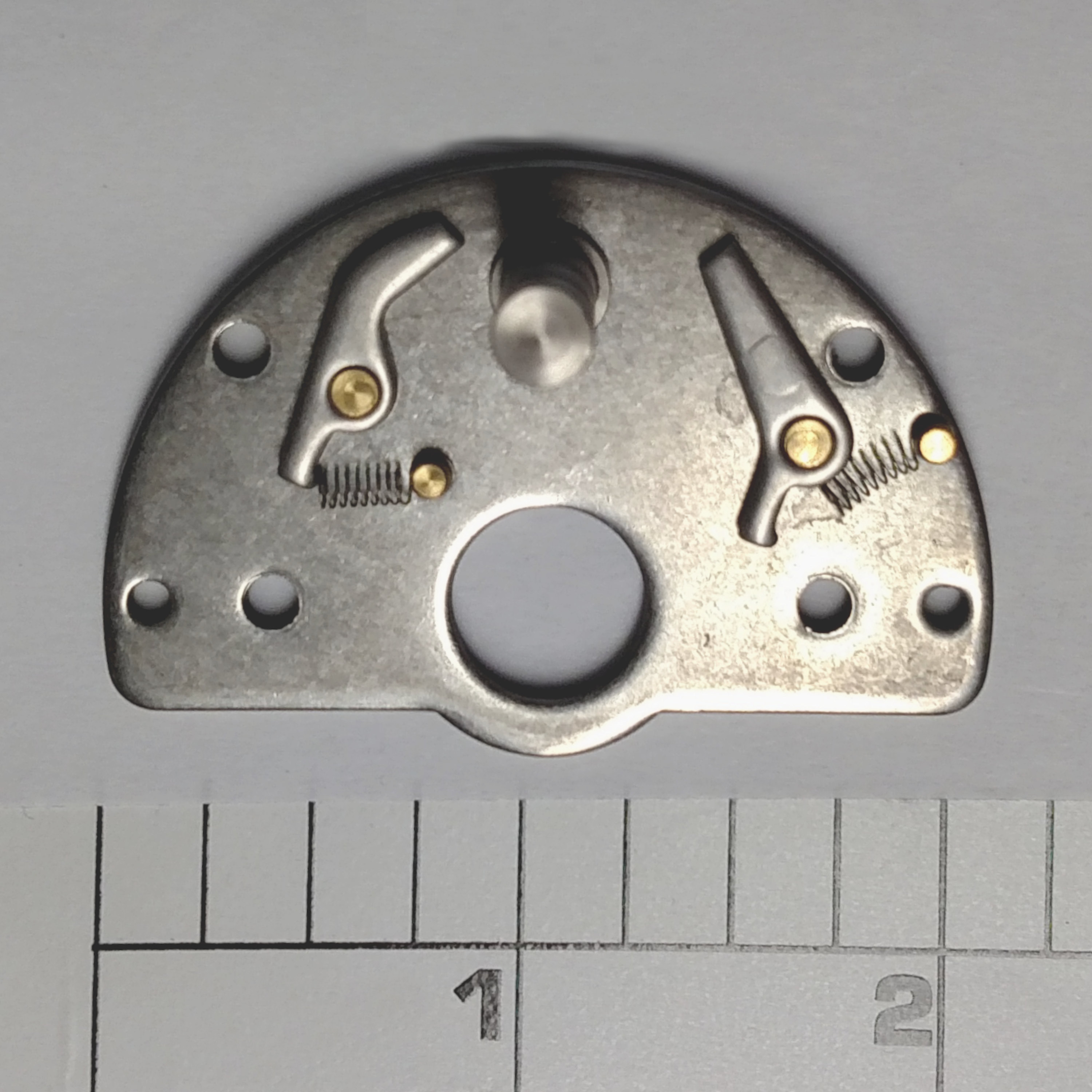

Pro Challenger's Custom Jigmaster Bridge
|  |
****BRIDGE DOES NOT INCLUDE A SLEEVE
If you want the optional 10 tooth SS sleeve for your reel, please check it off below before adding the bridge to your cart!
With 10 teeth on ratchet (The PRO Custom SS to match your drag star) the extra two teeth on it to eliminate most back-play on the handle.
With 8 teeth (Standard or CC Custom SS to match your drag star) the two dogs will alternate more. Again, both types of sleeves will function with the bridge.
Click Links Below to go to that product for ordering
500 USES OPTIONAL SLEEVES:
FINE THREAD (NEEDS 10-505 STAR) (Stock sleeves for 505, 506):
- Custom 98-505PRO SS (10 Tooth)
- Custom 98-505CC SS (8 Tooth)
- Custom Standard 98-505 Brass (8 Tooth)
- Matching Fine Threaded 10-505 Drag Star
COARSE THREAD (NEEDS 10-60 STAR) (Stock sleeves for 500, 501):
- Custom 98-60PRO SS (10 Tooth)
- Custom 98-60CC SS (8 Tooth)
- Standard 98-60 Brass (8 Tooth)
- Matching Coarse Threaded 10-60 Drag Star
Fits:
500, 500S, 501, Pro Gear Pacifica 2500
Optional Stainless Supporting Parts for 500
- Custom 12-500SS Stainless Yoke
- Custom 11-99SS Stainless Jack
- Custom 17-60-SS Stainless Bridge Screw (Needs 2)
Replacement Parts for the 3-500SS bridge (For reordering only)
- Custom 14-500PRO Dog Springs (Needs 2)
- Custom 15-500-SS-L Left Side SS Dog
- Custom 15-500-SS-R Right Side SS Dog
THE SPRINGS AND DOGS are INCLUDED if you are ordering the bridge.
Related Products
15-500-SS-L Dog, Left Side SS Dog (for DD bridge) (CUSTOM)
For 3-500PRO and 3-112HPRO Bridges ONLY
$3.50
14-500-PRO Spring, (Stainless Steel Version for SS DD Bridges)(CUSTOM)
For use on the 3-112HPRO, 3-500PRODouble dog bridges. NOT THE SAME as the original 14-500 so do not order by mistake!
$1.15
17-60-SS Screw, Upper/Lower Bridge Screw, Stainless Steel
Please read the detailed description for this custom aftermarket part!
$1.65
