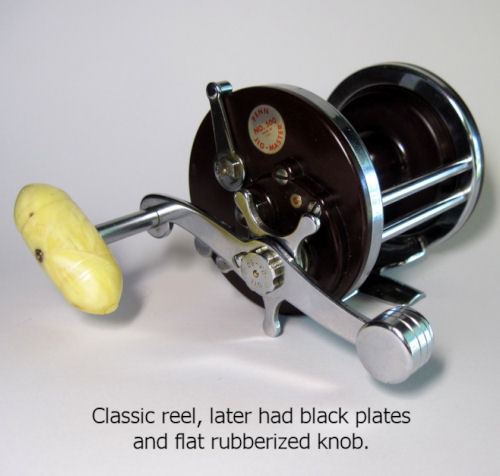

TROUBLESHOOTING HELP REQUESTED! Please [Contact us] if you find a bad link or get an error message, etc, and send us info about what page or item you were on when you saw the issue, with a link if possible, or a screen shot. Not the error screen, we need to know where you were before the error and what you were clicking on. Thanks! ~Mo, Parts & Tech SupportPenn 500, 500L Jigmaster Conventional Reel
Model Specs:
More Info- Reinforced side plates.
- Counterbalanced soft grip handle.
- Chrome plated brass exposed metal componants.
- Stainless steel ball bearings and pinion gear and a high strenth bronze alloy main gear.
- Easy to operate star drag.
- HT-100 multi-disc star drag.
- Counterbalanced soft grip handle.
Mono Cap (yds/lb) |
Braid Cap (yds/lb) |
Bearings | Max Drag | Gear Ratio | Line Retrieve |
---|---|---|---|---|---|
275/30 | -- | 2 | -- | 4:1 | -- |
Take Apart Construction
The term "Take-Apart" refers to the feature of quick and easy take-down of the reel for cleaning or spool change. To effect this, unscrew the knurled take-apart screw ( part TA 200 ) three turns to the left and then pull it outward ( away from plate ), at the same time rotate the right side plate about 1/4 inch to the left ( counter-clockwise ) and pull it away from the reel frame, taking care not to drop the freed spool. To re-assemble, reverse the entire operation, making sure to screw the take-apart screw into the reel frame, as otherwise the right side plate might be lost.
TA-200 became 129-200
001N-001N500
Direct product replacement: 1N-500N Handle Side Plate (Black) No Oiler, (Made In China) $27.30
001N-1180517▭
REPLACES ORIGINAL NUMBERS 1-500 AND 1N-500 ON SOME REELS
003-500PRO
Please read the detailed description for this custom aftermarket part!
3-113H-PRO
Please read the detailed description for this custom aftermarket part!
P316112H501▲
006-1180917◉
MULTI USE See Description
Used on multiple models in different quantities.
CUU-PENN500▲
Fits: 112H, 210M, 500, 500S, 501, 505HS, 506HS, 309M, Newell 200/300/400Series, ProGear 255/251
007C-1181051▲
See design change notes
008-1181056☀
Used on multiple models in different quantities.
9-60
Variations allow for more/less play in handle - see description.
010-1181176▲
REPLACES ORIGINAL NUMBER 10-140 ON SOME REELS
010-1181200▲
Click to read more about the two types of 10-505 stars
CPC-011-99SS▲
**For use with stainless P316112H501 gear set.
012-1181270☀
REPLACES ORIGINAL PART NUMBER 12-99, 12-110 ON SOME REELS
CSD-012-500-SS▲
**For use with stainless P316112H501 gear set.
013-1181347☀
REPLACES ORIGINAL NUMBER 13-99 and 13-66 ON THE 250,259 and original 112H reels
016-1181565☀
REPLACES ORIGINAL PART NUMBER 16-60 ON SOME REELS
Used on multiple models in different quantities.
017-1181594☀
REPLACES ORIGINAL PART NUMBER 17-60
Used on multiple models in different quantities.
018-1181615☀
Used on multiple models in different quantities.
020-1181756
REPLACED BY PART NUMBER 20-112H2
Direct product replacement: 20-112H2 Spring, Eccentric Spring $1.30
020-1288916♦
REPLACES ORIGINAL NUMBER 20-60L ON SOME REELS
021-1181835☀
031-1182654☀
032-1182709☀
033-1191592▲
REPLACES ORIGINAL NUMBERS 33-16S, 33-TRQS ON SOME REELS
033N-1182754☘
REPLACES ORIGINAL NUMBER 33-113 ON SOME REELS
033C-1192682
This part will no longer be manufactured by Penn; Limited Quantities Available.
033R-1182783▲
033-113SP
Direct product replacement: 33N-113SP Clamp, Rod, KIT: (Thick) Graphite Clamp with Studs and Nuts $14.60
033C-1182773▭
033i-113SP
033N-1180382▭
033C-1191611▭
113H Fits All Versions.
033CR-200
113H Fits both Frame Posts Versions.
033C-33C-200-OLD
Antique Restoration/Collectors Item for Display Reels
113H Fits All Versions.
034-1182788▲
This is just the stud
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
034C-1182862▲
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
034-1182810▲
This can be used as a sub for the 34-49 or 34-45 if wanting a LONGER stud screw
034C-1182875▲
037-1183072
REPLACED BY PART NUMBER 37-113
Direct product replacement: 37-113 Post, Frame Post (Brushed Stainless) $5.50
038-1183134☀
039-1183180☀
062-1184028▲
113H Fits Frame Posts with a clicker and Half Frame Versions.
063-1184048☀
MULTI USE See Description
113H Fits Frame Posts with a clicker and Half Frame Versions.
098-1184328▲
Stainless Steel Gear Sleeves by other manufacturers. Click link to view options.
098-1184361▲
110-1184437♦
REPLACES ORIGINAL PART NUMBER 23A-60 ON SOME REELS
149-1184702♦
Used with the graphite clamps 33-340, 33N-113, aluminum 33-TRQ, 33-TRQS and iron alloy clamp 33i-113 and 33-16VS
1178860
FITS REELS:
9M, 109M, 209M
110, 111, 112, 112H, 112H2
140L, 145, 146L, 220
310GT, 310GTi, 310GT2, 320GT, 320GTi, 320GT2, 320LD
500L, 501, 525, 525GS, 525MAG, 535, 535GS, 545, 545GS, 555, 555GS
965, 975, 975CS, 975CSLD, 975SLD
DFN20LW, DFN25LW, DFN30
FTH12, FTH15, FTH15LD2, FTH15LD, FTH15LW, FTH20LW, FTH25N, FTH25NLD, FTH25NLD2, FTH25LW, FTH30, FTH30LD, FTH30LD2, FTH30LD2LH, FTH25NLD2, FTH30LD, FTH40
SQL200LP, SQL200LPLH,SQL200LPHS,SQL300LP, SQL300LPLH,SQL300LPHS,SQL400LP, SQL400LPLH,SQL400LPHS
SQL12, SQL15, SQL15LW, SQL20LW, SQL25N
SQLii12SD, SQLii15SD, SQLii15SDCS, SQLii25NSD
TRQ15LD2, TRQ25NLD2, TRQ30LD2, TRQ12, TRQ15, TRQ25, TRQ30, TRQ40, TRQ100, TRQ100LD, TRQ200
WAR15LW, WAR15LWLH
168-1184800
Fits 23-60 knurled nut (see details for list of reels)
REPLACED BY PART NUMBER 168-60 or 168-TANI
Direct product replacement: 168-60 Wrench $1.30
168-1184802☘
Fits 23-60, 23-16S knurled nuts (See details for list of reels)
