The all-new Fathom™ II Lever Drag reels take a class-leading reel and raise the bar even more. New models, sizing, features, and optimized billfish models round out the assortment to give a model for every application.
Highlights:
Integrating the palm side plate and frame allows the Fathom™ II Lever Drag reels to be more compact in hand and increases strength. The Pull-to-Turn preset knobs allow the angler to truly set it, and forget it. At the Fathom's™ core is a stainless steel main and pinion gear and a forged and machined aluminum spool for maximum durability.
Features:
- Full Metal Body and Sideplates keep precise gear alignment under heavy loads
- Forged and machined aluminum spool
- Stainless steel main and pinion gears
- Dura-Drag™ washers virtually eliminate hesitaion, even under extreme drag settings
- 5 shielded stainless steel ball bearings
- Double-dog ratchet anti-reverse system
- Line Capacity Rings
FTHII10XNLD2 |
Mono Cap (yds/lb) 350/8 325/10 220/12 |
Braid Cap (yds/lb) 425/15 345/20 260/30 |
Bearings 5 |
Max Drag (lbs) 20LB | 9.0KG |
Gear Ratio 6.2:1 / 2.8:1 |
Line Retrieve (in) 32/14 |
FTHII15LD2 |
Mono Cap (yds/lb) 515/10 300/15 200/20 |
Braid Cap (yds/lb) 550/20 410/30 335/40 |
Bearings 5 |
Max Drag (lbs) 20LB | 9.0KG |
Gear Ratio 6.2:1 / 2.8:1 |
Line Retrieve (in) 32/14 |
FTHII15XNLD2 |
Mono Cap (yds/lb) 670/10 390/15 260/20 |
Braid Cap (yds/lb) 710/20 535/30 435/40 |
Bearings 5 |
Max Drag (lbs) 33LB | 14.9KG |
Gear Ratio 5.5:1 / 2.8:1 |
Line Retrieve (in) 38/19 |

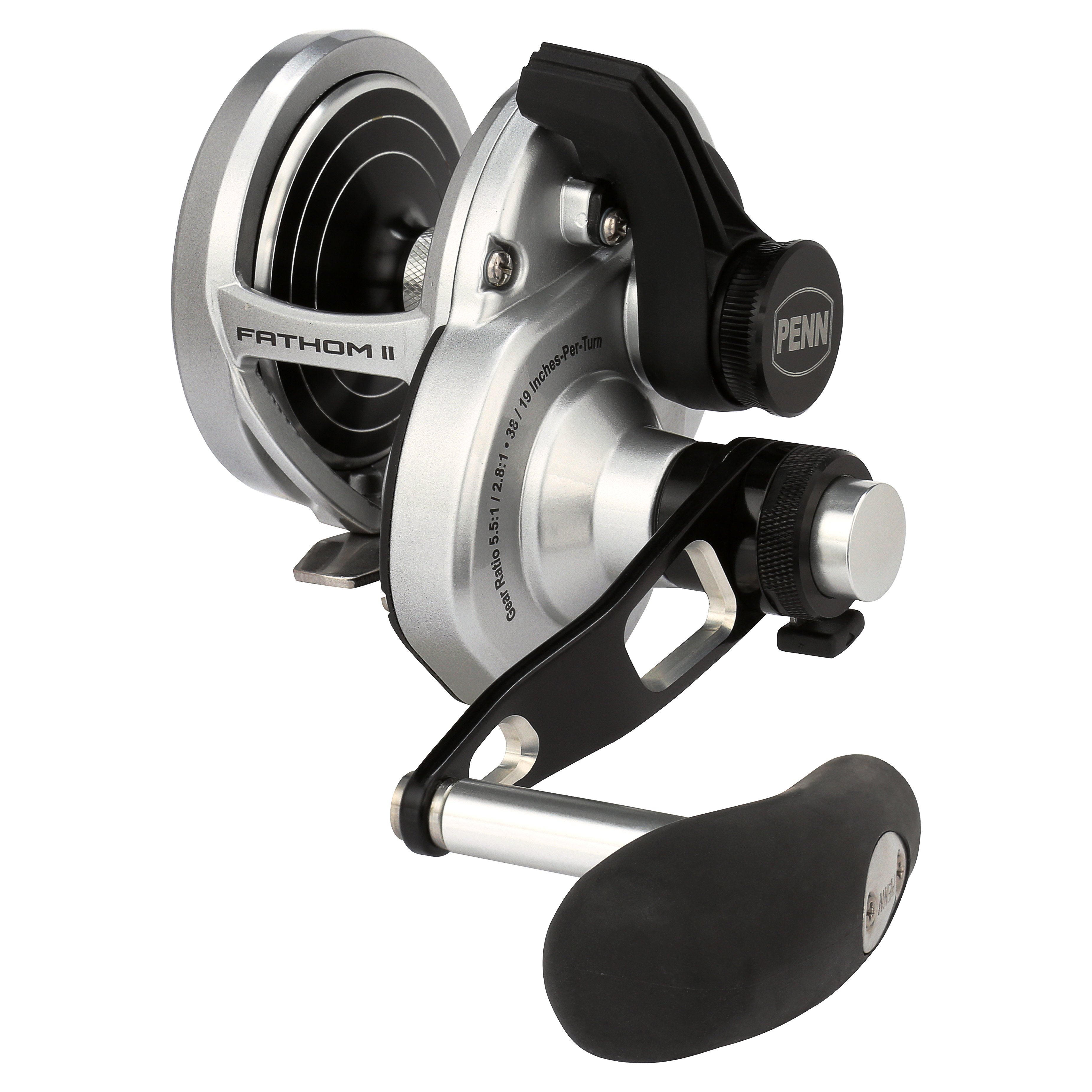

FTHII15XNLD2LH |
Mono Cap (yds/lb) 670/10 390/15 260/20 |
Braid Cap (yds/lb) 710/20 535/30 435/40 |
Bearings 5 |
Max Drag (lbs) 33LB | 14.9KG |
Gear Ratio 5.5:1 / 2.8:1 |
Line Retrieve (in) 38/19 |

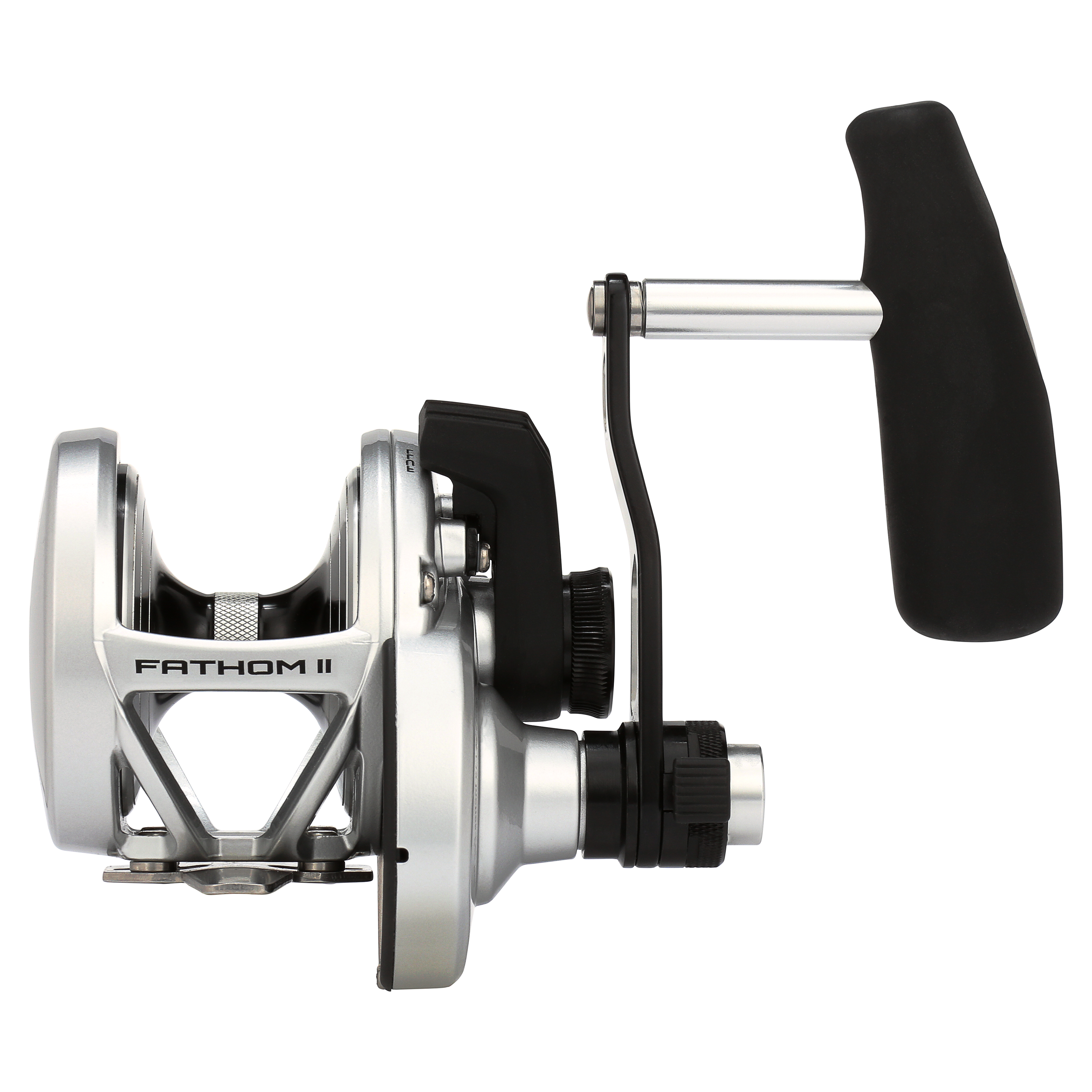

FTHII25NLD2 |
Mono Cap (yds/lb) 330/20 300/25 245/30 |
Braid Cap (yds/lb) 675/30 555/40 475/50 |
Bearings 5 |
Max Drag (lbs) 33LB | 14.9KG |
Gear Ratio 5.5:1 / 2.8:1 |
Line Retrieve (in) 38/19 |
FTHII25NLD2LH |
Mono Cap (yds/lb) 330/20 300/25 245/30 |
Braid Cap (yds/lb) 675/30 555/40 475/50 |
Bearings 5 |
Max Drag (lbs) 33LB | 14.9KG |
Gear Ratio 5.5:1 / 2.8:1 |
Line Retrieve (in) 38/19 |

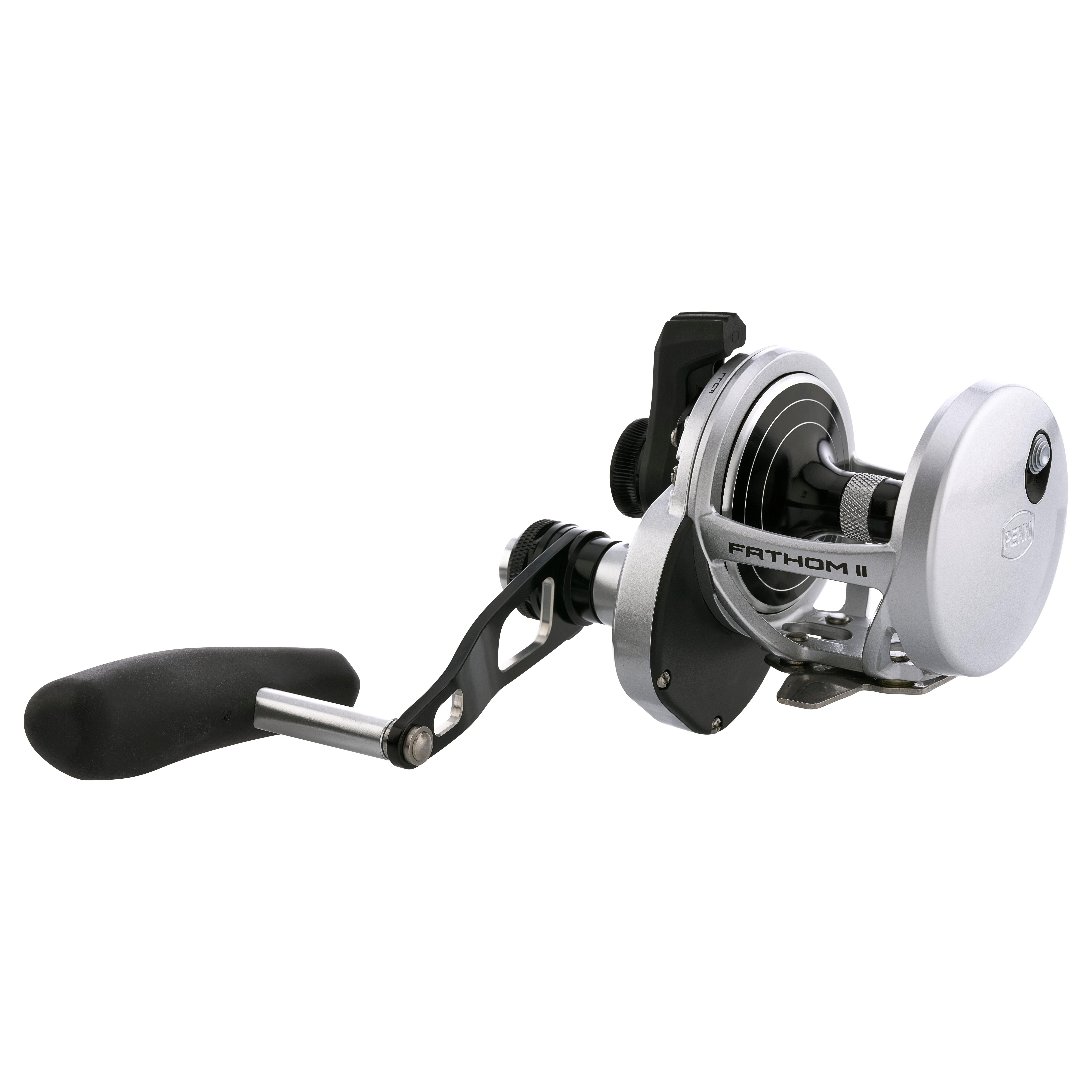

FTHII30LD2 |
Mono Cap (yds/lb) 405/25 330/30 255/40 |
Braid Cap (yds/lb) 740/40 635/50 525/65 |
Bearings 5 |
Max Drag (lbs) 33LB | 14.9KG |
Gear Ratio 5.5:1 / 2.8:1 |
Line Retrieve (in) 38/19 |

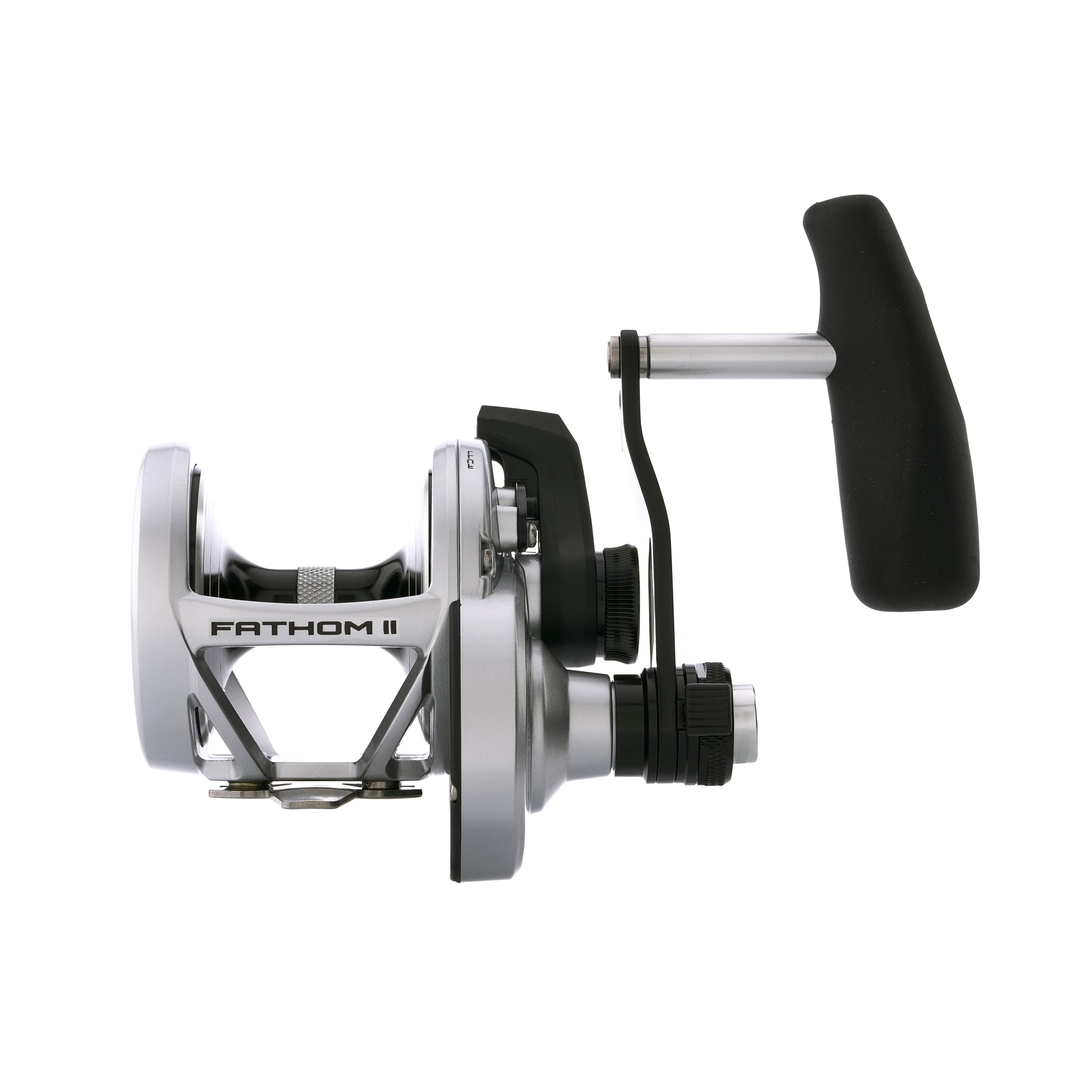

FTHII30LD2LH |
Mono Cap (yds/lb) 405/25 330/30 255/40 |
Braid Cap (yds/lb) 740/40 635/50 525/65 |
Bearings 5 |
Max Drag (lbs) 33LB | 14.9KG |
Gear Ratio 5.5:1 / 2.8:1 |
Line Retrieve (in) 38/19 |
FTHII40NLD2 |
Mono Cap (yds/lb) 410/30 315/40 235/50 |
Braid Cap (yds/lb) 785/50 655/65 565/80 |
Bearings 5 |
Max Drag (lbs) 40LB | 18.1KG |
Gear Ratio 6.0:1 / 1.9:1 |
Line Retrieve (in) 50/16 |

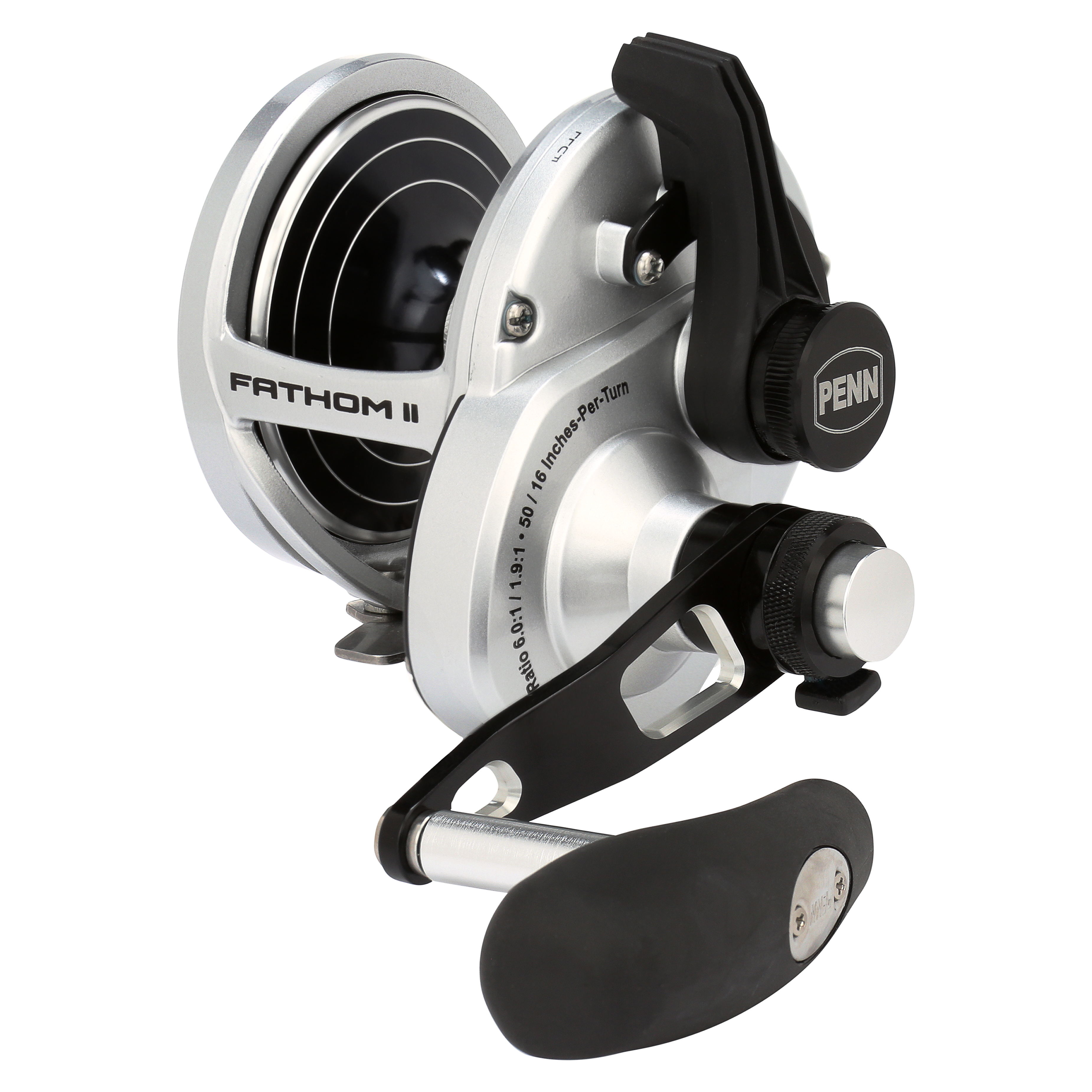

FTHII40NLD2LH |
Mono Cap (yds/lb) 410/30 315/40 235/50< |
Braid Cap (yds/lb) 785/50 355/65 565/80 |
Bearings 5 |
Max Drag (lbs) 40LB | 18.1KG |
Gear Ratio 6.0:1 / 1.9:1 |
Line Retrieve (in) 50/16 |
FTHII60NLD2 |
Mono Cap (yds/lb) 340/50 300/60 215/80 |
Braid Cap (yds/lb) 820/80 700/100 580/130 |
Bearings 5 |
Max Drag (lbs) 50LB | 22.6KG |
Gear Ratio 5.1:1 / 1.6:1 |
Line Retrieve (in) 50/16 |

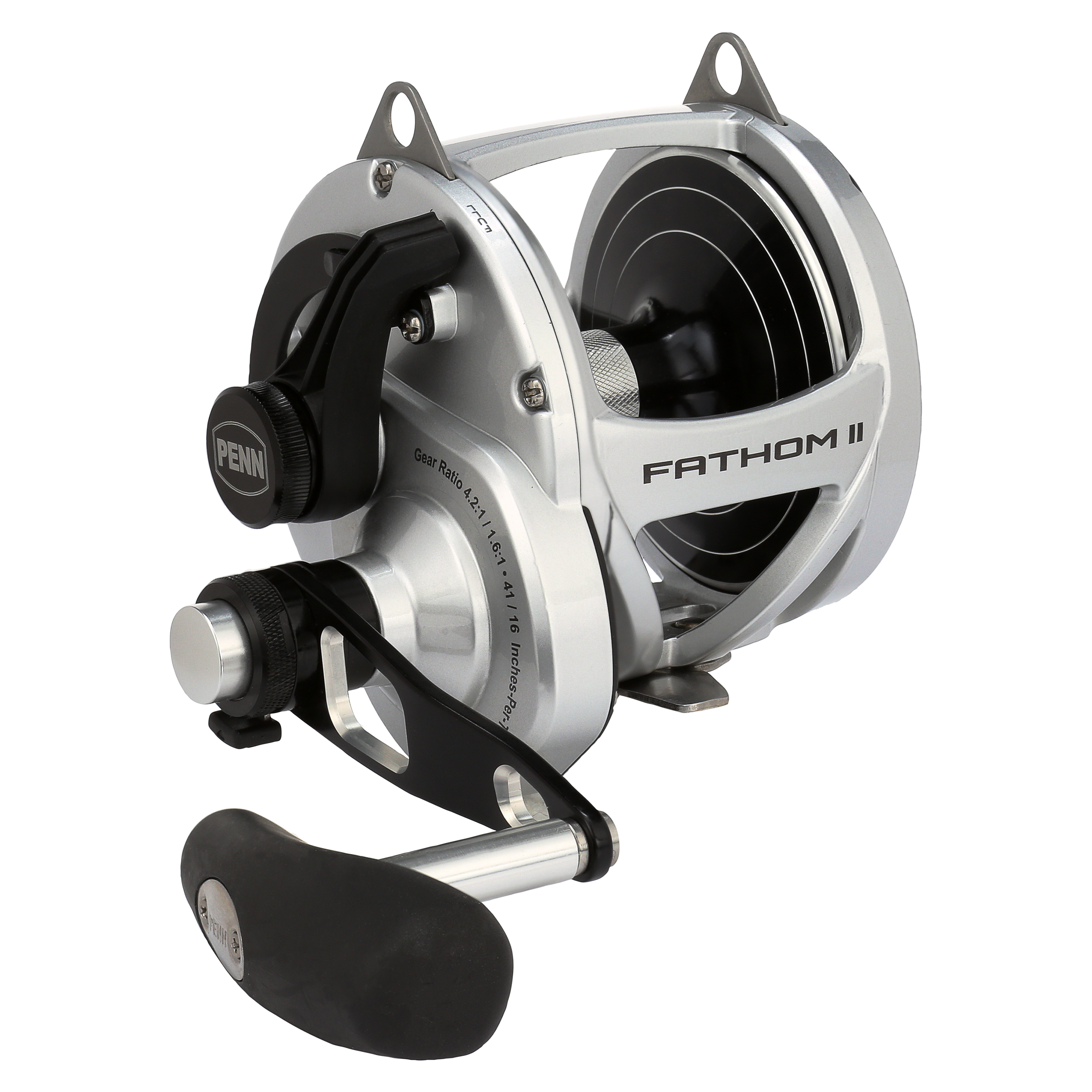

FTHII80LD2 |
Mono Cap (yds/lb) 420/60 300/80 260/100 |
Braid Cap (yds/lb) 980/100 815/130 600/200 |
Bearings 5 |
Max Drag (lbs) 50LB | 22.6KG |
Gear Ratio 4.2:1 / 1.6:1 |
Line Retrieve (in) 41/16 |
FTHii10XNLD2 **SPECIAL ORDER ONLY**
1563174
1563174
$249.95
FTHii15LD2 **SPECIAL ORDER ONLY**
1563175
1563175
$279.95
FTHii15XNLD2 **SPECIAL ORDER ONLY**
1563176
1563176
$309.95
FTHii15XNLD2LH **SPECIAL ORDER ONLY**
1563177
1563177
$309.95
FTHii25NLD2 **SPECIAL ORDER ONLY**
1563176
1563176
$309.95
FTHii25NLD2LH **SPECIAL ORDER ONLY**
1563179
1563179
$309.95
FTHii30LD2 **SPECIAL ORDER ONLY**
1563180
1563180
$309.95
FTHii30LD2LH **SPECIAL ORDER ONLY**
1563180
1563180
$309.95
FTHii40NLD2 **SPECIAL ORDER ONLY**
1563182
1563182
$329.95
FTHii40NLD2LH **SPECIAL ORDER ONLY**
1563183
1563183
FTHii40NLD2LH Fathom II Lever Drag 2-Speed Reel LEFT HANDED
CURRENTLY BACKORDERED NOT AVAILABLE FROM PENN 9/2023
$329.95
FTHii60NLD2 **SPECIAL ORDER ONLY**
1563184
1563184
$329.95
FTHii80LD2 **SPECIAL ORDER ONLY**
1563185
1563185
$349.95
