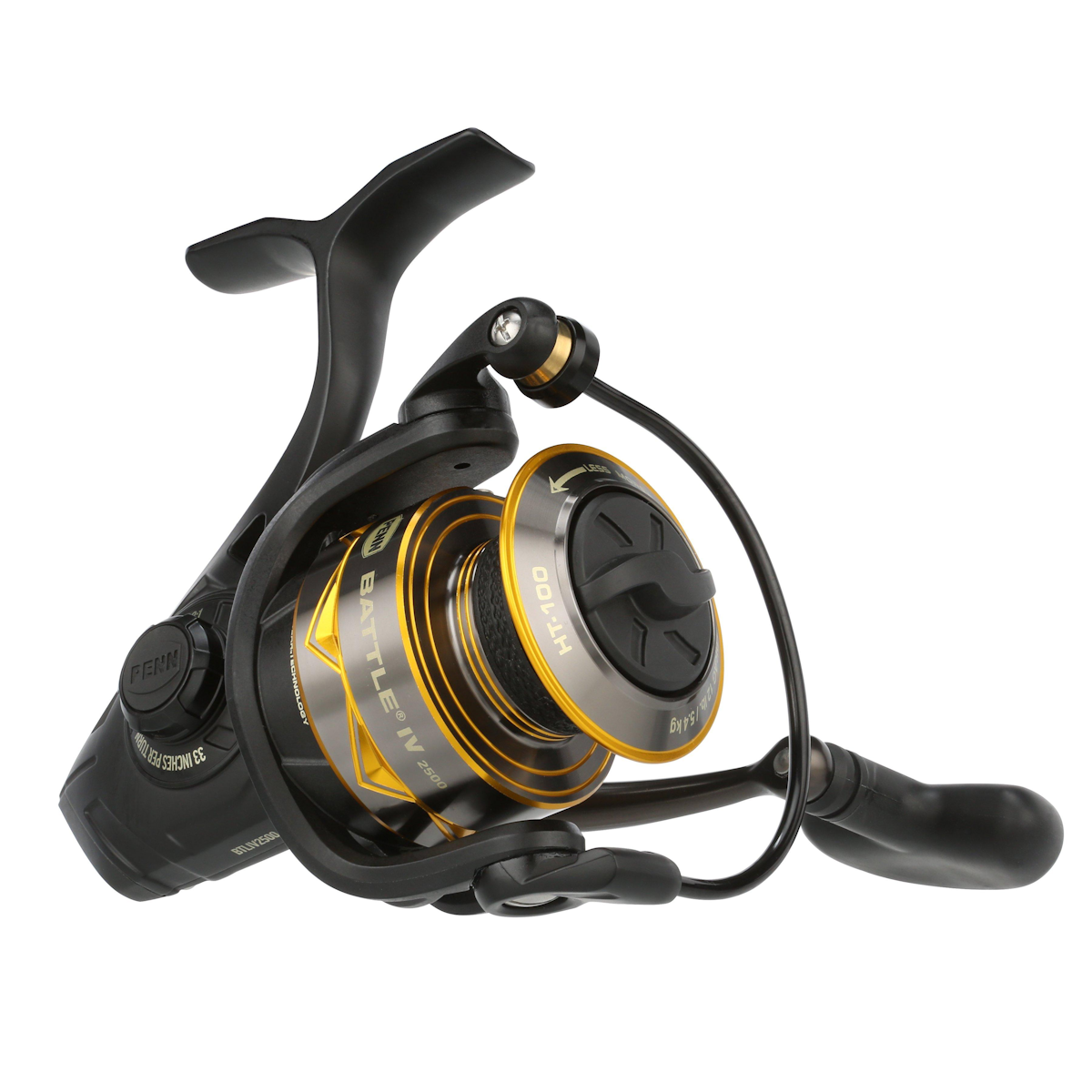

Penn BTLiv2500 (US and AU) Battle IV Series Reel
Scroll down to view and order parts
View / Print Schematic (US)
View / Print Schematic (AU)
Request a Schematic
View / Print Owners Manual
Buy Reel
Buy Reel Cover
Model Specs:
| Mono Cap | Braid Cap | Bearings | Max Drag | Gear Ratio | Line Retrieve |
|---|---|---|---|---|---|
| 279/6 191/8 153/10 (yds/lb)
255/6 175/8 140/10 (m/lb) |
263/10 241/15 175/20 (yds/lb)
240/10 220/15 160/20 (m/lb) |
6 | 12lb | 6kg | 6.2:1 | 33" | 84cm
(Aprox. Based on BTLiii) |
8A-3000SG
008A-1191028☀
008A-1191028☀
8A-3000SG Shim (Brass)
Used on multiple models in different quantities.
$1.30
20-CFT3000
020-1308050☀
020-1308050☀
20-CFT3000 Bearing, Ball Bearing
Used on multiple models in different quantities.
$6.30
34-WRTHii2500
034-1609382
034-1609382
34-WRTHii2500 Arm, Bail Arm
Workaround product replacement: 34-CFT2500 Arm, Bail Arm $3.85
$3.85
49-3000SG
049-1211605☀
049-1211605☀
49-3000SG Spring, Click Tongue Spring
REPLACES 49-3000BTL on some models
$1.30
56-CFT2500
056-1313825◉
056-1313825◉
56-CFT2500 Washer, Drag Washer HT-100
Used on multiple models in different quantities.
$2.25
57-2000SG
057-1192041
057-1192041
57-2000SG Washer, Keyed Drag Washer (Metal)
Used on multiple models in different quantities.
$1.30
98W-3000PUR
098W-1204004☀
098W-1204004☀
98W-3000PUR Washer, Clutch Washer
Used on multiple models in different quantities.
$1.30
