| Reel Specifications | ||||
|---|---|---|---|---|
| Order Parts | View Schematic | Line Cap. & Specs. Info | Owners Manual | Reel Model |
 |  |  |  | 10KG Formula Graphite Leverdrag 2-Speed |
| | | | 15KG Formula Graphite Leverdrag 2-Speed |

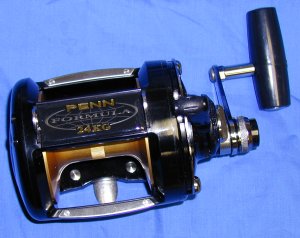

| | | | 24KG Formula Graphite Leverdrag 2-Speed |
| | | | 10LD Formula Graphite Leverdrag 2-Speed |

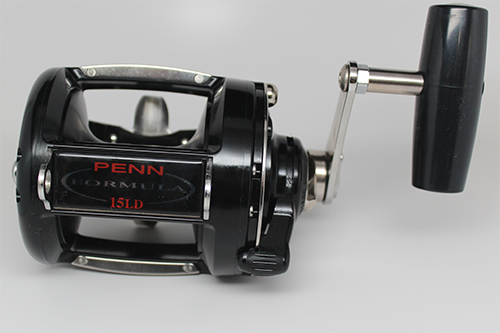

| | | | 15LD Formula Graphite Leverdrag 2-Speed |
| Model | Mono Cap. (yds/lb) | Braid Cap. (yds/lb) | Bearings | Gear Ratio |
Weight (oz) | First Year |
Year Disc. |
|---|---|---|---|---|---|---|---|
10KG
|
800/20 | ~n/a~ | 4 | 3.8:1 | 38 | 2002 | 2005 |
10LD
|
800/20 | ~n/a~ | 4 | 3.8:1 | 38 | 2001 | 2004 |
15KG
|
600/30 | ~n/a~ | 4 | 3.8:1 | 39 | 2001 | 2004 |
15LD
|
600/30 | ~n/a~ | 4 | 3.8:1 | 39 | 2001 | 2004 |
24KG
|
600/50 | ~n/a~ | 4 | 3.4:1 | 50 | 2001 | 2004 |
REEL INFO: Formula Graphite Lever Drag - Penn's Formula Graphite Lever Drag reels feature one piece frames of extremely strong, yet lightweight graphite. Combine a serious set of precision-machined stainless gears with the strength of Penn's graphite, and you have a reel capable of easily handling the stresses of big-game fishing. Two-speed and single-speed models are available for your individual fishing preferences, all of which can handle some serious fishing duties.(2004 Penn Catalog)
HISTORY: The Formula series started in 2001 with the introduction of the 10KG and the 15KG, both two-speed and featuring the new push button system for easy switching of the gears, even mid-battle. In 2002 three new models, the 24KG, also two-speed, and the 10LD and 15LD, both single speed, were added to the Formula series. In 2004 all models were discontinued by Penn and replaced by the Graph-Lite lever drag models.
Name/Series: Formula Graphite Leverdrag 2-Speed
Construction:
Machined, anodized, aluminum spool.
Four sealed, stainless steel ball bearings.
Lightweight graphite frame.
Machined stainless steel gears.
Push-button shift system, on all two-speed models.
