| Reel Specifications | ||||
|---|---|---|---|---|
| Order Parts | View Schematic | Line Cap. & Specs. Info | Owners Manual | Reel Model |
 |  |  |  | TRQS5-B (Black) |
| | | | TRQS5-BBLS (Black & Bail-less) |
| | | | TRQS5-G (Gold) |
| | | | TRQS7-B (Black) |
| | | | TRQS7-BBLS (Black & Bail-less) |
| | | | TRQS7-G (Gold) |
| | | | TRQS9-B (Black) |
| | | | TRQS9-BBLS (Black & Bailess) |
| | | | TRQS9-G (Gold) |
| Model | Mono Cap. (yds/lb) | Braid Cap. (yds/lb) | Bearings | Max Drag | Gear Ratio | Line Retrieve (in) | Weight (oz) | First Manf. | Year Disc. |
|---|---|---|---|---|---|---|---|---|---|
TRQS5-B, TRQS5-BBLS Bailess
|
340/12 • 300/15 • 210/20 | 550/20 • 400/30 • 290/50 | 7+1 | 38 | 5.9:1 | 38 | 21.3 (20.05 bls) | 2010 (2011 bls) | 2016/td> |
TRQS5-G
|
340/12 • 300/15 • 210/20 | 550/20 • 400/30 • 290/50 | 7+1 | 38 | 5.9:1 | 38 | 21.3 | 2010 | 2016 |
| TRQS7-B, TRQS7-BBLS Bailess
|
490/15 • 340/20 • 300/25 | 470/50 • 390/65 • 340/80 | 7+1 | 41 | 5.1:1 | 40 | 28.6 (27.5 bls) | 2010 (2011 bls) | 2016 |
| TRQS7-G
|
490/15 • 340/20 • 300/25 | 470/50 • 390/65 • 340/80 | 7+1 | 41 | 5.1:1 | 40 | 28.6 | 2010 | 2016 |
| TRQS9-B, TRQS9-BBLS Bailess
|
490/20 • 440/25 • 330/30 | 575/65 • 490/80 • 425/100 | 7+1 | 50 | 5.1:1 | 50 | 30.8 (29.7 bls) | 2010 (2011 bls) | 2016 |
| TRQS9-G
|
490/20 • 440/25 • 330/30 | 575/65 • 490/80 • 425/100 | 7+1 | 50 | 5.1:1 | 50 | 30.8 | 2010 | 2016 |

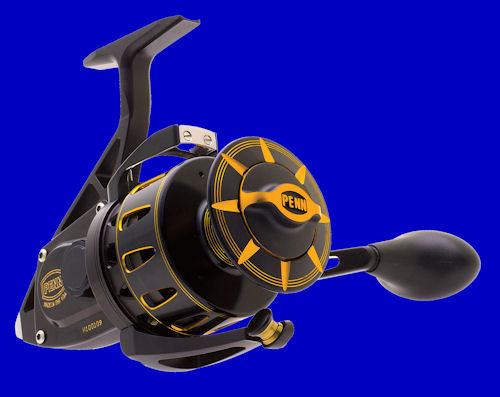

| Image of the Black Bailess version, click to view larger. |
REEL INFO:
Oversized HT-100 Versa Drag™ system allows the angler to quickly select multiple drag settings for just about any fishing situation and provides smooth drag under heavy loads. The bail trip is located on the rotor and allows the angler to select between automatic and manual bail trip functions for better casting control.
(2011 Penn Website)
HISTORY:
Bailess version only made in black.
Construction:
•Full metal body
•One piece machined aluminum frame
•Forged and machined aluminum spool, sideplates, and one piece handle arm
•Fully sealed gearbox and drag system
•Oversize HT-100 Versa-Drag system
•7 sealed stainless steel ball bearings
•Machine-cut marine grade bronze main gear
•Hardened stainless steel pinion gear
•High strength 100% stainless steel bail system
 |
 |
 |
 |
 |
 |
