TROUBLESHOOTING HELP REQUESTED! Please [Contact us] if you find a bad link or get an error message, etc, and send us info about what page or item you were on when you saw the issue, with a link if possible, or a screen shot. Not the error screen, we need to know where you were before the error and what you were clicking on. Thanks! ~Mo, Parts & Tech Support| Reel Specifications | ||||
|---|---|---|---|---|
| Order Parts | View Schematic | Line Cap. & Specs. Info | Owners Manual | Reel Model |
 |  |  |  | SQL12 |
| | | | SQL15 |
| | | | SQL25N |
| | | | SQL30 |
| | | | SQL40 |
| Model | Mono Cap. (yds/lb) | Braid Cap. (yds/lb) | Bearings | Max Drag | Gear Ratio |
Line Retrieve | Weight (oz) | First Year | Year Disc. |
|---|---|---|---|---|---|---|---|---|---|
SQL12
|
270/12 230/15 160/20 |
525/15 430/20 320/30 |
6+1 | 15 lbs | 6.0:1 | 28 | 14.4 | 2011 | |
SQL15
|
280/15 240/17 190/20 |
500/20 380/30 270/50 |
6+1 | 15 lbs | 6.0:1 | 28 | 14.6 | 2011 | |
SQL25N
|
320/20 290/25 220/30 |
650/30 450/50 370/65 |
6+1 | 20 lbs | 6.0:1 | 40 | 18 | 2013 | |
SQL30
|
440/20 300/30 250/40 |
625/50 500/65 440/80 |
6+1 | 20 lbs | 6.0:1 | 40 | 18.5 | 2013 | |
SQL40
|
350/30 300/40 220/50 |
725/50 600/65 525/80 |
6+1 | 20 lbs | 6.0:1 | 40 | 19 | 2013 |
REEL INFO:

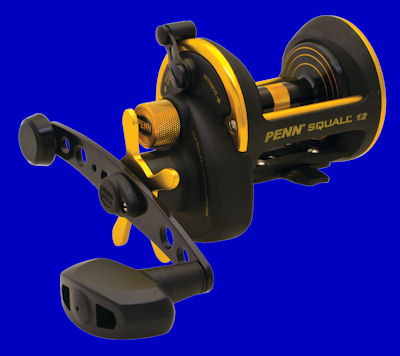

The Squall Star Drag reel features a lightweight graphite frame and sideplate. The Live Spindle™ design and AdjustaMag™ brake creates an extremely castable reel. The HT-100™ Versa-Drag™ system provides smooth performance even under heavy loads.
(Squall™ Star Drag Product Review by PENN®)
HISTORY:
The Squall reel has it's roots in the 525Mag series. The SQL12 is the same as the UK/Euro 515MAG2 and the SQL15 is the same as teh 525MAG2, both are just renamed for U.S. release.
Name/Series: Squall Star Drag
Construction:
Lightweight graphite frame
Machined and anodized aluminum spool
Externally adjustable magnetic casting brake
High-strength marine grade bronze alloy main gear
Quick high-speed gear ratio
Precision-machined stainless steel pinion gear
Live spindle with free floating spool
Versa-Drag™ system allows for multiple drag settings for various fishing conditions
Shielded stainless steel ball bearings
HT-100™ drag washers provide smooth drag under heavy loads
Stainless steel reel stand
Counter-balanced handle with oversized paddle knob
