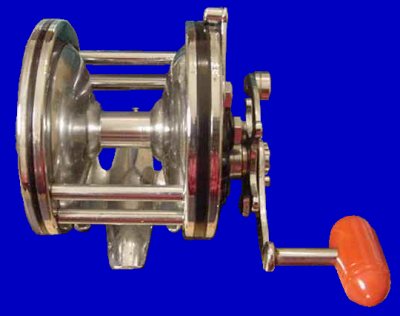

Model Specs:

More Info
  • Hard steel gears.
  • End plates with chrome plated double rings.
  • Free spool clutch.
  • One-shot lubricating system.
  • Equipped with "safety" rod clamps.
Mono Cap
(yds/lb)
Bearings Gear Ratio
225/20 2 3:1
REEL DISCONTINUED BY PENN

Many of these parts will become unavailable in the future.
Click above for more info

2-110-i
002-1180608▲
$10.70
2-110-O
002-1180609▲
2-110-O Ring, Outer Handle Side Ring,

LIMITED QUANTITIES AVAILABLE

$15.55
5-60
005-1180826▲
$21.40
5-60NC
005-1180826NC
$21.40
6-60
006-1180906◉
6-60 Washer, Drag Washer HT-100

Used on multiple models in different quantities.

$1.30
UU-PENN100
CUU-PENN100▲
UU-PENN100 5+1 Drag Washer System (Custom)

Fits: 60, 60-LH, 65, 85, 99, 100M, 110, 140L, 140L-LH, 145, 146L, 149L, 150, 200M, 250, 259, 285M

$35.00
8-60CH
008-1181056☀
8-60CH Washer, Original Chrome Tension Spring Washer (Belleville)

Used on multiple models in different quantities.

$1.50
9-60
9-60
9-60 Sleeve, Spacing Sleeve - (optional variations)

Variations allow for more/less play in handle - see description.

$0.00
10-60
010-1181176▲
10-60 Star Drag Wheel (COARSE Thread - Two Types)

REPLACES ORIGINAL NUMBER 10-140 ON SOME REELS

$5.40
13-140
013-1181333☀
13-140 Gear, Pinion Gear

REPLACES ORIGINAL NUMBER 13-99 ON SOME REELS

$15.55
14-60
014-1181392☀
$2.55
15-60
015-060★
15-60 Dog

Click part number to view detailed notes about this part.

$5.70
16-60CH
016-1181565☀
16-60CH Screw

REPLACES ORIGINAL PART NUMBER 16-60 ON SOME REELS

Used on multiple models in different quantities.

$1.30
17-60CH
017-1181594☀
17-60CH Screw, Bridge, Upper Bridge Screw

REPLACES ORIGINAL PART NUMBER 17-60

Used on multiple models in different quantities.

$1.30
19-110
019-110
$0.00
20-60L
020-1181756
20-60L Spring, Eccentric Spring

REPLACED BY PART NUMBER 20-112H2

Direct product replacement: 20-112H2 Spring, Eccentric Spring $1.30

$0.00
20-112H2
020-1288916♦
20-112H2 Spring, Eccentric Spring

REPLACES ORIGINAL NUMBER 20-60L ON SOME REELS

$1.30
21-66
021-1181835☀
21-66 Lever, Eccentric Lever

REPLACES ORIGINAL NUMBER 21-125 ON SOME REELS

113H Fits All Versions.

$2.95
21-66A Lever Aluminum (CUSTOM)

   Click to view custom eccentric levers now by Cortez Conversions
   Available in Several Colors

22-99
022-1181909☀
22-99 Screw, Eccentric Screw

113H Fits All Versions.

$2.30
23-60
023-1181935☀
23-60 Screw, Large

MULTI USE See Description

$3.70
24-155
024-155▭
24-155 Handle, Flat Rubberized Knob

FITS: Type [A] Bridge/Sleeve

REPLACED BY PART NUMBER 24S-310

LIMITED QUANTITIES AVAILABLE

24S-310 Handle, Brushed Stainless, Flat Rubberized Ergo Knob $0.00

$0.00
24N-155
024N-1182009
24N-155 Handle, Flat Rubberized Ergo Knob

FITS: Type [A] Bridge/Sleeve

REPLACED BY PART NUMBER 24S-310

LIMITED QUANTITIES AVAILABLE

Direct product replacement: 24S-310 Handle, Brushed Stainless, Flat Rubberized Ergo Knob $0.00

$0.00
28-110-I
028-1182368▲
$11.90
32-17
032-1182710☀
32-17 Screw

REPLACES ORIGINAL PART NUMBER 32-110 ON SOME REELS

Used on multiple models in different quantities.

$1.30
35-60
035-1182901☀
$1.90
36-60CH
036-1182980☀
$1.80
37-180
037-1183074☀
37-180 Post, Frame Post


Optional on the 501 and 506HS reels.

$10.45
39-3
039-1183178♦
39-3 Screw

REPLACES ORIGINAL NUMBER 32-18 and 31-110 ON SOME REELS

Used on multiple models in different quantities.
113H Fits All Versions.

$1.30
39-9
039-1183182♦
39-9 Screw

REPLACED BY PART NUMBER 38-110, 38-49 ON SOME REELS

Used on multiple models in different quantities.

$1.30
40-60
040-1183267☀
40-60 Bearing, Non-Handle Side

REPLACES ORIGINAL NUMBER 40-85 ON SOME REELS

$5.50
41-60
041-1183327☀
41-60 Spring

MULTI USE See Description

$1.35
Custom Sleeves Replacing: 98-60, 98-505

Stainless Steel Gear Sleeves by other manufacturers. Click link to view options.

110-60
110-1184437♦
110-60 Screw, Handle Lock Screw

REPLACES ORIGINAL PART NUMBER 23A-60 ON SOME REELS

$1.30
168-60
168-1184802☘
168-60 Wrench

Fits 23-60, 23-16S knurled nuts (See details for list of reels)

$1.30
168-TANI
CUU-168-TANi▭
168-TANI Heavy Duty Penn Handle Nut Wrench by Alan Tani

Aftermarket Part - Not Manf. by Penn (see details for list of reels)
Fits 23-50S, 23-60, 23-114, 23-116, 23-220, 23-FTH20LW, 23-16S knurled nuts

$20.00
168-9
168-1184800
168-9 Wrench

Fits 23-60 knurled nut (see details for list of reels)
partimage

REPLACED BY PART NUMBER 168-60 or 168-TANI

Direct product replacement: 168-60 Wrench $1.30

$0.00
