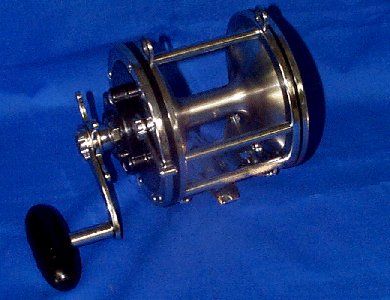

Penn 114 (6/0) Senator Wire Lining Reel
Before Ordering Parts
114 and 114-LH Design Changes - Versions over the years
Beware of different frame revisions over the years. Different frames have different schematics and use different parts. Links to view the various schematics are below
Model Specs:
More Info- One-piece cast brass spool.
- Hard steel driving gears, stainless steel pinion gears.
- Hand polished chromium plated external metal parts.
- Comfortable torpedo handle.
- One-shot lubrication system.
| Mono Cap (yds/lb) |
Braid Cap (yds/lb) |
Bearings | Gear Ratio |
|---|---|---|---|
| 725/30 450/50 390/60 |
1075/80 925/100 750/130 |
2 | 2:1 |
Many of these parts will become unavailable in the future.
Click above for more info
002N-1180665
Used on multiple models in different quantities.
114 Fits Both Half Frames and Full Frame Versions.
114H Fits Full Frame Version.
002-1180620
MULTI USE See Description
Used on multiple models in different quantities.
004-1180765☀
CUU-007C-114▲
007-1181010
007C-1181043▲

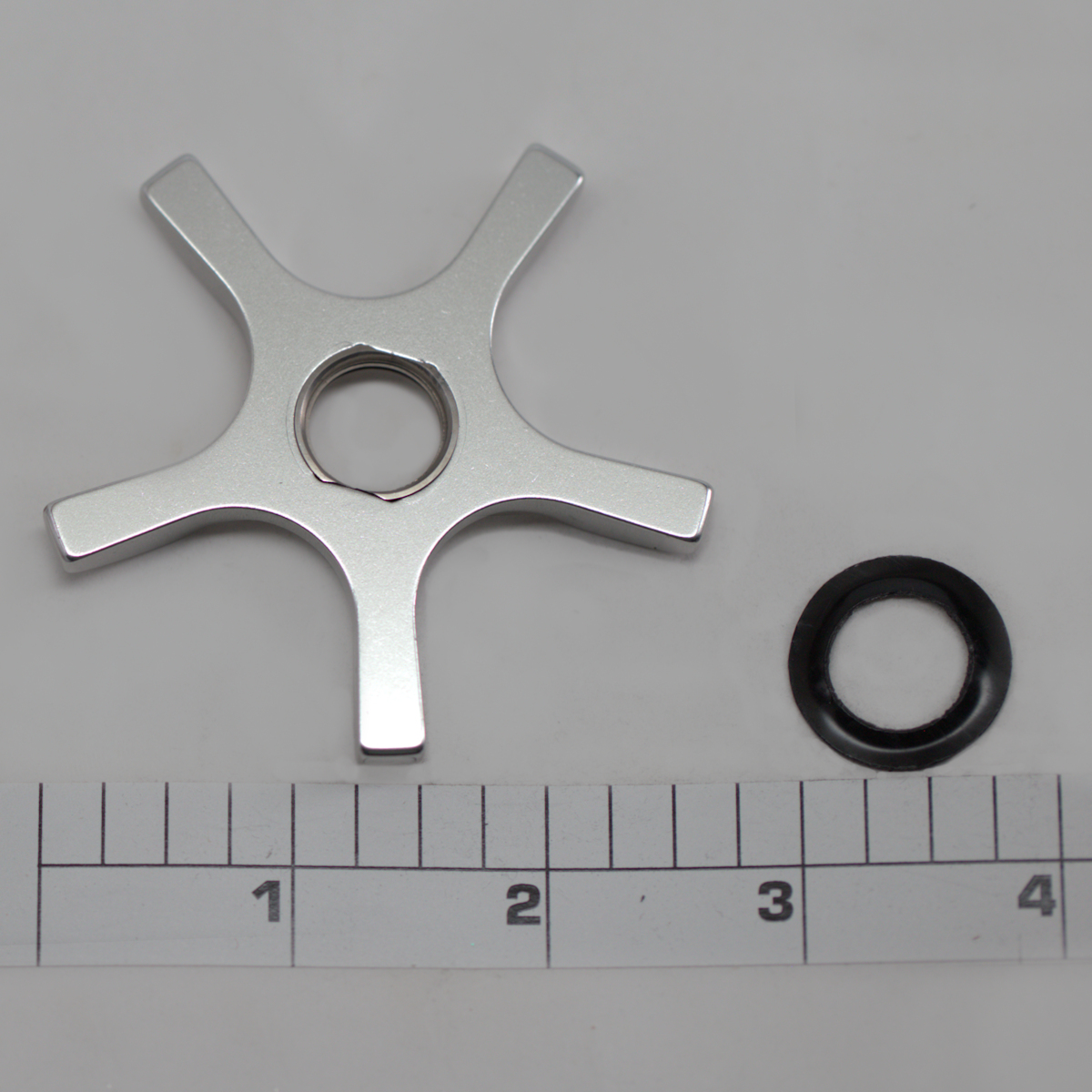

Click to view custom aluminum drag stars now by Pro Challenger
Available in Several Colors
011-1181234☀
114 Fits All Versions.
114H Fits All Versions.
012-1181262☀
114 Fits All Versions.
114H Fits All Versions.
CSD-012-114SS▲
**For use with stainless gear set.
114 Fits All Versions.
114H Fits All Versions.
013-1181321☀
018-1181618☀
020-1181766☀
114 Fits All Versions.
114H Fits All Versions.
021-1181845☀
114 Fits All Versions.
114H Fits All Versions.
024-057
024N-1181979▭
FITS: Type [C] Bridge/Sleeve
REPLACES ORIGINAL NUMBER 24-57 ON SOME REELS
024-114
FITS: Type [C] Bridge/Sleeve
REPLACED BY PART NUMBER 24-57
114 Fits Frame Posts Version.
Direct product replacement: 24-57 Handle, Original Torpedo Knob $46.40
026-1182118
027-1182195
THIS IS A VINTAGE ITEM - MAY HAVE SCRATCHES OR BLEMISHES
114 Fits All Versions.
030-1182622▲
114 Fits Full Frame Version.
114H Fits Half Frame and Full Frame Versions.
031-1182652☀
114H Fits Frame Posts and Half Frame Versions.
032-1182713☀
032-1182712☀
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
033-1182755▲
MULTI USE See Description
Does not fit 30T reel.114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
033-1182760
114 Fits All Versions.
114H Fits All Versions.
Direct product replacement: 33-114H2 Clamp, Rod Clamp, Graphite with ring $13.85
033R-1182779▲
Does not fit 30T reel.
See Description
Used on multiple models in different quantities.
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
033-1180383
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
33C-SQL50LW Clamp, Rod, KIT: Ringed Graphite Clamp with Studs, Nuts and Wrench $21.80
033C-114▭
114 Fits 2nd Generation Half Frame and Full Frame Versions.
114H Fits Half Frame and Full Frame Versions.
033C-1182776
114 Fits 2nd Generation Half Frame and Full Frame Versions.
114H Fits Half Frame and Full Frame Versions.
033C-1191612
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
33-340SP Kit, Clamp, Rod Clamp (Thick) (Graphite) (Black) (7pc Kit) $0.00
033C-1308829▭
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
034-1191620▲
114 Fits 2nd Generation Half Frame with drag washers accessible on the outside of the reel.
034-1182788▲
This is just the stud
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
034-1182804▲
MEASURE your studs, click for more details
114 Fits Full Frame Version.
114H Fits Full Frame Version.
034C-1182862▲
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
038-1183146☀
041-1183330
054-1183857☀
MULTI USE See Description
Used on multiple models in different quantities.
063-1184048☀
MULTI USE See Description
113H Fits Frame Posts with a clicker and Half Frame Versions.
069B-1184129♦
Used on multiple models in different quantities.
098-1184334▲
MULTI USE See Description
Stainless Steel Gear Sleeves by other manufacturers. Click link to view options.
110-1184437♦
REPLACES ORIGINAL PART NUMBER 23A-60 ON SOME REELS
118-1184512☀
136-1184641
140-1184643
114 Fits 2nd Generation Half Frame and Full Frame Versions.
168-1184804☘
FITS 23-50S, 23-114, 23M-114, 23-116, 23-220, 23-FTH20LW, 23-16S, 23-60 knurled nuts
183-183-114TX
114 Fits Full Frame Version.
Workaround product replacement: 183-114HT Frame, Full, Aluminum "114H" $0.00
1178862
FITS REELS:
15LD, 15KG, 24KG
20, 20T, 30 INT, 30S, 30SW, 30T, 30TW, 30VW, 30VSW, 30VSX
50S, 50T, 50ST, 50VSX
114, 114L2, 114H, 114H2, 114H2SP, 114HLW, 114H2LW
340GT, 340GT2, 345GT, 345GT2
FTH60LW
GLD30, GLD30ii
SQL30VSW, SQL50LD, SQL60LD, SQL60LDLH
SQLii30LW, SQLii30LWLC, SQLii30LWLH
WAR30LWLCLH, WAR30LWLH
CUU-168-TANi▭
Aftermarket Part - Not Manf. by Penn (see details for list of reels)
Fits 23-50S, 23-60, 23-114, 23-116, 23-220, 23-FTH20LW, 23-16S knurled nuts
168-1184800
Fits 23-60 knurled nut (see details for list of reels)
REPLACED BY PART NUMBER 168-60 or 168-TANI
Direct product replacement: 168-60 Wrench $1.30
168-1184802☘
Fits 23-60, 23-16S knurled nuts (See details for list of reels)
024-057W
FITS: Type [C] Bridge/Sleeve
REPLACED BY PART NUMBER 24N-57
