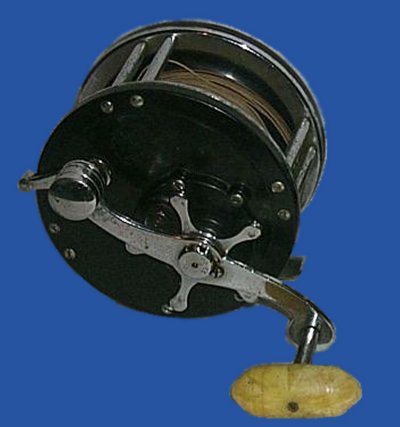

Model Specs:

More Info
  • Narrow aluminum spool
  • Reinforced frame with double pillars.
  • Oversized handle.
  • Back plate fitted with adjustable click.
  • Chrome plated brass rings.
  • Oversized brake lining / HT-100 drags.
  • Optional Anti-reverse.
  • Designed for specialized lines.
  • Two-speed, dual lever spool control (49L and 349HC).
  • Convertible leverage handle (349's)
Mono Cap
(yds/lb)
Bearings Gear Ratio
300/30 2 2.1:1
REEL DISCONTINUED BY PENN

Many of these parts will become unavailable in the future.
Click above for more info

5-149
005-1180857
$11.95
6-60
006-1180906◉
6-60 Washer, Drag Washer HT-100™

Used on multiple models in different quantities.

$1.30
UU-PENN100
CUU-PENN100▲
UU-PENN100 5+1 Drag Washer System (Custom)

Fits: 60, 60-LH, 65, 85, 99, 100M, 110, 140L, 140L-LH, 145, 146L, 149L, 150, 200M, 250, 259, 285M

$35.00
8-60CH
008-1181056☀
8-60CH Washer, Original Chrome Tension Spring Washer (Belleville)

Used on multiple models in different quantities.

$1.50
9-60
9-60
9-60 Sleeve, Spacing Sleeve - (optional variations)

Variations allow for more/less play in handle - see description.

$0.00
10-49
010-1181174▲
$8.75
13-113
013-1181316☀
$13.65
14-60
014-1181392☀
$2.55
15-149
015-1181445
$5.45
16-60CH
016-1181565☀
16-60CH Screw

REPLACES ORIGINAL PART NUMBER 16-60 ON SOME REELS

Used on multiple models in different quantities.

$1.30
17-60CH
017-1181594☀
17-60CH Screw, Bridge, Upper Bridge Screw

REPLACES ORIGINAL PART NUMBER 17-60

Used on multiple models in different quantities.

$1.30
18-60
018-1181615☀
18-60 Spring, Clutch Spring

Used on multiple models in different quantities.

$1.30
19-60
019-1181648☀
$4.60
20-60L
020-1181756
20-60L Spring, Eccentric Spring

REPLACED BY PART NUMBER 20-112H2

Direct product replacement: 20-112H2 Spring, Eccentric Spring $1.30

$0.00
20-112H2
020-1288916♦
20-112H2 Spring, Eccentric Spring

REPLACES ORIGINAL NUMBER 20-60L ON SOME REELS

$1.30
22-60CH
022-1181908☀
22-60CH Screw, Eccentric Screw with washer (Sems) (Silver)

REPLACES ORIGINAL NUMBER 22-60, 22-113HN ON SOME REELS

114H Fits Half Frame Version.

$2.55
23-60
023-1181935☀
23-60 Screw, Large

MULTI USE See Description

$4.55
24-49
024-1181974
$0.00
27-149
027-1182205
27-149 Plate, Non-Handle Side Plate

LIMITED QUANTITIES AVAILABLE

$16.50
28-49-O
028-1182361
$0.00
29P-49
029P-49
29P-49 Spool (Plastic) [Collector; See Notes]

Design change affects this, recommended only for collectors due to pinion gear change. NOT RECOMMENDED FOR FISHING! This could be used for a shelf display reel.

$22.00
29M-49
029M-29M-49
29M-49 Spool, Chrome Over Bronze (Collector)

Design change affects this, recommended only for collectors due to pinion gear change.

$0.00
30-149
030-30-149
$13.75
30-180S
030-1182631▲
30-180S Stand

REPLACED BY PART NUMBER 30-49

Direct product replacement: 30-49 Stand, Modern Chrome Finish $0.00

$13.50
35-60
035-1182901☀
$1.90
36-60CH
036-1182980☀
$1.80
37-49
037-1183056
37-49 Post, Frame Post

Direct product replacement: 37-180 Post, Frame Post $10.45

$0.00
37-180
037-1183074☀
37-180 Post, Frame Post


Optional on the 501 and 506HS reels.

$10.45
38-8
038-1183135♦
38-8 Screw


MULTI USE See Description

$1.30
39-6
039-1183181☀
39-6 Screw


MULTI USE See Description

Used on multiple models in different quantities.

$1.30
40-60
040-1183267☀
40-60 Bearing, Non-Handle Side

REPLACES ORIGINAL NUMBER 40-85 ON SOME REELS

$5.50
41-60
041-1183327☀
41-60 Spring

MULTI USE See Description

$1.35
62-309
062-1184028▲
62-309 Spring, Click Spring, Metal

113H Fits Frame Posts with a clicker and Half Frame Versions.

$3.30
63-209
063-1184048☀
63-209 Screw (for Metal Click Spring)

MULTI USE See Description

113H Fits Frame Posts with a clicker and Half Frame Versions.

$1.30
69B-600
069B-1184129♦
69B-600 | DSS-VP2041 Ring, Retaining Ring (E-clip)

Used on multiple models in different quantities.

$1.50
Custom Sleeves Replacing: 98-60, 98-505

Stainless Steel Gear Sleeves by other manufacturers. Click link to view options.

110-60
110-1184437♦
110-60 Screw, Handle Lock Screw

REPLACES ORIGINAL PART NUMBER 23A-60 ON SOME REELS

$1.30
168-60
168-1184802☘
168-60 Wrench

Fits 23-60, 23-16S knurled nuts (See details for list of reels)

$1.30
168-9
168-1184800
168-9 Wrench

Fits 23-60 knurled nut (see details for list of reels)
partimage

REPLACED BY PART NUMBER 168-60 or 168-TANI

Direct product replacement: 168-60 Wrench $1.30

$0.00
