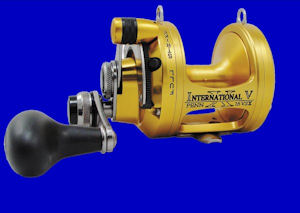

Penn 16VSX - VSX Two Speed Lever Drag Gold & Silver Reel
Before Ordering Parts
Note that there are two versions of this 16VSX reel, based on time of manufacture. Check your reels for their serial number and select the appropriate schematic to look up part numbers. Links to view the various schematics are below
Model Specs:
More Info- Full metal body and sideplates keep precise gear alignment under heavy loads
- Dura-Drag™ washers virtually eliminate hesitation, even under extreme drag settings
- Ratcheted drag lever prevents "drag creep" caused by hours of trolling and vibrations
- Shielded stainless steel ball bearings
- Stainless steel reel stand
- Quick-Shift™ 2-speed system easily shifts into high or low gear
- Push-To-Turn™ preset knob eliminates accidental changes to the drag
- Braid Ready to handle the strain that braided lines put on a reel
- 2 Reel color options: gold and silver
| Mono Cap (yds/lb) |
Braid Cap (yds/lb) |
Bearings | Max Drag | Gear Ratio | Line Retrieve |
|---|---|---|---|---|---|
| 1075/16 700/20 480/30 |
825/65 700/80 600/100 |
4 | 30lbs. / 42lbs. | 4.3:1 / 1.7:1 | 36/15 |
001N-1203001
REPLACES ORIGINAL NUMBER 1-16VS ON SOME REELS
001N-1389476
004-1180748☀
MULTI USE See Description
Used on multiple models in different quantities.
008A-1181122
008A-1229046☀
Used on multiple models in different quantities.
018-1191204☀
018-1181624☀
Used on multiple models in different quantities.
020-1181792☀
024C-1191334☀
REPLACES ORIGINAL NUMBER 24C-50 ON SOME REELS
024C-1182092☀
For football-shaped handle knob
025-1191347
025S-1206009▭
REPLACES ORIGINAL PART NUMBER 25-50M ON SOME REELS
025S-1207739▭
031T-1182700☀
Used on multiple models in different quantities.
033-1191592▲
REPLACES ORIGINAL NUMBERS 33-16S, 33-TRQS ON SOME REELS
033C-1191604
033C-1191605
036C-36C-16VS-B
036N-1183047☀
MULTI USE See Description
REPLACES ORIGINAL NUMBER 36N-50 ON SOME REELS
038-1191723☀
Multiple Quantities See Description
Used on multiple models in different quantities.
039-1191739☀
Used on multiple models in different quantities.
044-1183459☀
081-1184201
THIS PART HAS BEEN REPLACED BY 81-16VS on the 16VSX and 16VS reels
Click part number above for detailed explanation.
101-1184403☀
Used on multiple models in different quantities.
124L-1192721
Direct product replacement: 124L-12VS Bridge Cover Assembly $105.60
172-1184821
REPLACED BY PART NUMBER 172N-30VS
Direct product replacement: 172N-30VS Cap, Shift Button Or Plunger Cap, Metal, Chrome $12.45
172N-1226062▲
REPLACES ORIGINAL NUMBER 172-30VS ON SOME REELS
173-1192385
THIS PART IS NO LONGER USED IN THE 16VSX REEL.
Click part number above for detailed explanation.
173-1184835☀
MULTI USE See Description
168-1184802☘
Fits 23-60, 23-16S knurled nuts (See details for list of reels)
168-1184801▲
Fits Reels: International 16VS, 16VSX, 24KG, 30VSW, 50VSW, 80VSW, GLD50ii
1178861
FITS REELS (and LH models):
10LD, 10KG, 12LT, 12H, 12V, 12VS, 12VSX, 15LD, 16S, 16VS, 16VSX
113, 113L2, 113H, 113H2, 113HSP, 113H2SP, 113HLW, 113H2LW, 113HN, 113MTL, US113, US113N, US113W
220GTO, 230GTO
330GT, 330GT2, 330LD
DFN25LW, DFN30, DFN40LW
FTH25LW, FTH40LW, FTH60LW
GLD20, GLD20ii
SQL16VS. SQL30, SQL30LD, SQL40, SQL40LD
SQLii30SD, SQLii40SD
SQLii15LW, SQLii20LW,SQLii20LWLC,SQLii20LWLH
WAR15LWLC, WAR15LWLCLC, WAR20LWLC, WAR20LWLCLH
WAR30LW, WAR30LWLC
