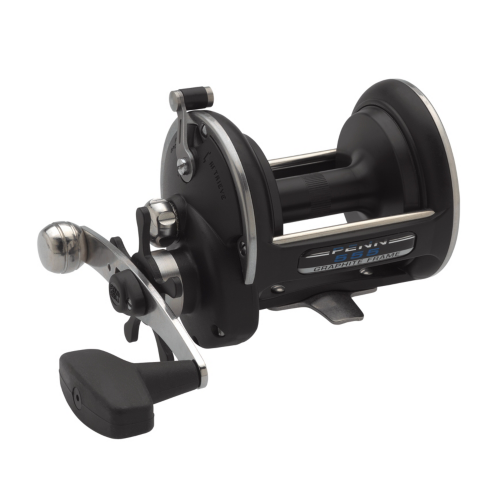

TROUBLESHOOTING HELP REQUESTED! Please [Contact us] if you find a bad link or get an error message, etc, and send us info about what page or item you were on when you saw the issue, with a link if possible, or a screen shot. Not the error screen, we need to know where you were before the error and what you were clicking on. Thanks! ~Mo, Parts & Tech SupportPenn 555GS GS Series Reel
Model Specs:
More Info- Lightweight, one piece graphite composite frame.
- Corrosion resistant metal inserts in the spacer bars for high strength and precision alignment.
- Durable black anodized aluminum spool.
- Stainless steel pinion gears.
- Bronze alloy main gears.
- Stainless steel sealed ball bearings.
- Stainless Steel or aluminum side plate rings for strength and good looks.
- HT-100 multi-disc star enhanced drag system.
- High speed gear ratios for fast cranking lures.
- Gear kits to change retrieves to 4.25-1, 5.3-1 or 6-1
- Heavy duty replaceable clicker system.
- Graphite composite free spool lever.
- Spool tension control.
- High strength, low profile, graphite composite rod clamp.
| Mono Cap (yds/lb) |
Bearings | Gear Ratio |
|---|---|---|
| 600/20 | 4 | 5.3:1 |
005-555
Direct product replacement: 5N-555 Gear, Main Gear $27.85
006-525MAG
REPLACED BY PART NUMBER 6N-525MAG
Used on multiple models in different quantities.
006N-1180922◉
Used on multiple models in different quantities.
007-1181005★
Used on multiple models in different quantities.
008-60B♦
Used on multiple models in different quantities.
008-1181056☀
Used on multiple models in different quantities.
010-1181223
Direct product replacement: 10N-555 Star, Drag Star $11.85
018-1181623☀
Used on multiple models in different quantities.
020-1288917♦
REPLACES ORIGINAL NUMBER 20-155 and 20-220 ON SOME REELS
020-1181769
Used on multiple models in different quantities.
113H Fits All Versions.
Direct product replacement: 20-113H2 Spring, Eccentric Spring $1.30
020-1181792☀
024-1182048
FITS: Type [E] Bridge/Sleeve
032-1182708☀
Used on multiple models in different quantities.
033-1191592▲
REPLACES ORIGINAL NUMBERS 33-16S, 33-TRQS ON SOME REELS
033-113SP
Direct product replacement: 33N-113SP Clamp, Rod, KIT: (Thick) Graphite Clamp with Studs and Nuts $14.60
033C-1182773▭
033C-1191613
033i-113SP
033N-1182754☘
REPLACES ORIGINAL NUMBER 33-113 ON SOME REELS
033N-1180382▭
034-1182788▲
This is just the stud
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
034C-1182862▲
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
046-1183567☀
055-1183873▲
Used on multiple models in different quantities.
062-1184029☀
Used on multiple models in different quantities.
062B-1184036☀
REPLACED BY PART NUMBER 62S-310
Direct product replacement: 62S-310 Pin, Click Pin (uses 2) $1.50
063-1184052☀
063A-1184057
069B-1184129♦
Used on multiple models in different quantities.
086-1184251☀
Used on multiple models in different quantities.
149-1184702♦
Used with the graphite clamps 33-340, 33N-113, aluminum 33-TRQ, 33-TRQS and iron alloy clamp 33i-113 and 33-16VS
168-1192371▲
Fits Reels: 30VSX, 50VSW2 50VSX, 70VS, GLD50ii, 112H2, 113L2, 113H2, 113H2-LH, 113H2LW, 113H2SP, 113HN, 330LD, 515MAG2, 525GS, 525MAG, 525MAG2, 525MAGT, 535GS, 535MAG, 545GS, 545MAG, 555GS, 555MAG, 975, 975CS, 975CSLD, 975LD, SQL12, SQL15, TRQ100, TRQ200, TRQ300
168-1192728▲
Fits 23-555 and 23-965 handle nuts
( see details for list of reels )
1178860
FITS REELS:
9M, 109M, 209M
110, 111, 112, 112H, 112H2
140L, 145, 146L, 220
310GT, 310GTi, 310GT2, 320GT, 320GTi, 320GT2, 320LD
500L, 501, 525, 525GS, 525MAG, 535, 535GS, 545, 545GS, 555, 555GS
965, 975, 975CS, 975CSLD, 975SLD
DFN20LW, DFN25LW, DFN30
FTH12, FTH15, FTH15LD2, FTH15LD, FTH15LW, FTH20LW, FTH25N, FTH25NLD, FTH25NLD2, FTH25LW, FTH30, FTH30LD, FTH30LD2, FTH30LD2LH, FTH25NLD2, FTH30LD, FTH40
SQL200LP, SQL200LPLH,SQL200LPHS,SQL300LP, SQL300LPLH,SQL300LPHS,SQL400LP, SQL400LPLH,SQL400LPHS
SQL12, SQL15, SQL15LW, SQL20LW, SQL25N
SQLii12SD, SQLii15SD, SQLii15SDCS, SQLii25NSD
TRQ15LD2, TRQ25NLD2, TRQ30LD2, TRQ12, TRQ15, TRQ25, TRQ30, TRQ40, TRQ100, TRQ100LD, TRQ200
WAR15LW, WAR15LWLH
