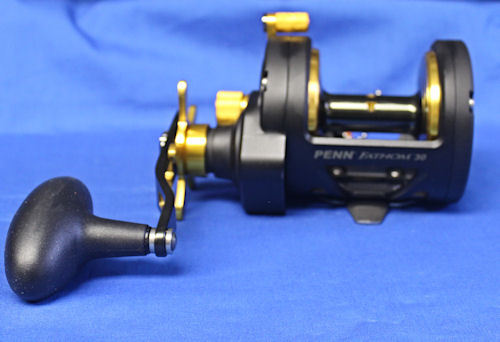

Penn FTHSD30 Fathom Star Drag Reel
Model Specs:
More Info- Full metal body and sideplates keep precise gear alignment under heavy loads
- Machine-cut marine grade bronze main gear with hardened stainless steel pinion
- Versa-Drag™ system with HT-100™ washers
- Live Spindle Design with free floating spool
- Internally adjustable centrifugal braking system: Configuration Instructions
- Line Capacity Rings
- 5+1 shielded stainless steel bearing system
- Instant anti-reverse bearing with silent back up ratchet
| Mono Cap (yds/lb) |
Braid Cap (yds/lb) |
Bearings | Max Drag | Gear Ratio | Line Retrieve |
|---|---|---|---|---|---|
| 440/20 300/30 250/40 |
625/50 500/65 440/80 |
5+1 | 25 lbs | 6.0:1 | 40 |
CPC-P304FTHSD481
006-1237037◉
Used on multiple models in different quantities.
015-1188675☀
Used on multiple models in different quantities.
016-1188686☀
Used on multiple models in different quantities.
018A-1188714☀
REPLACES ORIGINAL NUMBER 18A-20 ON SOME SCHEMATICS
024-1242787▭
FITS: Type [V] Bridge/Sleeve
REPLACES ORIGINAL NUMBER 24-20 and replaced by 24-FTH20LW ON SOME REELS
029-1242822
Direct product replacement: 29L-FTHSD30 Spool Assembly $83.05
033-1191592▲
REPLACES ORIGINAL NUMBERS 33-16S, 33-TRQS ON SOME REELS
033N-1182754☘
REPLACES ORIGINAL NUMBER 33-113 ON SOME REELS
034-1182788▲
This is just the stud
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
034C-1182862▲
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
038A-1188649☀
Used on multiple models in different quantities.
040D-1125771☀
Used on multiple models in different quantities.
040-1188661☀
Used on multiple models in different quantities.
055-1214665▲
Used on multiple models in different quantities.
055L-1192031☀
Used on multiple models in different quantities.
069-1188657☀
Used on multiple models in different quantities.
086-1184251☀
Used on multiple models in different quantities.
120-1308766☀
Used on multiple models in different quantities.
168-1184804☘
FITS 23-50S, 23-114, 23M-114, 23-116, 23-220, 23-FTH20LW, 23-16S, 23-60 knurled nuts
CUU-168-TANi▭
Aftermarket Part - Not Manf. by Penn (see details for list of reels)
Fits 23-50S, 23-60, 23-114, 23-116, 23-220, 23-FTH20LW, 23-16S knurled nuts
023A-1188717☀
REPLACES ORIGINAL NUMBER 23A-20 ON SOME SCHEMATICS
024-1188716▭
FITS: Type [V] Bridge/Sleeve
REPLACES ORIGINAL NUMBER 24-20 and 24-FTHSD12 ON SOME REELS
24-FTHSD12 Handle, Black & Gold, Rubberized Football Knob $21.85
