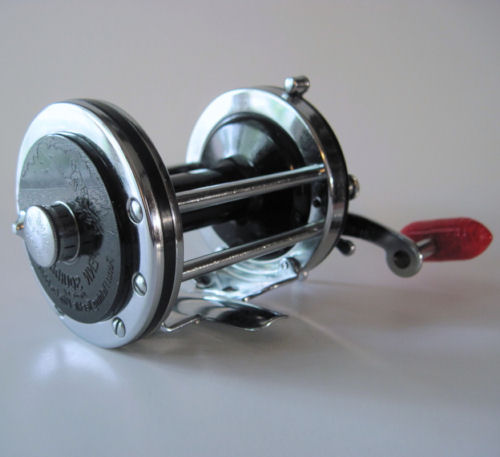

TROUBLESHOOTING HELP REQUESTED! Please [Contact us] if you find a bad link or get an error message, etc, and send us info about what page or item you were on when you saw the issue, with a link if possible, or a screen shot. Not the error screen, we need to know where you were before the error and what you were clicking on. Thanks! ~Mo, Parts & Tech SupportPenn 140L-LH Squidder Conventional Reel
Model Specs:
More Info- Reinforced side plates.
- Counterbalanced soft grip handle.
- Chrome plated brass exposed metal componants.
- Stainless steel ball bearings and pinion gear and a high strenth bronze alloy main gear.
- Easy to operate star drag.
- HT-100 multi-disc star drag.
- Counterbalanced soft grip handle.
- Dual Eccentric System.
| Mono Cap (yds/lb) |
Braid Cap (yds/lb) |
Bearings | Max Drag | Gear Ratio | Line Retrieve |
|---|---|---|---|---|---|
| 350/20 | -- | 1 + 1 BB | -- | 3.3:1 | -- |
Take Apart Construction
The term "Take-Apart" refers to the feature of quick and easy take-down of the reel for cleaning or spool change. To effect this, unscrew the knurled take-apart screw ( part TA 200 ) three turns to the left and then pull it outward ( away from plate ), at the same time rotate the right side plate about 1/4 inch to the left ( counter-clockwise ) and pull it away from the reel frame, taking care not to drop the freed spool. To re-assemble, reverse the entire operation, making sure to screw the take-apart screw into the reel frame, as otherwise the right side plate might be lost.
TA-200 became 129-200
Many of these parts will become unavailable in the future.
Click above for more info
006-1180906◉
Used on multiple models in different quantities.
006SP-1180395◉▭
CUU-PENN100▲
Fits: 60, 60-LH, 65, 85, 99, 100M, 110, 140L, 140L-LH, 145, 146L, 149L, 150, 200M, 250, 259, 285M
CSD-006-140SD▲
008-1181056☀
Used on multiple models in different quantities.
9-60
Variations allow for more/less play in handle - see description.
010-1181188
REPLACES ORIGINAL NUMBER 10-60LH ON SOME REELS
014C-1181414
Workaround product replacement: 14C-140-SUB Spring, Dog Spring (Other Manufacturer) $1.50
016-1181565☀
REPLACES ORIGINAL PART NUMBER 16-60 ON SOME REELS
Used on multiple models in different quantities.
017-1181594☀
REPLACES ORIGINAL PART NUMBER 17-60
Used on multiple models in different quantities.
018-1181615☀
Used on multiple models in different quantities.
022-1181912☀
MULTI USE See Description
Used on multiple models in different quantities.
024-155▭
FITS: Type [A] Bridge/Sleeve
REPLACED BY PART NUMBER 24S-310
LIMITED QUANTITIES AVAILABLE
24S-310 Handle, Brushed Stainless, Flat Rubberized Ergo Knob $0.00
024N-1182009
FITS: Type [A] Bridge/Sleeve
REPLACED BY PART NUMBER 24S-310
LIMITED QUANTITIES AVAILABLE
Direct product replacement: 24S-310 Handle, Brushed Stainless, Flat Rubberized Ergo Knob $0.00
031-1182654☀
032-18
MULTI USE See Description
REPLACED BY PART NUMBER 39-3, LIMITED QUANTITIES AVAILABLE
Used on multiple models in different quantities.
113H Fits Frame Posts Version with a clicker.
Direct product replacement: 39-3 Screw $1.30
033-1191592▲
REPLACES ORIGINAL NUMBERS 33-16S, 33-TRQS ON SOME REELS
033N-1182754☘
REPLACES ORIGINAL NUMBER 33-113 ON SOME REELS
033R-1182783▲
033-113SP
Direct product replacement: 33N-113SP Clamp, Rod, KIT: (Thick) Graphite Clamp with Studs and Nuts $14.60
033C-1182773▭
033C-1191611▭
113H Fits All Versions.
033CR-200
113H Fits both Frame Posts Versions.
033N-1180382▭
033i-113SP
034-1182788▲
This is just the stud
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
034C-1182862▲
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
034-1182810▲
This can be used as a sub for the 34-49 or 34-45 if wanting a LONGER stud screw
034C-1182875▲
036-1182994☀
Used on multiple models in different quantities.
037-1183061
Direct product replacement: 37-113 Post, Frame Post (Brushed Stainless) $5.50
038-1183134☀
039-1183178♦
REPLACES ORIGINAL NUMBER 32-18 and 31-110 ON SOME REELS
Used on multiple models in different quantities.
113H Fits All Versions.
039-1183182♦
REPLACED BY PART NUMBER 38-110, 38-49 ON SOME REELS
Used on multiple models in different quantities.
062-1184028▲
113H Fits Frame Posts with a clicker and Half Frame Versions.
063-1184048☀
MULTI USE See Description
113H Fits Frame Posts with a clicker and Half Frame Versions.
098-1184341
110-1184437♦
REPLACES ORIGINAL PART NUMBER 23A-60 ON SOME REELS
149-1184702♦
Used with the graphite clamps 33-340, 33N-113, aluminum 33-TRQ, 33-TRQS and iron alloy clamp 33i-113 and 33-16VS
168-1184802☘
Fits 23-60, 23-16S knurled nuts (See details for list of reels)
168-1184800
Fits 23-60 knurled nut (see details for list of reels)
REPLACED BY PART NUMBER 168-60 or 168-TANI
Direct product replacement: 168-60 Wrench $1.30
CUU-168-TANi▭
Aftermarket Part - Not Manf. by Penn (see details for list of reels)
Fits 23-50S, 23-60, 23-114, 23-116, 23-220, 23-FTH20LW, 23-16S knurled nuts
