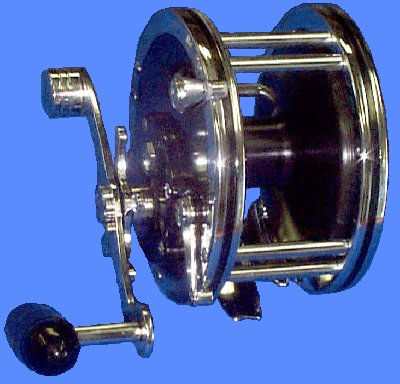

Model Specs:

More Info
  • Narrow aluminum spool
  • Reinforced frame with double pillars.
  • Oversized handle.
  • Back plate fitted with adjustable click.
  • Chrome plated brass rings.
  • Oversized brake lining / HT-100 drags.
  • Optional Anti-reverse.
  • Designed for specialized lines.
  • Two-speed, dual lever spool control (49L and 349HC).
  • Convertible leverage handle (349's)
Mono Cap
(yds/lb)
Bearings Gear Ratio
300/30 2 3.5:1
REEL DISCONTINUED BY PENN

Many of these parts will become unavailable in the future.
Click above for more info

49L-LH
49L Converting To Left Hand Parts

MUST READ!
Conversion not possible - Repair Parts Only

$0.00
7-49
007-1181005★
7-49 Washer, Drag, Metal Earred Drag Washer ONLY

Used on multiple models in different quantities.

$2.20
8-60CH
008-1181056☀
8-60CH Washer, Original Chrome Tension Spring Washer (Belleville)

Used on multiple models in different quantities.

$1.50
9-60
9-60
9-60 Sleeve, Spacing Sleeve - (optional variations)

Variations allow for more/less play in handle - see description.

$0.00
14-60
014-1181392☀
$2.55
15-49LH
015-1181423
$4.95
16-60CH
016-1181565☀
16-60CH Screw

REPLACES ORIGINAL PART NUMBER 16-60 ON SOME REELS

Used on multiple models in different quantities.

$1.30
17-60CH
017-1181594☀
17-60CH Screw, Bridge, Upper Bridge Screw

REPLACES ORIGINAL PART NUMBER 17-60

Used on multiple models in different quantities.

$1.30
19-49
019-1181645
$7.35
19-60
019-1181648☀
$4.60
20-113H2
020-1288917♦
20-113H2 Spring, Eccentric Spring

REPLACES ORIGINAL NUMBER 20-155 and 20-220 ON SOME REELS

$1.30
20-155
020-1181769
20-155 Spring, Eccentric Spring

Used on multiple models in different quantities.
113H Fits All Versions.
Direct product replacement: 20-113H2 Spring, Eccentric Spring $1.30

$0.00
22-60CH
022-1181908☀
22-60CH Screw, Eccentric Screw with washer (Sems) (Silver)

REPLACES ORIGINAL NUMBER 22-60, 22-113HN ON SOME REELS

114H Fits Half Frame Version.

$2.55
23-60
023-1181935☀
23-60 Screw, Large

MULTI USE See Description

$3.70
24-49
024-1181974
$0.00
28-49-O
028-1182361
$0.00
29M-49
029M-29M-49
29M-49 Spool, Chrome Over Bronze (Collector)

Design change affects this, recommended only for collectors due to pinion gear change.

$0.00
29P-49
029P-49
29P-49 Spool (Plastic) [Collector; See Notes]

Design change affects this, recommended only for collectors due to pinion gear change. NOT RECOMMENDED FOR FISHING! This could be used for a shelf display reel.

$22.00
34-200
034-1182810▲
34-200 Screw, Clamp Screw (Longer for Thin Clamp) ONLY (uses 2)

This can be used as a sub for the 34-49 or 34-45 if wanting a LONGER stud screw

$2.55
35-60
035-1182901☀
$1.90
36-60CH
036-1182980☀
$1.80
37-49
037-1183056
37-49 Post, Frame Post

Direct product replacement: 37-180 Post, Frame Post $10.45

$0.00
37-180
037-1183074☀
37-180 Post, Frame Post


Optional on the 501 and 506HS reels.

$10.45
39-3
039-1183178♦
39-3 Screw

REPLACES ORIGINAL NUMBER 32-18 and 31-110 ON SOME REELS

Used on multiple models in different quantities.
113H Fits All Versions.

$1.30
39-9
039-1183182♦
39-9 Screw

REPLACED BY PART NUMBER 38-110, 38-49 ON SOME REELS

Used on multiple models in different quantities.

$1.30
40-60
040-1183267☀
40-60 Bearing, Non-Handle Side

REPLACES ORIGINAL NUMBER 40-85 ON SOME REELS

$5.50
41-60
041-1183327☀
41-60 Spring

MULTI USE See Description

$1.35
62-309
062-1184028▲
62-309 Spring, Click Spring, Metal

113H Fits Frame Posts with a clicker and Half Frame Versions.

$3.30
63-209
063-1184048☀
63-209 Screw (for Metal Click Spring)

MULTI USE See Description

113H Fits Frame Posts with a clicker and Half Frame Versions.

$1.30
69B-600
069B-1184129♦
69B-600 | DSS-VP2041 Ring, Retaining Ring (E-clip)

Used on multiple models in different quantities.

$1.50
86-49L
086-1184251☀
86-49L Washer, Drag, Metal Drag Washer ONLY

Used on multiple models in different quantities.

$1.50
98-60LH
098-1184329▲ [Discontinued by Penn]
$0.00
110-60
110-1184437♦
110-60 Screw, Handle Lock Screw

REPLACES ORIGINAL PART NUMBER 23A-60 ON SOME REELS

$1.30
168-60
168-1184802☘
168-60 Wrench

Fits 23-60, 23-16S knurled nuts (See details for list of reels)

$1.30
168-9
168-1184800
168-9 Wrench

Fits 23-60 knurled nut (see details for list of reels)
partimage

REPLACED BY PART NUMBER 168-60 or 168-TANI

Direct product replacement: 168-60 Wrench $1.30

$0.00
