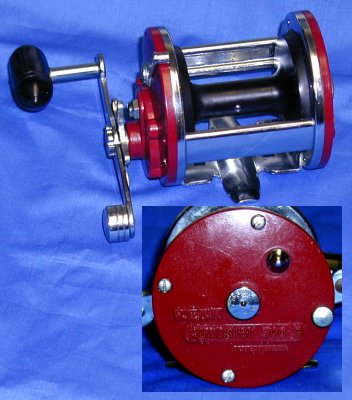

TROUBLESHOOTING HELP REQUESTED! Please [Contact us] if you find a bad link or get an error message, etc, and send us info about what page or item you were on when you saw the issue, with a link if possible, or a screen shot. Not the error screen, we need to know where you were before the error and what you were clicking on. Thanks! ~Mo, Parts & Tech SupportPenn 500S Jigmaster Reel
Model Specs:
More Info- Reinforced side plates.
- Counterbalanced soft grip handle.
- Chrome plated brass exposed metal componants.
- Stainless steel ball bearings and pinion gear and a high strenth bronze alloy main gear.
- Easy to operate star drag.
- HT-100 multi-disc star drag.
- Counterbalanced soft grip handle.
- Dual Eccentric System.
| Mono Cap (yds/lb) |
Braid Cap (yds/lb) |
Bearings | Gear Ratio |
|---|---|---|---|
| 300/30 | 2 | 4.1 |
Take Apart Construction
The term "Take-Apart" refers to the feature of quick and easy take-down of the reel for cleaning or spool change. To effect this, unscrew the knurled take-apart screw ( part TA 200 ) three turns to the left and then pull it outward ( away from plate ), at the same time rotate the right side plate about 1/4 inch to the left ( counter-clockwise ) and pull it away from the reel frame, taking care not to drop the freed spool. To re-assemble, reverse the entire operation, making sure to screw the take-apart screw into the reel frame, as otherwise the right side plate might be lost.
TA-200 became 129-200
Many of these parts will become unavailable in the future.
Click above for more info
003-500PRO
Please read the detailed description for this custom aftermarket part!
3-113H-PRO
Please read the detailed description for this custom aftermarket part!
P316112H501▲
006-1180917◉
MULTI USE See Description
Used on multiple models in different quantities.
CUU-PENN500▲
Fits: 112H, 210M, 500, 500S, 501, 505HS, 506HS, 309M, Newell 200/300/400Series, ProGear 255/251
007C-1181051▲
See design change notes
008-1181056☀
Used on multiple models in different quantities.
9-60
Variations allow for more/less play in handle - see description.
010-1181176▲
REPLACES ORIGINAL NUMBER 10-140 ON SOME REELS
010-1181200▲
Click to read more about the two types of 10-505 stars
CPC-011-99SS▲
**For use with stainless P316112H501 gear set.
012-1181270☀
REPLACES ORIGINAL PART NUMBER 12-99, 12-110 ON SOME REELS
CSD-012-500-SS▲
**For use with stainless P316112H501 gear set.
013-1181347☀
REPLACES ORIGINAL NUMBER 13-99 and 13-66 ON THE 250,259 and original 112H reels
016-1181565☀
REPLACES ORIGINAL PART NUMBER 16-60 ON SOME REELS
Used on multiple models in different quantities.
017-1181594☀
REPLACES ORIGINAL PART NUMBER 17-60
Used on multiple models in different quantities.
018-1181615☀
Used on multiple models in different quantities.
020-1181756
REPLACED BY PART NUMBER 20-112H2
Direct product replacement: 20-112H2 Spring, Eccentric Spring $1.30
020-1288916♦
REPLACES ORIGINAL NUMBER 20-60L ON SOME REELS
021-1181835☀
028I-28i-500s
032-1182708☀
Used on multiple models in different quantities.
033-1191592▲
REPLACES ORIGINAL NUMBERS 33-16S, 33-TRQS ON SOME REELS
033N-1182754☘
REPLACES ORIGINAL NUMBER 33-113 ON SOME REELS
033R-1182783▲
033-113SP
Direct product replacement: 33N-113SP Clamp, Rod, KIT: (Thick) Graphite Clamp with Studs and Nuts $14.60
033C-1182773▭
033i-113SP
033N-1180382▭
033C-1191611▭
113H Fits All Versions.
033CR-200
113H Fits both Frame Posts Versions.
033C-33C-200-OLD
Antique Restoration/Collectors Item for Display Reels
113H Fits All Versions.
034-1182788▲
This is just the stud
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
034C-1182862▲
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
034-1182810▲
This can be used as a sub for the 34-49 or 34-45 if wanting a LONGER stud screw
034C-1182875▲
037-1183072
REPLACED BY PART NUMBER 37-113
Direct product replacement: 37-113 Post, Frame Post (Brushed Stainless) $5.50
062-1184028▲
113H Fits Frame Posts with a clicker and Half Frame Versions.
098-1184328▲
098-1184361▲
Stainless Steel Gear Sleeves by other manufacturers. Click link to view options.
110-1184437♦
REPLACES ORIGINAL PART NUMBER 23A-60 ON SOME REELS
149-1184702♦
Used with the graphite clamps 33-340, 33N-113, aluminum 33-TRQ, 33-TRQS and iron alloy clamp 33i-113 and 33-16VS
168-1184802☘
Fits 23-60, 23-16S knurled nuts (See details for list of reels)
168-1184800
Fits 23-60 knurled nut (see details for list of reels)
REPLACED BY PART NUMBER 168-60 or 168-TANI
Direct product replacement: 168-60 Wrench $1.30
