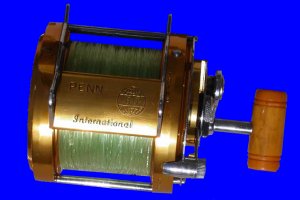

Penn 80 (Int.) Single Speed Lever Drag Reel
Model Specs:
More Info- Machine-cut, heat-treated stainless steel main and pinion gears and drag cams.
- Perfectly balanced, machined, gold anodized one-piece frame.
- Four aircraft-grade, sealed stainless steel ball bearings.
- Stainless steel reel stand.
- One-piece pinion spool and spool shaft.
- A double dog design prevents internal damage from sudden strikes and long wear-free life.
- Unique drag system.
- Loud, durable clicker. v
- Forged and machined spool and side plates.
- Adjustable pre-set drag automatically keeps drag tension within safe limits.
- Lever action drag control ranges over 120 degrees.
| Mono Cap (yds/lb) |
Braid Cap (yds/lb) |
Bearings | Max Drag | Gear Ratio | Line Retrieve |
|---|---|---|---|---|---|
| 750/80 | 4 | 2.7:1 |
Many of these parts will become unavailable in the future.
Click above for more info
1A-SPS
004-1180754☀
REPLACES ORIGINAL PART NUMBER 4-80 ON SOME REELS
004-1180757
REPLACED BY PART NUMBER 4-50
Direct product replacement: 4-50 Washer, Cam Thrust Washer $1.50
006-1180915◉
MULTI USE See Description
Used on multiple models in different quantities.
006A-50
Replaces Old #6/1-50
(CLICK FOR MORE INFO!)
006-50
REPLACED BY PART NUMBER 6/1-50 then 6A-50
(CLICK FOR MORE INFO!)
006-6/1-50ASB
REPLACED BY PART NUMBER 6A-50
(CLICK FOR MORE INFO!)
006-6/1-50HT
REPLACED BY PART NUMBER 6A-50
(CLICK FOR MORE INFO!)
007A-1181037
REPLACED BY PART NUMBER 7A-80VS
Direct product replacement: 7A-80KIT Floating Metal Drag Washer & Screw KIT $46.15
018-1181617☀
Used on multiple models in different quantities.
024-1181984
REPLACED BY PART NUMBER 24N-80
24B-1182089▭
FITS: Type [F] Bridge/Sleeve
REPLACES ORIGINAL PART NUMBER 24-80ST
024N-1181984
FITS: Type [P] Bridge/Sleeve
REPLACES ORIGINAL PART NUMBER 24-80 ON SOME REELS
031-1182655
Used on multiple models in different quantities.
Direct product replacement: 31T-20 Screw (Short) (Torx Head) $2.85
031-1182657☀
Used on multiple models in different quantities.
Direct product replacement: 31T-80 Screw, Frame $1.30
031-80VINTAGE
Used on multiple models in different quantities.
Direct product replacement: 31T-80 Screw, Frame $1.30
033R-1182780
REPLACED BY PART NUMBER 33-130ST
Direct product replacement: 33-130ST Rod Clamp, Metal, Ringed, Heavy Weight $47.35
034-1182805▲
REPLACES ORIGINAL PART NUMBER 34-116 ON SOME REELS
Used on multiple models in different quantities.
035-1182903
REPLACES ORIGINAL PART NUMBER 35/1-80 ON SOME REELS
036-50
REPLACED BY PART NUMBER 36C-50
Click for more information
Click for more info about clicker change and parts to make the assembly for these original 80 80W international reels.
036N-1183047☀
MULTI USE See Description
REPLACES ORIGINAL NUMBER 36N-50 ON SOME REELS
038-38-80
REPLACED BY PART NUMBER 38T-80
MULTI USE See Description
Direct product replacement: 38T-80 Screw, SS T15 Torx Head $1.65
039T-39T-50 [Discontinued - NLA]
REPLACED BY PART NUMBER 39-50
Used on multiple models in different quantities.
Direct product replacement: 39-50 Screw, Long, Slotted Head $0.00
055-1183878
Used on multiple models in different quantities.
Direct product replacement: 55S-80 Ball Bearing $10.60
056P-1183913☀
Used on multiple models in different quantities.
060-1183983☀
Used on multiple models in different quantities.
069B-1184125☀
Used on multiple models in different quantities.
081-1184207▲
MULTI USE See Description
Used on NEWER 80, 80W reels as well as other models
099-1184401☀
Click for installation and hook identification notes.
099-1184402☀
101-1184403☀
Used on multiple models in different quantities.
110A-1184441☀
112A-1184461
Direct product replacement: 23-6CH Screw, Gear Mounting Screw $4.95
117-1184479
LIMITED QUANTITIES AVAILABLE
117A-1184492
LIMITED QUANTITIES AVAILABLE
117DN-1184504▭
REPLACES ORIGINAL NUMBER 117D-50 ON SOME REELS
118-1184512☀
142-1184664
Direct product replacement: 142-80ST Pin, Cam Follower Pin (uses 2) $4.60
157-1184764☀
LIMITED QUANTITIES AVAILABLE
Used on multiple models in different quantities.
165-1184797☀
165-1184798☀
CUU-168-TANi▭
Aftermarket Part - Not Manf. by Penn (see details for list of reels)
Fits 23-50S, 23-60, 23-114, 23-116, 23-220, 23-FTH20LW, 23-16S knurled nuts
168-1184804☘
FITS 23-50S, 23-114, 23M-114, 23-116, 23-220, 23-FTH20LW, 23-16S, 23-60 knurled nuts
